Side Hole Drilling Machine Guide: Fast and Precise Processing for Furniture Production

In modern furniture manufacturing and woodworking, side hole drilling machines have become indispensable CNC equipment. They are primarily used to drill holes in the sides of wooden boards in panel furniture production, enabling quick and precise connections. So, how does a side hole drilling machine drill wood? What types of holes can it produce? Let's take a closer look.

1. Drilling Principle of a Side Hole Machine

Side hole drilling machines typically use pneumatic positioning combined with CNC control. The board is placed on the workbench and secured with a positioning fixture. The machine head automatically moves to the designated position according to a pre-programmed program and completes the drilling operation.

Precise Positioning: The CNC system automatically controls hole placement based on the workpiece drawing, eliminating manual errors.

Improved Efficiency: Multiple holes can be drilled in a single clamping operation, significantly increasing production speed.

Simple Operation: Simply input the board dimensions and hole location parameters, making this machine easy for ordinary workers to use.

II. Hole Types Capable of Side Hole Machining

Different furniture structures require different hole locations. Side hole machining machines can meet the following common needs:

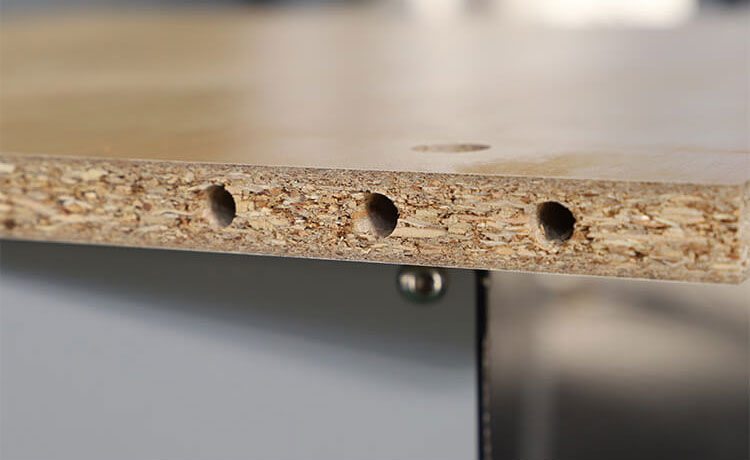

1. Three-in-one Connection Holes

Suitable for installing three-in-one connection components in panel furniture, such as wardrobes and cabinets. Precise hole placement ensures secure assembly.

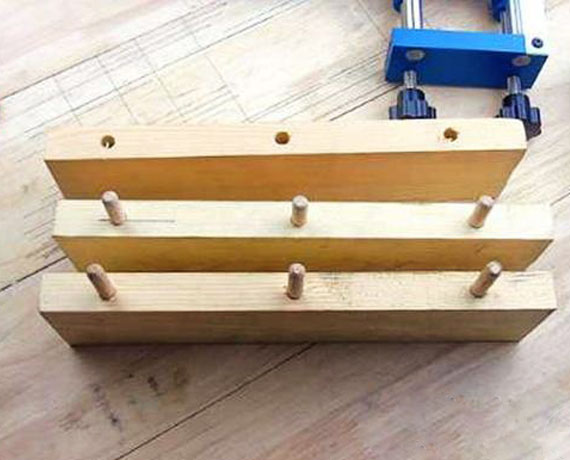

2. Dowel Holes (Round Tenon Holes)

Used for dowel joints, commonly found in cabinets, tables, and chairs, they enhance the stability of the panel.

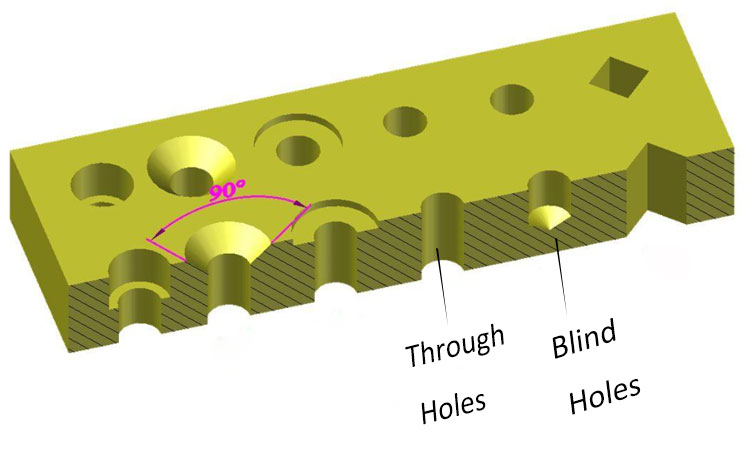

3. Through Holes and Blind Holes

Through Holes: Drilled through the panel for screws or hardware fastening.

Blind Holes: Not drilled through, maintaining a beautiful surface and suitable for applications requiring invisible installation.

4. Shelf Positioning Holes

Commonly found inside cabinets, they are used to install adjustable shelf supports, offering enhanced flexibility.

III. Key Features of Side Hole Machining

1. High Precision: The CNC system ensures the accuracy of each hole position, with an error within ±0.1mm. 2. High Efficiency: Compared to manual drilling, it is 3-5 times faster, making it suitable for mass production.

3. High Adaptability: It can process a variety of board materials, including MDF, particleboard, solid wood, and multi-layer boards.

4. Stability and Durability: The equipment offers stable performance and maintains consistent processing quality even after long periods of operation.

5. High Level of Automation: Some equipment is equipped with an automatic barcode scanning system that automatically identifies processing steps based on barcode information, reducing manual intervention.

IV. Application Areas

1.Panel Furniture (wardrobes, cabinets, shoe cabinets)

2.Office Furniture (desks, partitions)

3.Woodworking Decoration (display cabinets, custom furniture)

The widespread use of side-hole drilling machines has enabled furniture manufacturers to achieve standardization, scale, and automation, enhancing their overall competitiveness.

Conclusion

As a key piece of woodworking equipment, side-hole drilling machines have become an indispensable tool in panel furniture manufacturing due to their high precision, high efficiency, and versatility. Whether it's a three-in-one connection hole, a wood dowel hole, or a veneer hole, a side hole puncher can easily complete the task, providing a strong guarantee for the stability and aesthetics of furniture structures. For woodworking shops and furniture manufacturers, choosing a suitable side hole puncher can not only improve production efficiency but also significantly reduce labor costs.
