What kind of matching schemes are there for the whole house custom panel furniture CNC cutting machine?

With the popularity of whole-house custom panel furniture, traditional engraving machines have been unable to meet the cutting and engraving function of diversified furniture, and the emergence of CNC cutting machines just satisfies the cutting and processing of whole-house custom panel furniture. So what kinds of cutting machines are there for whole-house custom panel furniture? Superstar CNC cutting machine manufacturers share with you.

The introduction of several models of front-end CNC cutting machine equipment is as follows:

1. Double-process row drilling and cutting machine: a model composed of two main shafts and a 5+4 row drilling machine. Two spindles, one is used for cutting material, the other is used for slotting, and the drilling bag is used for drilling holes of different specifications, mainly used for processing cabinet-type panel furniture such as cabinets and wardrobes.

2. Four axis CNC cutting machine: This machine has four spindles, which can automatically switch the spindles to punch, notch and cut the sheet. The processing efficiency is three to four times higher than that of the single-head CNC cutting machine. The equipment can be equipped with an automatic loading and unloading device, which eliminates the need for manual board picking and is more efficient.

3. Double-station four-process CNC cutting machine: This equipment has two work surfaces, which can put two boards at the same time, and the efficiency is about 1.5 times higher than that of the ordinary four-process cutting machine.

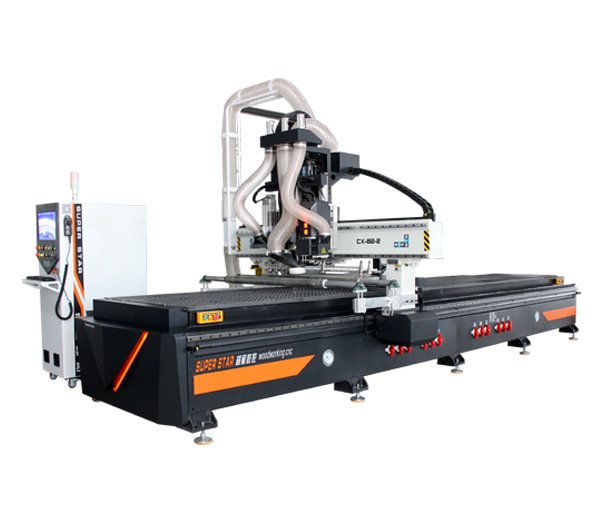

4. CNC woodworking machining center: This is generally also called a disc tool changing machining center, a 9kw spindle and a tool magazine. The capacity of the tool magazine is generally 8-12 knives, of course, 16 or 20 knives can be customized. Whether it is cutting, grooving or punching, the tool can be automatically changed, eliminating the need for manual tool changing procedures, which is very suitable for door type processing.

Introduction of back-end CNC drilling and machining center equipment:

1. The CNC side hole machine is a special equipment that only punches side holes. The front-end cutting machine needs to cut material, punch vertical holes and slot. It belongs to an economical transitional punching device.

2. Five-sided drilling machine can automatically identify all holes and slots for one-time five-sided drilling and slotting through wireless scanning, automatic positioning, automatic clamping, automatic feeding into the processing area during processing, and automatic output after processing. materials, manual sorting, high work efficiency, an average processing of about 260 square meters per day, low labor intensity, and double the output compared with traditional connections.

3. One-time six-sided drilling machine and front and back slotting for six-sided drilling and automatic identification of all holes and slots through wireless scanning code,One-time automatic clamping and positioning in the processing process, no need to turn the plate, and it is automatically sent to the processing area. After the processing is completed, the material is automatically discharged and manually sorted. The work efficiency is high, and an average of more than 300 square meters is processed in one day.

In general, there are four main models of CNC cutting machine for whole-house custom panel furniture. Although the functions are similar, there will be differences in specific applications. There are also three models on the back-end punching. How to choose the whole-house custom panel furniture cutting machine and punching equipment must be carefully considered in combination with your own actual situation, production volume, investment, factory site, and later development.
