Machine Debugging Skills Sharing: Edge Banding Machine Debugging Method

Proper setup and adjustment of an automatic edge banding machine are essential to ensure smooth operation, high processing precision, and excellent edge banding quality. Here’s a step-by-step guide:

1. Initial Inspection and Preparation

Power Supply: Ensure the voltage matches the machine’s requirements and the grounding is secure.

Air Supply: Connect compressed air; ensure the pressure is stable (typically 0.6–0.8 MPa).

Cleaning: Remove dust or debris from transport and storage, especially from the transmission parts and guide rails.

2. Adjustment of Functional Units

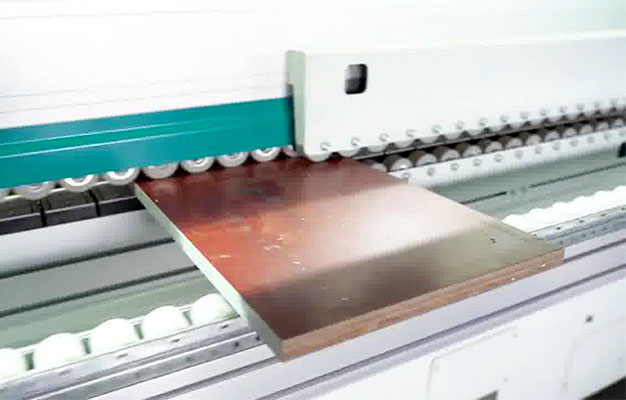

Feeding System

Adjust the chain tension for smooth operation.

Set the pressure beam height to match the thickness of the workpiece.

Pre-Milling Unit (if equipped)

Adjust the milling cutters based on panel thickness and edge band width.

Test for smoothness and precision of the milled edge.

Gluing System

Set the glue pot temperature (typically around 180°C for EVA glue).

Ensure an even glue coating—no breaks or excess glue lines.

Make sure the glue roller fully contacts the panel edge.

Edge Tape Pressing Unit

Adjust the pressing rollers to apply even pressure.

Make sure the edge tape sticks firmly without misalignment.

End Trimming Unit

Set trimming timing based on the panel’s length.

Align the saw blades vertically for clean cuts.

Fine Trimming Unit

Adjust upper and lower cutters to trim flush with the panel surface.

Avoid trimming too deep or too shallow.

Scraping Unit (if available)

Fine-tune the scraping angle to remove cutter marks.

Do not scrape too aggressively to prevent damage.

Buffing Unit (if available)

Adjust the angle and pressure of buffing wheels to create a smooth, polished finish.

3. Test Run and Final Adjustments

Run test pieces through the machine.

Inspect the edge banding quality and fine-tune each module as needed.

Perform continuous tests to ensure consistency and reliability.

4. Safety and Maintenance Tips

Always turn off the power or use the emergency stop when making adjustments.

Clean glue pots, rollers, and cutting tools regularly.

Check tool sharpness and inspect for worn parts frequently.
