What Is The Accuracy of A CNC Machine, And How Is It Calculated?

The accuracy of a CNC machine refers to its ability to produce parts that meet specified dimensions and tolerances. It is influenced by various factors, including machine design, operational conditions, and material properties.

Types of Accuracy

1. Positional Accuracy: How close the machine's tool can position itself to a commanded point.

2. Repeatability: The ability of the machine to return to a specific position repeatedly under the same conditions.

3. Resolution: The smallest movement increment that the machine can detect or execute.

Typical Accuracy Ranges

High-precision CNC machines: Accuracy within ±0.002 mm (2 microns).

Standard CNC machines: Accuracy typically ranges from ±0.01 mm to ±0.05 mm.

How Accuracy is Calculated

1. Positional Error Measurement:

l Use a laser interferometer to measure deviations between the commanded and actual positions of the machine across the working envelope.

l Accuracy = \( \text{Desired Position} - \text{Actual Position} \).

2. Repeatability Testing:

l Move the tool to a specific position multiple times under identical conditions and measure deviations.

l Repeatability = \( \text{Range of Deviations} \).

3. Backlash and Compensation:

l Backlash, the slack in mechanical systems, is measured by moving the tool in opposite directions and noting the discrepancy.

l It is accounted for in accuracy calculations.

Factors Influencing Accuracy

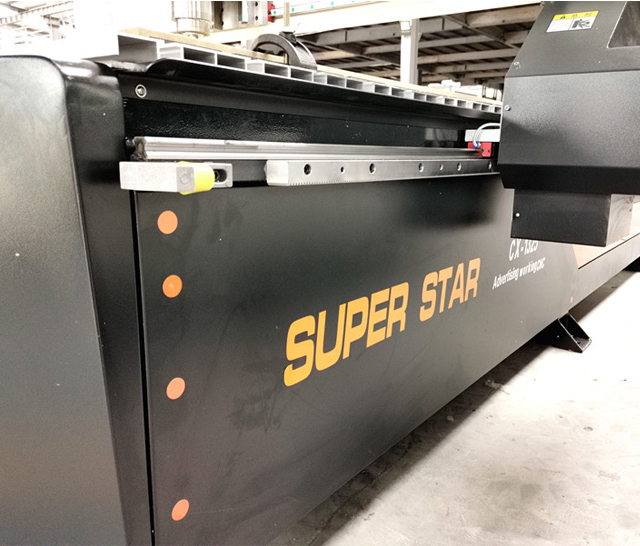

• Machine Components: Precision of lead screws, linear guides, and servo motors.

• Environmental Factors: Temperature fluctuations and vibrations.

• Programming and Calibration: Proper toolpath programming and machine calibration reduce errors.

Improving Accuracy

1. Regular maintenance and calibration.

2. Using high-quality tooling and materials.

3. Minimizing environmental impacts like heat or vibration.

Understanding these parameters helps manufacturers choose the right CNC machine for their specific needs and maintain optimal performance. If you'd like details on specific measurement techniques or tools, let me know!
