Multi-function engraving machine plus rotating shaft for Function and performance characteristics

The motor cable of the rotary axis can be used by plugging it into the driver of the X or Y axis. Before using it, you need to modify the motor parameters of the rotary axis. If the parameters are not modified, the size will be deformed.

The function of multi-function engraving machine plus rotating shaft:

1. The engraving machine calculates the rotary engraving path without expanding the surface.

2. There is no need to rotate the work piece repeatedly, and the tool path calculation is completed at one time.

3. Reduce the finishing allowance, and the tool path can be roughed in layers.

4. Realize local rotation processing, and can set the angle range and length range.

5. Affected by the accuracy of the fixture, the processing of irregular rotating work pieces usually adopts multi-faceted rotary positioning processing. There are always seams between different machine directions.

6. There is no positioning mark. The rotary engraving process of the rotary axis adopts the overall method of the rotary axis, and the cnc router machine woodworking generates an automatically closed rotary engraving processing path.

The performance characteristics of the rotating shaft of the lifting platform of the multi-function engraving machine:

1. The body and frame of the engraving machine are welded with thick-walled square tubes, and are subjected to stress relief treatment, with good rigidity and no deformation.

2. The Y-axis is driven by dual motors, driven by high-precision gears and racks, with relatively large power and stable operation.

3. The lifting platform adopts a 2KW three-phase asynchronous motor and a turbine worm gearbox, which drives the large-pitch sprocket and four large-diameter trapezoidal screws, and adds four large-diameter guiding light bars to move up and down, which is stable and reliable. The liter weight can reach 1.5 tons.

4. The rotator adopts machine tool chuck (positive and negative claws) and rear end thimble. Square linear guides are used for the movement of the rear thimble, and the concentricity is extremely precise. The chassis is finished by integral casting. The diameter of the work piece can be up to 400 mm, the length can be up to 1200 mm, the weight of the work piece can be up to 56 kg, and the work piece balance roller is equipped.

5. A stainless steel water tank can be selected on the lifting platform for processing stone materials, and an automatic water supply device is also provided.

6. Two 4012 type rotators can be placed on the equipment platform. When the cylindrical work piece is not processed, the rotator can be removed for plane engraving. The thickness of the plane work piece can reach 700 mm.

The above introduces the functions, performance characteristics and common methods of multi-function engraving machine plus rotating shaft. I hope it will be helpful to everyone. If you find it useful, you can pay attention to Superstar CNC. We will provide you with more information about engraving machines. Little knowledge~

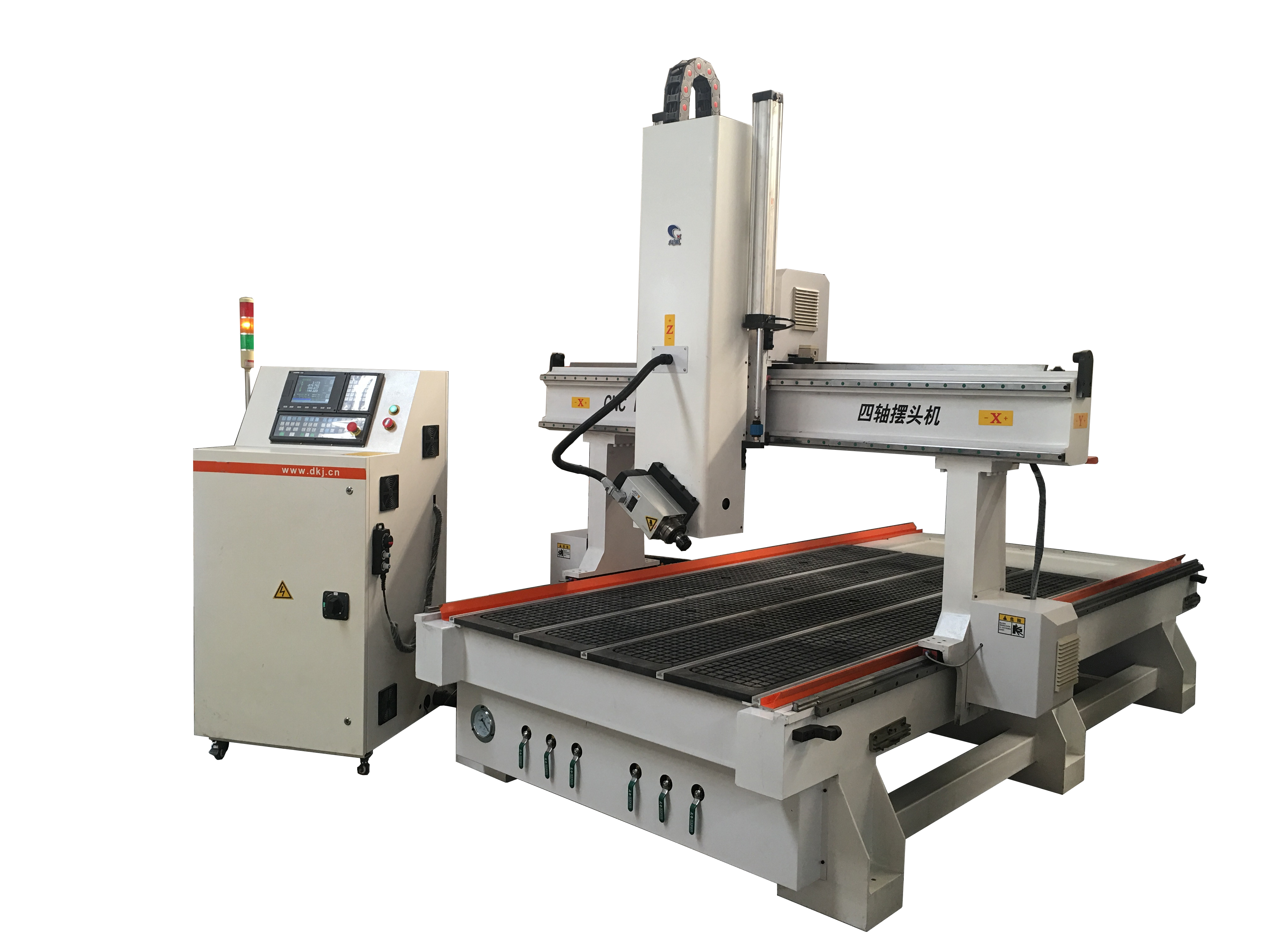

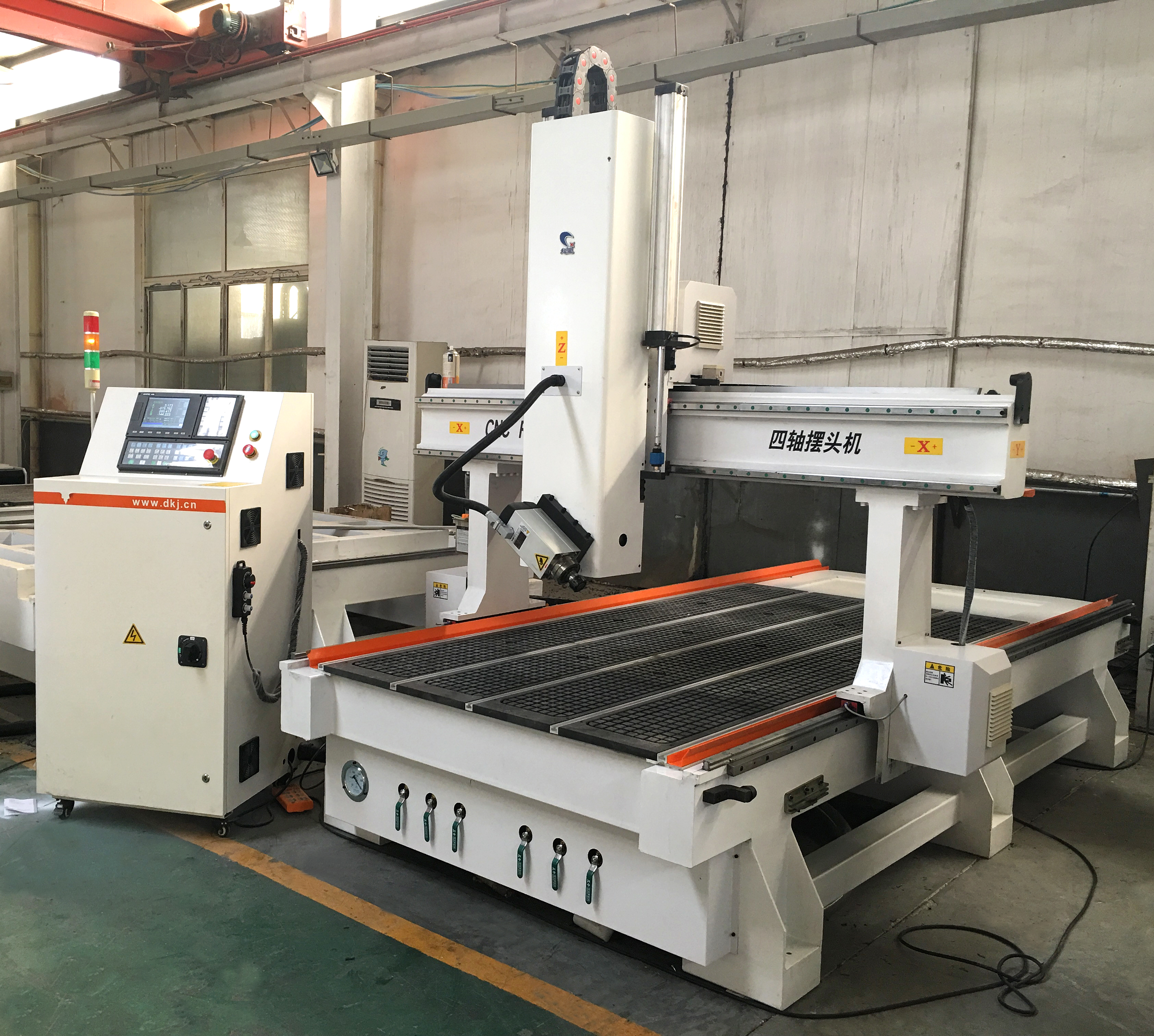

Superstar CNC recommends products for you：Superstar CX-3D 4 AXIS CNC 90 Degree Rotary Engraving Machine
