Multi-spindle CNC Machine at Pakistan Exhibition Online

In June our company held an online show in Pakistan. This exhibition shows our series of woodworking machines: hot selling 1325 size woodworking engraving machine, high performance straight tools changer router, multi-spindle CNC machine, disc tools changer router, side hole drilling machine, panel saw, edge banding machine, hinge drill, laminating machine. Today we are going to introduce one of our star products: the multi-spindle CNC machine.

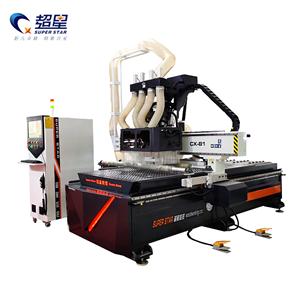

Specifications of Multi-spindle CNC Machine

Product model	CX-B1
XYZ working area	1300mm*2500mm*200mm
Traveling Accuracy	±0.05mm
Positioning Accuracy	±0.05mm
Table Surface	vacuum table with vacuum pump
X,Y ,Z Structure	XY gear wheel, Z ball screw
Max. Rapid Travel Rate	50000mm/min
Max. Working Speed	25000mm/min
Spindle	4.5/6KW Air cooling spindle*4
Spindle Speed	18000r/min
Motor	Servo Motors and drivers
Working voltage	AC 380V/50HZ
Control System	LNC
Guide rail	25 Square rail (TAIWAN TBI/HIWIN )

• The Multi-spindle CNC Machine adopts 4.5kw/6kw air-cooled spindle, full servo drive system. original electrical components and other components, with stable performance.

• Vacuum adsorption table can strongly absorb materials of different areas. The processing of small plates has no displacement, the processing surface is smooth, and the plate size is accurate.

• Taiwan LNC control system: support the international standard G-codes and compatible with the G codes of FANUC. Provide multiple functions to simply programming operation. Be able to control servo motors installing absolute encoders. Open style PLC makes second development convenient.

• Electric oiling: automatic oiling can be set according to the time, to ensure the lubrication of slider lead screw guide rail, and extend the service life.



• Transmission of penumatic 4 spindles ATC cnc: XY axies adopts 25 square rail guide, smooth operation, high precision, long life. Axis ball screw structure, the machine head runs stably and powerfully, and the spindle will not drop when the power off.

• The limit switch is used to control the travel and limit protection of mechanical equipment, prevent engraving failure caused by exceeding the processing range during engraving.

About JINSHENGXING Machinery

Superstar CNC JINSHENGXING Machinery is the leading CNC router designer, manufacturer and exporter since 2003.  We have over 400 professional staffs and over 70,000 square meters factory. Our high quality innovative products include ATC CNC routers, CNC engraving machines and CNC carving machines, etc. OEM and ODM are available. Our annual CNC machine output is over 12,000 sets, which had been exported to over 136 countries.
