Product Overview

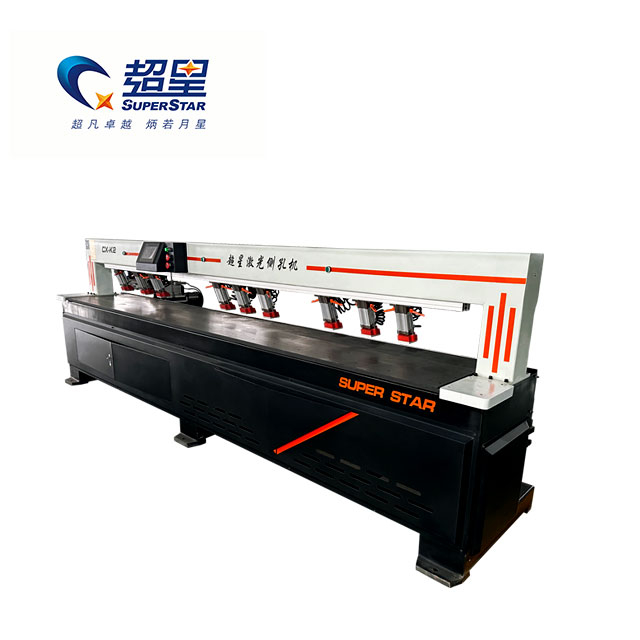

The Superstar CX-1625 is engineered to solve the horizontal drilling bottleneck in modern panel furniture manufacturing. Traditional vertical CNC routers cannot drill the edges of wood panels, requiring secondary horizontal processing. This machine utilizes an advanced laser infrared system to automatically scan the panel and pinpoint the exact drilling locations. Built on a robust frame weighing 400 kg, it ensures stable, vibration-free operation during high-speed production.
Core Advantages
Laser Infrared Positioning: Features an Omron laser sensor that automatically detects hole positions or scans barcodes, eliminating the need for complex programming or manual alignment.
High-Speed Execution: Powered by a 3.5KW HQD air-cooled spindle and precise servo motors, it drills multi-hole configurations quickly and accurately with an error margin within ±0.1mm.
Simplified Operation: The PLC touch screen control system features a humanized interface that is easy to learn. Operators can run the machine with minimal training, entirely removing the reliance on highly skilled woodworking artisans.
Seamless Production Integration: Pairs perfectly with CNC cutting machines and edge banders to create an uninterrupted, high-efficiency panel furniture workflow.
Technical Parameters
Feature | Specification |
Model | CX-1625 |
Working Size | 1500 × 2600 mm |
Spindle Motor | HQD 3.5 KW Air Cooling |
Laser Sensor | Omron Infrared Ray |
Drive System | Servo Motor |
Inverter | 3.7 KW Superstar |
Guide Rails | Taiwan Square Guide Rail |
Control System | PLC Touch Screen (e.g., Xinjie) |
Machine Weight | 400 KG |
Detailed Component Analysis
HQD Air-Cooled Spindle: The 3.5KW spindle provides the necessary torque to drill clean, tear-out-free holes in dense materials like MDF and multi-layer boards.
Pneumatic Clamping System: Utilizes a positioning alloy plate and cylinder rubber pressing feet to secure the panel firmly against the 1500x2600mm mesa, preventing material shifting during high-speed lateral drilling.
Precision Transmission: Combines Taiwan guide rails with a helical rack and pinion driving system to guarantee smooth, low-friction movement and long service life.
Applicable Industries and Materials
Target Applications: Mass production of panel furniture, custom wardrobes, kitchen cabinets, and modular office desks.
Supported Hole Types: Drills dowel holes, blind holes for adjustable shelves, and 3-in-1 connector holes essential for invisible furniture assembly.
Compatible Materials: MDF, particleboard, chipboard, multi-layer solid wood boards, and standard wooden panels.
Why Choose Superstar CNC?
Economical Automation: The CX-1625 provides high-end automated features at a factory-direct price, drastically lowering the barrier to entry for automated furniture production.
Durable Construction: Built with premium components like Taiwan guide rails and industrial servo motors, ensuring reliable performance across multiple shifts.
Global Support: Every machine undergoes rigorous outgoing inspections and comes with a 1-year warranty, machinery test reports, and dedicated video technical support.
Frequently Asked Questions
Q: Can this machine drill both horizontal and vertical holes?
A: No, this machine is specifically designed for horizontal (side) hole drilling. Vertical holes are typically handled by your primary CNC nesting router before the panel reaches this machine.
Q: Does the operator need to input CNC code manually?
A: No, the Omron laser infrared sensor automatically scans the panel edge to trigger the drilling sequence, or the operator can use the barcode scanning system to load the exact hole parameters instantly via the PLC touch screen.
Q: What materials can the CX-1625 process?
A: It is highly adaptable and processes a wide range of wood materials used in panel furniture, including MDF, particleboard, solid wood, and plywood.
