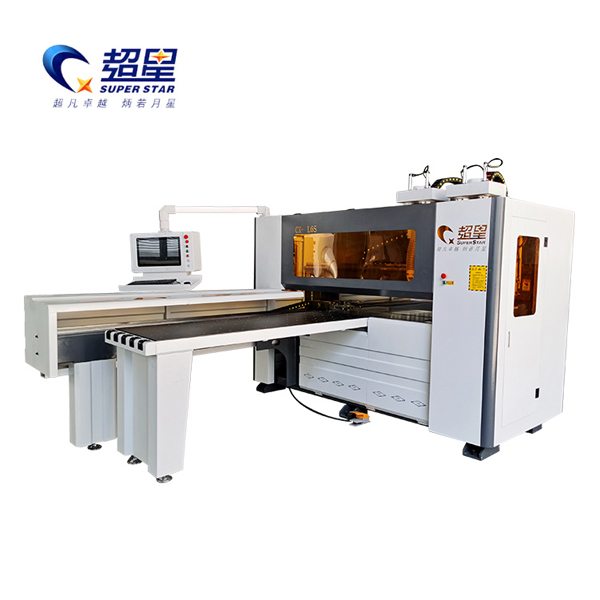

Product Overview
The Superstar CX-612 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the powerhouse of modern panel furniture production lines. Traditional CNC drilling requires multiple machines or constant manual panel flipping to bore holes for cam locks, dowels, and hinges. The CX-612 eliminates this bottleneck.
Built on a precision-welded, heavy-duty frame that has undergone high-temperature tempering to remove internal stress, the CX-612 ensures absolute rigidity and zero vibration at high speeds. With the ability to form multiple drilling center workstations for streamlined operations, it perfectly processes particle board, multi-layer solid wood, and blockboard with micrometer precision.
Core Advantages
True Six-Sided Machining: The machine automatically drills holes on the top, bottom, and all four side edges, while simultaneously slotting the front and back faces in a single continuous operation. No manual panel flipping is required.
High-Speed "Double Drill Bag" Mode: The advanced 2+1 drill block configuration allows multiple holes to be bored simultaneously, increasing overall production efficiency by 30% compared to standard single-block machines.
Heavy-Duty Stress-Relieved Frame: The bed is laser-cut, precision-welded, and processed by a CNC gantry machining center. It undergoes high-temperature aging treatment to guarantee long-term stability and eliminate structural distortion.
Premium Component Ecosystem: Powered by Taiwan LNC controls, Inovance Servo motors, Taiwan ANDE guide rails, and German grinding racks, ensuring smooth, high-speed, and fault-free operation.
Technical Parameters
Feature | Specification (CX-612A / CX-612B) |
Model Options | CX-612A / CX-612B |
Working Size (Max) | 2800 mm × 1200 mm |
Working Size (Min) | 200 mm × 50 mm |
Workpiece Thickness | 12 mm – 30 mm |
X-Axis Grip Guide Rail | 5400 mm |
Y-Axis / Z-Axis Travel | 1200 mm / 150 mm |
Up Drilling (Vertical) | 9 Drills (CX-612A) / 9 Drills × 2 (CX-612B) |
Below Drilling (Vertical) | 6 Drills |
Up Drilling (Horizontal) | 4 Drills (CX-612A) / 4 Drills × 2 (CX-612B) |
Spindle Power | HQD 380V 4KW × 2 Sets |
Control System | Taiwan LNC |
Servo Motors | Inovance Servo Motors |
CAM Software | Higerman |
Guide Rails & Ball Screw | Taiwan ANDE |
Reducer / Inverter | Shimpo / Inovance (380V 4KW × 2) |
Machine Dimensions | 5400 × 2750 × 2200 mm |

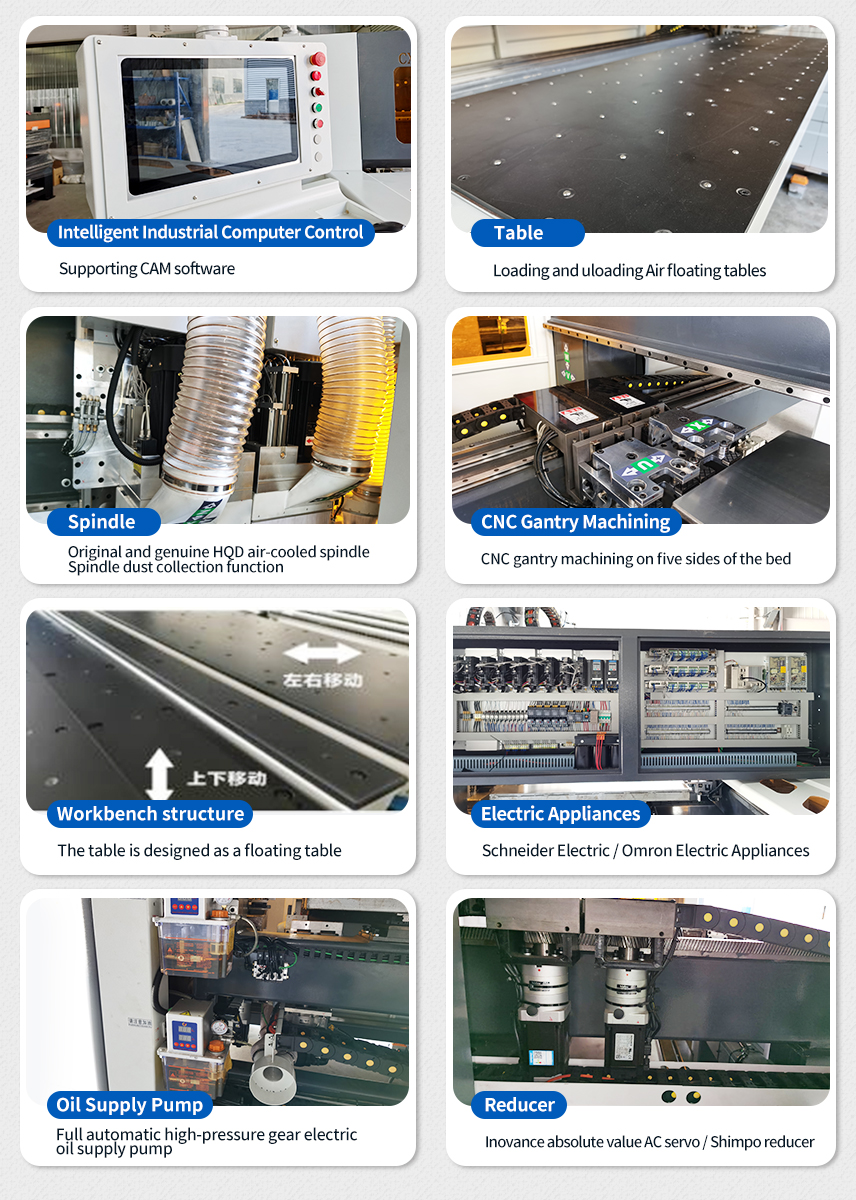

Detailed Configuration & Component Analysis
Equipped with two robust 4KW HQD spindles, the machine provides extreme torque for fast, clean routing and slotting on dense materials like solid wood and heavy particle board, preventing bit deflection and tear-out.
The integration of the Taiwan LNC system and Higerman software ensures flawless translation of CAD designs into rapid machine movements. The software automatically calculates the fastest drilling paths, reducing idle travel time between holes.
Combining Inovance servo motors with Shimpo reducers, German grinding racks, and Taiwan ANDE ball screws, the CX-612 achieves incredible max positioning speeds (X/Y axis at 54,000 r/min logic equivalents) without sacrificing pinpoint accuracy.
Applicable Industries & Materials
Target Industries: Panel furniture manufacturing, whole-house customized furniture (wardrobes, kitchen cabinets, bookshelves), and high-volume commercial panel processing.
Compatible Materials: Particle Board, Chipboard, Multi-layer Solid Wood Board (Plywood), Blockboard, MDF, and Solid Wood Panels.
Why Choose Superstar CNC?
Industrial-Grade Manufacturing: Based in Jinan, China, we specialize in heavy-duty machinery. The CX-612’s tempered frame is built to run 24/7 in demanding factory environments without losing calibration.
Complete Production Line Integration: The CX-612 pairs perfectly with our CNC Nesting Routers and Automatic Edge Banders, allowing you to build a fully automated, synchronized panel furniture factory.
Global Reliability: With exports to over 114 countries, we provide top-tier English technical support, installation guidance, and utilize globally sourced, easily replaceable components (Inovance, HQD, Shimpo).
Frequently Asked Questions
Q: What is the difference between the CX-612A and CX-612B models?
A: The primary difference is the drilling capacity. The CX-612B features double the top vertical drills (9×2) and double the top horizontal drills (4×2) compared to the CX-612A. The "B" model is ideal for factories needing the absolute maximum drilling speed for complex, hole-heavy cabinet designs.
Q: Does the machine require me to manually flip the board to drill the bottom holes?
A: No. The machine is a true six-sided driller. It is equipped with a dedicated lower drill bank (6 vertical drills) that machines the bottom of the panel simultaneously while the top drills are working.
Q: What is the smallest piece of wood this machine can process?
A: The highly precise gripping and clamping system can secure and accurately drill small panel components down to 200mm in length and 50mm in width, perfect for small drawer parts and cabinet dividers.
Automate Your Drilling, Multiply Your Output
Eliminate manual flipping, reduce human error, and speed up your assembly line. Upgrade your furniture factory with the Superstar CX-612 Automatic Six-Sided CNC Drilling Machine.
