Product Overview

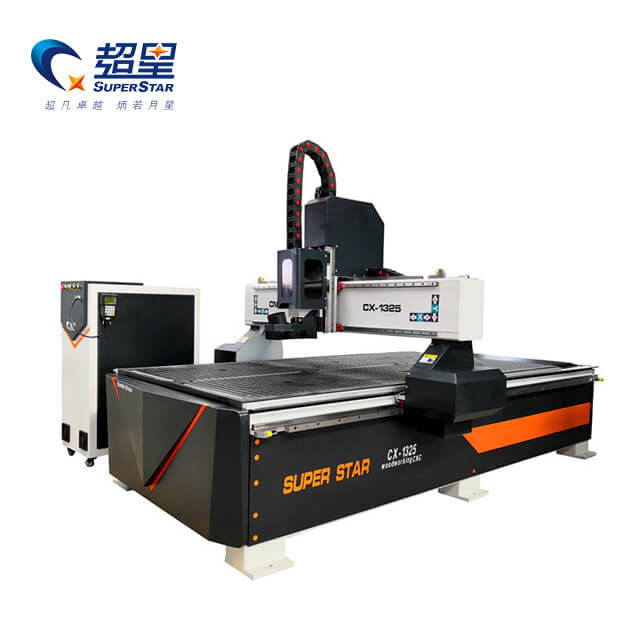

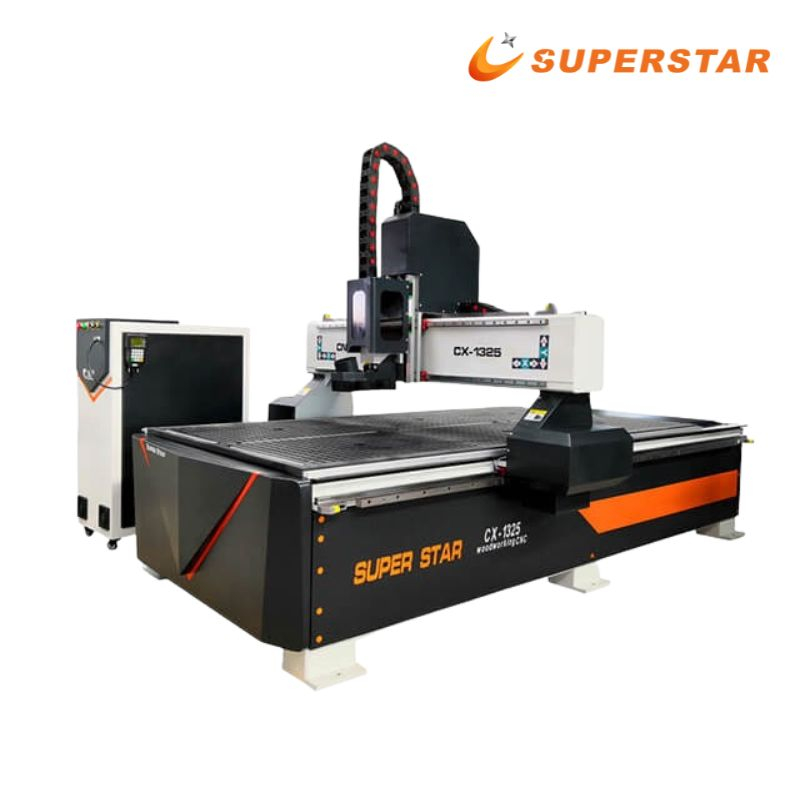

The Superstar CX-1325 Single Head CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the essential workhorse of the modern woodworking and advertising industries. Acknowledged globally as the industry-standard "4x8 router," it bridges the gap between affordable entry-level machines and high-end automated centers, providing maximum ROI for furniture factories and sign shops alike.
The core strength of the CX-1325 lies in its heavy-duty construction. The entire machine body is constructed from 12mm industrial-class thick welded steel that undergoes a strict high-temperature tempering and aging treatment. This guarantees absolute structural rigidity, absorbing the intense vibrations generated when routing dense hardwoods at high speeds, and ensuring your cuts remain flawlessly square and chatter-free over years of continuous production. It also features a V-industrial LED design, giving the machine a sleek, modern aesthetic on your factory floor.
Core Advantages
Industry-Standard Work Area: The 1300mm x 2500mm bed size is perfectly calibrated to process standard 4x8 foot sheets of plywood, MDF, and acrylic, minimizing material waste and maximizing factory throughput.
Intuitive DSP Control System: Operates via a handheld DSP offline controller. This system does not require a dedicated computer connection on the shop floor, making it incredibly simple, convenient, and highly resistant to dust and electrical interference.
High-Adhesion Vacuum Table: Features a multi-zone vacuum adsorption table capable of strongly absorbing materials of different surface areas. This instantly secures large, flat sheets of MDF and plywood without the need for physical edge clamps.
Precision Linear Motion: The machine utilizes high-precision Taiwan TBI square linear guide rails (25mm configuration). These widened rails offer a massive contact surface, delivering exceptional load-bearing capacity and ultra-smooth gantry movement compared to cheaper round rails.
Technical Parameters
Feature | Specification |
Model | CX-1325 Single Head Wood CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 3.0 KW Water Cooling Spindle |
Control System | DSP Control System |
Drive Motors | Stepper Driving (Servo Driver Optional) |
Guide Rails | Taiwan TBI 25mm Square Linear Guide Rails |
Working Table | Vacuum Adsorption Table |
Machine Body | 12mm Industrial Class Thick Steel Weld Body |
Aesthetics | V-Industrial LED Design |
Detailed Component Analysis
Provides significant cutting force and high torque at lower RPMs, essential for deep 3D relief carving in hardwoods. The water-cooling system ensures the spindle can run continuously for hours during long, intricate 3D sculpting jobs without overheating.
The machine comes standard with highly reliable Stepper motors and drivers, providing excellent torque and accuracy at an economical price point. For factories requiring rapid acceleration and closed-loop feedback, the system is fully upgradeable to advanced Servo drives.
Applicable Industries & Materials
Furniture Manufacturing: Routing, sizing, and grooving for custom cabinets, wardrobes, beds, and modular office desks.
Wooden Door Production: Deep 3D relief carving and precision milling of lock mortises and hinge plates on solid wood and MDF doors.
Advertising & Exhibits: Cutting and engraving of large-format acrylic letters, PVC signboards, and exhibition displays.
Compatible Materials: Solid Hardwood, MDF, Plywood, Particleboard, Melamine, Acrylic, PVC, ABS, and high-density plastics.
Why Choose Superstar CNC?
Proven Global Track Record: As our flagship model, the CX-1325 has been exported globally. It is renowned for its ease of use, extreme durability, and accessibility of spare parts.
Factory-Direct Customization: Because we manufacture the machines from the ground up, we can customize the spindle power, motor type (Stepper vs. Servo), and table structure to perfectly match your factory's specific production requirements and budget.
Frequently Asked Questions (FAQ)
Q: Does this machine require a computer to operate?
A: No. The machine uses the DSP offline control system. You create your G-code design on your office computer, save it to a USB drive, and plug the USB directly into the machine's handheld controller.
Q: Does the vacuum table require me to use physical clamps?
A: No. The powerful vacuum adsorption table pulls flat boards (like MDF and plywood) securely against the work surface. This eliminates the need for mechanical edge clamps, allowing the spindle to process the entire board without obstruction.
Q: Can this machine perform 3D relief carving?
A: Yes. The control system smoothly interpolates the X, Y, and Z axes simultaneously. Combined with the correct V-bit or ball-nose tool, the machine excels at carving deep, intricate 3D reliefs on solid wood doors and panels.
