How to Choose the Right Multi-Spindle & Rotary CNC Router: A Buying Guide

Investing in a CNC router is a significant decision. But when your business grows from making one custom piece to producing hundreds of identical items—like stair balusters, chair legs, or relief panels—a standard machine becomes a bottleneck.

You need a force multiplier. You need a Multi-Spindle & Rotary CNC Router.

However, with options ranging from 2 to 12 spindles and various rotary sizes, how do you choose the right one? This guide breaks down the critical factors to ensure your investment delivers the highest Return on Investment (ROI).

Key Considerations: What to Look For

Before asking "How much does it cost?", you must ask "What can it do?". Here are the technical specs that define performance.

1. Spindle Count & Power (The Output Factor)

• Quantity: How many parts do you need per day? A 4-spindle machine quadruples your output compared to a single head. Common configurations are 4, 6, 8, or even 10 spindles.

• Power: For deep 3D carving in hardwoods (Oak, Teak), choose at least 2.2kW or 3.0kW water-cooled spindles. Water cooling is essential for long production runs (e.g., 10-hour shifts) to prevent overheating.

2. Rotary Axis Dimensions (The Capacity Factor)

If you are making cylindrical items (statues, legs), the Diameter and Length are non-negotiable constraints.

• Diameter: Standard rotary devices handle 200mm or 300mm diameters. If you plan to carve large Roman columns, you may need a custom 400mm+ setup.

• Removability: Ask if the rotary device is removable. A Multi-Spindle & Rotary CNC Router with a removable rotary axis allows you to put a flat table back on for cutting 2D sheets, giving you two machines in one.

3. Controller System (The Brain)

• 3-Axis vs. 4-Axis Linkage: This is crucial.

  • 3-Axis (Indexing): Good for simple turning.

  • 4-Axis Simultaneous: Essential for complex, spiraling designs where the cutter moves along X/Z while the A-axis rotates. Ensure the controller (like Syntec or DSP A18) supports true 4-axis interpolation.

4. Machine Structure (The Foundation)

With multiple spindles, the gantry carries significant weight. Look for a machine with a Heavy-Duty Steel Frame and 25mm+ Linear Guides. A light frame will vibrate under the load of 8 spindles, ruining the finish of your carvings.

Market Recommendations: Popular Configurations

Based on different production needs, here are the most popular setups from our Multi-Spindle & Rotary CNC Router Product List.

Type A: The "Furniture Leg Specialist" (4-8 Rotary Axes)

• Best For: Staircases, sofa legs, table legs.

• Features: Usually equipped with 4 to 8 rotary attachments linked together. The table might be sunken or removed to accommodate the turning diameter.

• Advantage: Maximum throughput for cylindrical parts.

Type B: The "Relief Carving Expert" (Multi-Head Flat Bed)

• Best For: 3D wall panels, screen doors, cabinet doors.

• Features: A large flat vacuum table with 4 to 8 spindles mounted on one gantry.

• Advantage: Perfect for batch processing flat sheet materials.

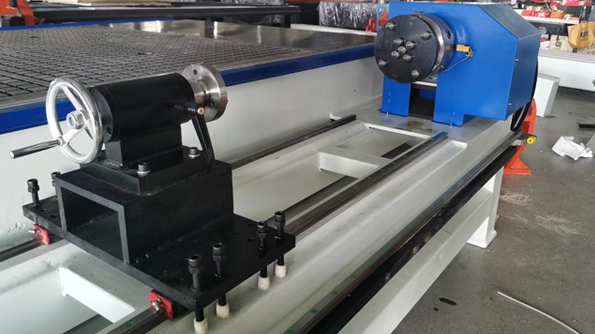

Type C: The "Hybrid" (Flat + Rotary Side)

• Best For: Versatile workshops.

• Features: A standard flat bed for sheet cutting, with a rotary device mounted on the side of the machine.

• Advantage: You don't lose table space. You can cut a cabinet box on the table and carve the legs on the side.

Conclusion: Making the Smart Choice

Choosing the right Multi-Spindle & Rotary CNC Router is about balancing your current production volume with future growth. While a multi-head machine costs more upfront than a standard router, the labor savings are immense. One operator can oversee the production of 8 parts simultaneously.

Don't settle for a generic machine. Analyze your product dimensions, calculate your daily volume targets, and then explore the specialized models in our Multi-Spindle & Rotary CNC Router Product List to find your perfect match.

FAQ: Frequently Asked Questions

Q1: Does a multi-spindle machine require special software?

A: The design software (CAD) is the same (e.g., ArtCAM, Rhino, Aspire). The difference is in the CAM (toolpath) settings. You typically program for one part, and the machine controller duplicates that motion across all spindles.

Q2: What happens if one spindle fails?

A: High-quality machines allow you to disable individual spindles via the controller or a switch. You can continue production with the remaining spindles while waiting for a replacement motor.

Q3: Can I adjust the distance between the spindles?

A: Yes, but it is usually a manual adjustment. You can slide the spindle mounts along the gantry to accommodate wider or narrower workpieces.

Q4: Is it hard to learn 4-axis machining?

A: It requires a slight learning curve compared to 3-axis flat cutting, specifically in understanding how to "wrap" a 2D drawing around a cylinder in the software. However, we provide training and tutorials to help you master it quickly.
