Cabinet making and wardrobe production are among the most demanding applications for a CNC router. A typical wardrobe side panel requires profile routing, hinge cup drilling, shelf pin hole rows, and edge chamfering — four separate tool operations on a single panel, repeated across hundreds of panels per week. A kitchen cabinet door may add decorative V-carving or raised panel profiling to that list.

On a standard CNC router, each of those tool operations requires a manual stop. On an ATC machine, the spindle moves through all of them automatically, without the operator touching the machine between operations.

That difference — which we covered in detail in our guide on ATC CNC router vs standard CNC router — is why ATC has become the production standard for serious cabinet and wardrobe manufacturers. The question for most buyers is no longer whether to choose ATC, but which ATC configuration is actually right for their factory.

This guide answers that question directly. It covers every specification that matters for cabinet making and wardrobe production — spindle power, tool magazine size, drilling units, vacuum table design, control system, and working area — and maps those specifications to the production scenarios where each configuration performs best. Whether you are running a 10-person custom cabinet shop or a 100-person wardrobe factory, this guide will help you identify the right ATC configuration for your operation.

Why Cabinet Making and Wardrobe Production Demand ATC

Before comparing configurations, it is worth being specific about why cabinet and wardrobe production is the application where ATC delivers its clearest and fastest return.

The Multi-Tool Reality of Cabinet Production

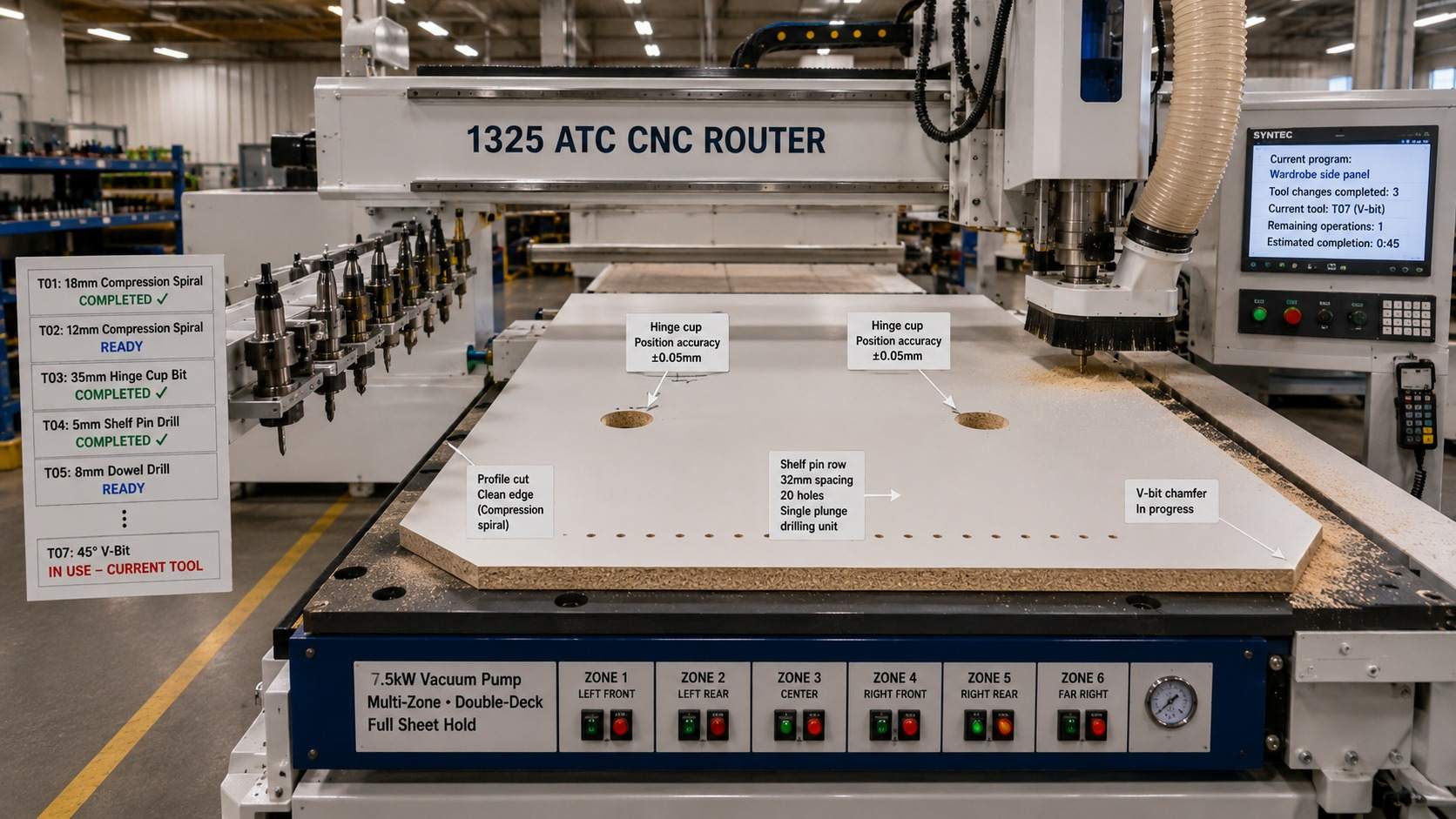

A complete wardrobe or kitchen cabinet job is not a single-tool operation. Consider the tool requirements for a standard wardrobe production run:

Wardrobe side panel:

• 18mm compression spiral — full-sheet nesting cut and panel profile

• 35mm hinge cup bit — concealed hinge drilling (2–4 cups per panel)

• 5mm drill bit — shelf pin hole rows (10–20 holes per panel)

• 8mm drill bit — dowel holes for carcass assembly

• V-bit — visible edge chamfer on premium designs

Wardrobe door (flat):

• 18mm compression spiral — profile cut

• 35mm hinge cup bit — hinge drilling

• V-bit or chamfer bit — edge detail

Kitchen cabinet door (raised panel or decorative):

• Compression spiral — profile cut

• Large-diameter profile bit — raised panel routing

• V-bit — decorative surface carving

• 35mm hinge cup bit — hinge drilling

Every one of these tool transitions is a manual stop on a standard machine. On an ATC machine, every one of them is a 5-second automatic change. The cumulative time saving across a full production shift — and the consistency improvement across a full production run — is the foundation of the ATC value case for this application.

For a detailed breakdown of the time and output impact, see our ATC vs standard CNC router comparison guide. For a real-world example of what these numbers look like in practice, see our Brazilian wardrobe and cabinet factory case study, where a 30-person factory achieved 1.5× to 2× output increase within the first month of ATC operation.

The Accuracy Requirement of Hardware Hole Positioning

Wardrobe and cabinet production has a specific accuracy requirement that goes beyond general woodworking: hardware holes must land in exactly the correct position on every panel, consistently across the entire production run.

A hinge cup that is 1mm out of position creates a door that does not hang correctly. A shelf pin hole row that is not perfectly consistent between left and right panels means shelves that do not sit level. These are not cosmetic issues — they are assembly failures that require rework, delay delivery, and damage customer relationships.

On a standard machine, manual Z-axis re-zeroing after each tool change introduces small but cumulative positional variability. On an ATC machine, tool length offsets are measured automatically and applied consistently — the hinge cup lands in the same position on panel 1 and panel 500.

This accuracy consistency is as important as the output increase for cabinet and wardrobe manufacturers, and it is a key reason why ATC adoption in this segment continues to accelerate.

The Key Specifications for Cabinet and Wardrobe ATC Machines

Working Area: Match Your Sheet Size

The working area must accommodate the largest sheet you regularly process. For cabinet and wardrobe production, the most common sheet sizes are:

1220 × 2440mm (4×8 feet)

The international standard sheet size. A 1325 working area (1300×2500mm) accommodates this sheet with adequate margin. This is the most widely used configuration for cabinet and wardrobe production globally.

1830 × 2440mm (5×8 feet)

A larger sheet size used in some markets for better nesting yield on tall wardrobe panels. Requires a 1830 or 1930 working area.

2100 × 2800mm or 2100 × 3000mm

Large-format sheets used in markets where they are commercially available, offering the best nesting yield for full-height wardrobe components. Requires a 2030 or 2130 working area — a custom configuration that must be specified at the time of order.

Practical guidance:

Always size the working area for your largest regular sheet, not your average sheet. If your production is built around 2100×3000mm sheets — as in the Brazilian factory case study — a 1325 machine is the wrong starting point regardless of how capable it is in other respects.

Tool Magazine: Size and Type

The tool magazine holds your pre-loaded tools and is the mechanical heart of the ATC system. Two decisions matter: how many tool positions you need, and which magazine design suits your workflow.

How many tool positions?

For most dedicated wardrobe and kitchen cabinet factories, 12 tool positions covers the full production toolset with spare positions for job-specific tools or backup bits. This is the configuration we recommend as the standard starting point for medium-volume cabinet production.

Linear magazine vs carousel magazine:

Linear (in-line) magazine:

Tools are arranged in a straight row at the end or side of the machine bed. The spindle travels to the magazine position to perform tool changes. Linear magazines are the most common design on woodworking ATC machines and are well-suited to 8–16 tool configurations.

Advantages: Higher tool capacity for the same machine footprint, straightforward maintenance access, lower mechanical complexity.

Limitation: The spindle must travel to the end of the bed for each tool change — adding a small amount of time compared to a carousel for machines with long Y-axis travel.

Carousel (disc) magazine:

Tools are arranged in a rotating disc, typically mounted on the gantry. The carousel rotates to bring the required tool to the pickup position, and the spindle picks it up without traveling to the end of the bed.

Advantages: Faster tool change for machines where spindle travel to a linear magazine adds significant time. More compact.

Limitation: Typically limited to 8 tool positions. More complex mechanism.

For most cabinet and wardrobe production applications, a 12-slot linear magazine is the recommended choice — it provides higher tool capacity than a standard carousel, straightforward maintenance, and tool change times that are fast enough for any production workflow.

Spindle Power: Match Your Materials and Feed Rates

The spindle is the component that determines what you can cut, how fast you can cut it, and how reliably the machine performs under sustained production load.

For cabinet and wardrobe production, the primary materials are:

• 18mm and 25mm melamine-faced particleboard

• 18mm MDF

• 18mm and 25mm plywood

• Solid wood components (doors, frames)

• Occasionally: acrylic, PVC, or aluminum composite for integrated design elements

Spindle power recommendations:

The 9kW recommendation for serious production:

For any factory running a full production shift on melamine-faced particleboard and MDF, a 9kW ATC spindle is the practical standard. It provides the cutting force needed for full-depth nesting passes through dense panel materials at production feed rates without straining the spindle, generating excessive heat, or accelerating tool wear.

Undersizing the spindle to save cost is a common mistake. A 4.5kW spindle on a machine that runs 8 hours a day cutting 18mm particleboard will run hot, wear tools faster, and produce rougher edges than a 9kW spindle on the same job. The spindle is not the place to compromise on a production machine.

Air-cooled vs water-cooled ATC spindle:

Air-cooled: Simpler maintenance — no cooling water circuit to manage. Suitable for most cabinet and wardrobe production environments. Runs slightly hotter under sustained load than water-cooled, but modern air-cooled ATC spindles at 9kW are well-suited to full-shift production.

Water-cooled: Lower operating temperature under sustained load, longer bearing life in the most demanding production environments. Requires a water chiller unit and daily monitoring of coolant level and temperature.

For most cabinet and wardrobe factories, a 9kW air-cooled ATC spindle is the recommended configuration — it eliminates the water chiller maintenance requirement while providing adequate thermal performance for full-shift production.

Integrated Drilling Unit: The Feature That Changes Cabinet Production Economics

For cabinet and wardrobe factories where hardware hole drilling is a significant part of the production cycle, an integrated multi-spindle drilling unit — sometimes called a boring block or drill bank — is the single specification upgrade that delivers the most additional productivity beyond the basic ATC configuration.

What it does:

An integrated drilling unit holds multiple drill bits in a fixed array — typically a row of 5mm bits at 32mm spacing, matching the standard 32mm system used in European cabinet construction. When the program calls for a shelf pin hole row, the drilling unit plunges the entire row in a single operation, drilling all holes simultaneously.

Why it matters:

Drilling a row of 20 shelf pin holes with a single 5mm bit in the ATC spindle requires 20 individual plunge cycles. With an integrated drilling unit, the same 20 holes are drilled in a single plunge — a time saving of 60 to 80 seconds per panel side, repeated across every panel in the production run.

For a factory producing 30 wardrobe panels per shift, each with two shelf pin hole rows:

• Single-bit drilling: 30 × 2 × 80 seconds = 80 minutes per shift

• Integrated drilling unit: 30 × 2 × 3 seconds = 3 minutes per shift

That is 77 minutes of additional cutting time recovered per shift — on top of the time already saved by ATC tool changes.

For any cabinet or wardrobe factory where shelf pin holes, dowel holes, or hinge mounting holes are a standard part of the production workflow, an integrated drilling unit is strongly recommended. It is the specification that separates a capable ATC machine from a truly optimized cabinet production center.

Vacuum Table: Holding Large Panels Reliably

Cabinet and wardrobe production involves large, flat sheets that must be held securely across the full working area without mechanical clamps that would interfere with the cutting path. The vacuum table specification directly affects production reliability.

Double-deck vacuum table:

The double-deck design provides uniform vacuum pressure distribution across the full table surface — critical for large-format sheets where a single-deck system may have pressure variations between zones. For 1325 and larger working areas processing full sheets of melamine-faced particleboard, a double-deck table is the recommended standard.

Multi-zone vacuum control:

A multi-zone table allows individual vacuum zones to be activated based on workpiece size. When cutting smaller components or remnant pieces, activating only the zones covered by the material maintains strong suction on the relevant area while preventing air bypass through uncovered zones.

Vacuum pump sizing:

The vacuum pump must be adequately sized for the working area. For a 1325 machine, a 7.5kW water-ring vacuum pump is the standard recommendation — it provides the airflow volume needed to hold full sheets of porous MDF and particleboard reliably, including the porous offcut pieces that remain on the table after nesting cuts.

For larger working areas (2030, 2130), vacuum pump sizing must be scaled accordingly. An undersized pump on a large table is one of the most common causes of sheet lifting and shifting during production — a problem that causes both quality failures and potential tool damage.

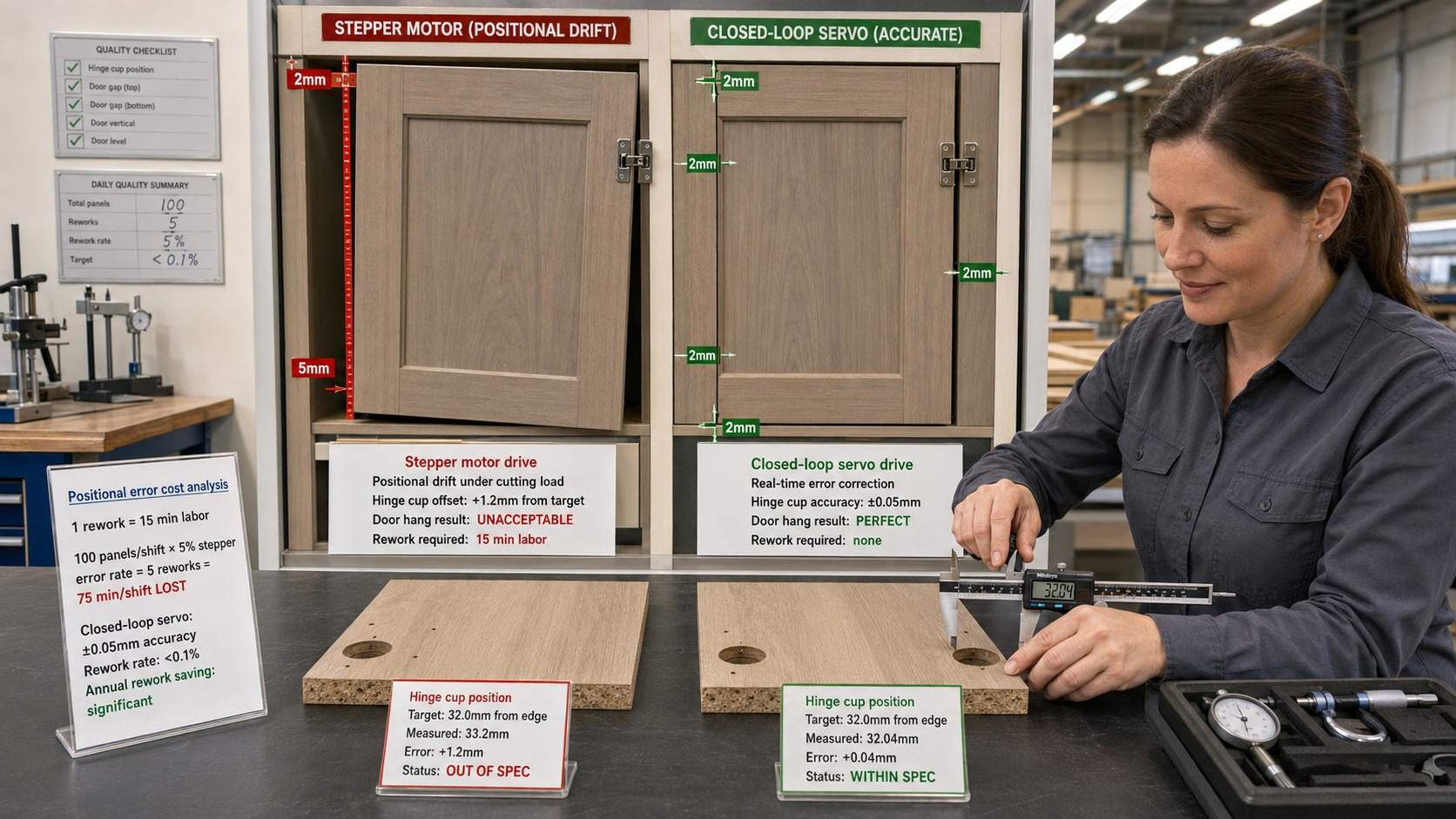

Drive System: Servo Motors for Production Accuracy

For cabinet and wardrobe production, closed-loop servo motors are the recommended drive system — not stepper motors.

The reason is specific to this application: hardware hole positioning accuracy must be maintained consistently across a full production shift, including during the heavy cutting loads of full-depth nesting passes through dense particleboard.

Stepper motors can lose positioning steps under heavy cutting loads — a problem that manifests as gradual positional drift during a long production run. Closed-loop servo motors detect and correct positioning errors in real time, maintaining ±0.05mm accuracy regardless of cutting load.

For a factory where hinge cups and shelf pin holes must land in exactly the correct position on every panel across an 8-hour shift, closed-loop servo drives are not a premium upgrade — they are a production requirement.

1.5kW servo motors on X, Y, and Z axes are the standard specification for 1325 ATC machines in cabinet production. For larger working areas (2030, 2130), servo motor sizing should be confirmed with the machine supplier based on the gantry weight and axis travel distances.

Control System: Syntec for Professional Cabinet Production

The control system manages the ATC tool change sequences, tool length offsets, nesting program execution, and all axis movements. For professional cabinet and wardrobe production, the Taiwan Syntec controller is the recommended standard.

Why Syntec for cabinet production:

• Robust compatibility with professional nesting software platforms used in the furniture industry

• Reliable tool magazine management — tool position tracking, tool length offset storage, and tool change sequence execution

• Intelligent cross-border protection — prevents the spindle from traveling outside the safe cutting zone, protecting both the machine and the material

• Stable performance in continuous production environments

• Strong technical support network and documentation

The control system also determines your CAM software compatibility. Before confirming any machine order, verify that the control system's post-processor is compatible with the nesting or CAM software your design team uses. Request the post-processor configuration file from the supplier and test it with a representative job file before the machine ships.

ATC Configuration Guide by Factory Type

Configuration A: Small Cabinet Shop (10–20 People, Single Shift)

Production profile:

• Custom wardrobes and kitchen cabinets

• 10–20 panels per shift

• Mix of standard and custom designs

• 1220×2440mm sheet size

Recommended configuration:

Why this works:

The 1325 working area handles the standard 4×8 sheet. The 6–9kW spindle covers the full range of cabinet materials. The 8–12 slot magazine accommodates the complete cabinet toolset. Servo drives maintain accuracy across the shift. This configuration delivers the core ATC productivity benefit — eliminated tool change time, consistent hardware hole accuracy — at a price point suited to a small to medium cabinet operation.

Configuration B: Medium Wardrobe Factory (20–50 People, Full Single Shift)

Production profile:

• Fitted wardrobe systems, sliding door wardrobes

• 30–60 panels per shift

• High volume of shelf pin and hinge drilling

• 1220×2440mm or larger sheet size

Recommended configuration:

Why this works:

At this production volume, the integrated drilling unit delivers its maximum value — the time saving on shelf pin and hinge hole drilling across 30–60 panels per shift adds up to 1–2 hours of recovered production time per day. The 9kW spindle handles sustained full-shift production without thermal stress. The 12-slot magazine covers the full wardrobe toolset with spare positions for door hardware and specialty operations.

Configuration C: Large-Format Sheet Production (Custom Working Area)

Production profile:

• Large-format sheet market (2100×3000mm or similar)

• High nesting yield requirement

• Wardrobe and kitchen cabinet components

• Medium to high volume

Recommended configuration:

Why this works:

Large-format sheets offer better nesting yield for tall wardrobe panels and wide kitchen cabinet components — fewer sheet changes, less waste, more components per sheet. The custom working area must be engineered to the required dimensions while maintaining the structural rigidity of the standard platform. This is the configuration delivered to our Brazilian wardrobe and cabinet factory customer in May 2026.

Configuration D: High-Volume Panel Furniture Factory (50–150 People, Double Shift)

Production profile:

• High-volume flat-pack or RTA wardrobe and cabinet production

• 100+ panels per shift

• Nesting software integrated production workflow

• Potential for automated loading/unloading

Recommended configuration:

Why this works:

At this production scale, every minute of cycle time reduction compounds significantly across the shift. The integrated drilling unit is essential — not optional. The higher-power servo drives maintain accuracy under the sustained high-speed, high-load operation of double-shift production. Nesting software integration with the Syntec controller maximizes sheet utilization and minimizes the time between jobs.

The Tooling Setup for Cabinet and Wardrobe ATC Production

Getting the most from an ATC machine requires loading the right tools in the right positions and maintaining them correctly. Here is a practical starting toolset for a 12-slot magazine configured for wardrobe and kitchen cabinet production:

This setup covers the full range of standard wardrobe and kitchen cabinet operations within the 12-slot magazine, with a backup compression spiral in T11 and a flexible position in T12 for job-specific requirements.

For detailed guidance on selecting and maintaining the right bits for each operation, see our guide on CNC router bits for woodworking.

What to Ask Before Buying an ATC Machine for Cabinet Production

When evaluating ATC CNC routers for cabinet making or wardrobe production, these are the questions that separate machines and suppliers that will perform well in production from those that will not.

1. What is the actual tool change time, measured end-to-end?

Ask for a video of the complete tool change cycle — from the moment the spindle begins moving toward the magazine to the moment it returns to the cutting position and resumes. Claimed times and actual times sometimes differ on lower-quality machines.

2. Is the tool length measurement automatic?

Confirm that the machine includes an automatic tool length measurement probe. Without it, tool length offsets must be set manually — eliminating the Z-axis consistency advantage that is critical for hardware hole accuracy in cabinet production.

3. What is the tool holder standard and collet availability?

Confirm ISO 30 or BT 30 taper, and confirm that tool holders in the collet sizes you need (typically 6mm, 8mm, 12mm, 20mm) are available from the supplier and in your local market.

4. Is the drilling unit available, and what is the hole spacing?

If an integrated drilling unit is part of your requirement, confirm the hole spacing (32mm is the European cabinet standard), the number of spindles, and whether the unit is included in the quoted price or is an additional option.

5. What nesting software is the machine compatible with?

Confirm compatibility with your existing CAM or nesting software and request the post-processor file before order confirmation.

6. What is the pre-shipment testing process?

A reliable manufacturer should run a complete production test — including full ATC cycling, hardware hole drilling, and a representative nesting program — before shipment, and provide video documentation of the test results.

7. What after-sales support is available for ATC-specific issues?

Confirm that the supplier's technical team has specific experience with ATC system troubleshooting, tool magazine calibration, and pneumatic system maintenance. For a complete supplier evaluation checklist, see our guide on what to check before buying a CNC router from a Chinese manufacturer.

Common Mistakes Cabinet Factories Make When Buying ATC

Undersizing the spindle to reduce purchase price

A 4.5kW spindle on a machine running full-shift particleboard production will underperform, wear tools faster, and require earlier replacement than a 9kW spindle. The spindle is the component that works hardest in cabinet production — do not compromise on it.

Choosing too few tool positions

A 6-slot magazine that is always full leaves no flexibility for job-specific tools or backup bits. For cabinet production, 12 slots is the practical minimum for a well-organized production workflow.

Skipping the drilling unit to save cost

For any factory where shelf pin drilling is a daily production task, the time saving from an integrated drilling unit pays back its cost premium faster than almost any other specification upgrade. It is the most underestimated productivity feature on a cabinet production ATC machine.

Not confirming electrical specification for the local market

For buyers in 60Hz markets — Brazil, the United States, Canada, Mexico, Japan — the machine's electrical components must be configured for 60Hz operation. This is not a minor detail. See our Brazilian factory case study for a detailed account of how this was handled correctly for an international export order.

Not verifying CAM software compatibility before ordering

Discovering after delivery that the machine's control system is not compatible with your nesting software — or that the post-processor produces incorrect output — can delay production startup by weeks. Confirm compatibility and test the post-processor before the machine ships.

Conclusion

For cabinet making and wardrobe production, an ATC CNC router is not a luxury upgrade — it is the production tool that the application demands. The combination of multi-tool jobs, high daily volume, and hardware hole accuracy requirements makes ATC the natural fit for any factory running serious cabinet or wardrobe production.

The right configuration depends on your production scale, sheet size, and workflow complexity. For most dedicated cabinet and wardrobe factories, the starting point is a 1325 working area, 9kW air-cooled ATC spindle, 12-slot linear magazine, 1.5kW servo drives, Syntec controller, and double-deck vacuum table — with an integrated drilling unit strongly recommended for any factory where shelf pin and hinge drilling is a daily production task.

For factories processing large-format sheets, custom working area configurations — 2030, 2130, or other sizes — are available and must be engineered to the required dimensions with the same structural rigor as the standard platform.

Browse our ATC CNC Router range to explore configurations for cabinet making and wardrobe production, or contact us with your production details — sheet size, daily volume, typical job types, and electrical supply specification. Our technical team will recommend the right configuration and provide a complete specification and quotation for your review.

Frequently Asked Questions

What size ATC CNC router do I need for cabinet making?

For factories processing standard 1220×2440mm (4×8 foot) sheets, a 1325 working area (1300×2500mm) is the standard choice. For factories using larger sheet sizes — 1830×2440mm or 2100×3000mm — a larger or custom working area is required. Always size the machine for your largest regular sheet, not your average sheet.

How many tools does a cabinet production ATC machine need?

For most wardrobe and kitchen cabinet production, 12 tool positions covers the complete toolset — compression spirals in multiple diameters, hinge cup bits, drill bits, V-bits, groove cutters, and a backup — with spare positions for job-specific tools. 8 positions is the practical minimum; 16 positions provides additional flexibility for factories with complex or varied product ranges.

Do I need an integrated drilling unit for cabinet production?

If shelf pin holes, hinge mounting holes, or dowel holes are a regular part of your production workflow — which they are in virtually all wardrobe and cabinet production — an integrated drilling unit is strongly recommended. The time saving on hole drilling across a full production shift is significant, and the payback on the additional investment is fast.

What spindle power do I need for cutting melamine-faced particleboard?

For full-shift production cutting 18mm and 25mm melamine-faced particleboard and MDF, a 9kW ATC spindle is the recommended standard. It provides adequate cutting force for full-depth nesting passes at production feed rates without thermal stress or accelerated tool wear. A 6kW spindle is viable for lighter production schedules; 12kW is suited to the most demanding high-volume or double-shift operations.

Can an ATC CNC router handle both wardrobe carcass production and decorative door carving?

Yes. An ATC machine with a 12-slot magazine can hold the full toolset for both applications simultaneously — compression spirals and drill bits for carcass production, plus V-bits, ball-nose bits, and profile bits for decorative door work. The ability to switch between these operations automatically within a single program, or between jobs without manual tool changes, is one of the key advantages of ATC for factories producing both carcasses and decorative doors.

What is the typical payback period for an ATC machine in cabinet production?

For factories running full single-shift production with 3 or more tool changes per job, payback periods of 3 to 12 months are typical. The exact figure depends on production volume, the value of additional panels produced in recovered tool change time, and the ATC premium over the standard machine alternative. See our ATC vs standard CNC router guide for a detailed ROI calculation framework.
