Material cost is the largest single variable expense in cabinet making and panel furniture production. In a typical wardrobe or kitchen cabinet factory, sheet material — melamine-faced particleboard, MDF, plywood — accounts for 40% to 60% of total production cost. Every percentage point of material waste that can be eliminated goes directly to the bottom line.
This is why nesting — the process of arranging panel components on a sheet to minimize waste — is not a software feature or a production detail. It is a core business discipline that separates profitable furniture factories from those that struggle with margins.
A CNC nesting router is a CNC machine configured and operated specifically for nesting production: full-sheet panel cutting where components are arranged by nesting software to maximize the number of parts cut from each sheet, minimize offcuts, and — on a well-configured machine — complete all routing, profiling, and drilling operations in a single program cycle.
This guide covers everything a furniture factory or cabinet shop needs to know about CNC nesting production: how nesting works, what makes a machine suited to nesting, how to choose and configure nesting software, the strategies that deliver the best sheet utilization in practice, and the common mistakes that undermine nesting efficiency even on well-equipped production lines.
If you are evaluating whether an ATC CNC router is the right foundation for a nesting production workflow, start with our guide on what is an ATC CNC router and do you need one. If you have already made that decision and are focused on getting the most from your nesting operation, this guide is for you.
What Is a CNC Nesting Router?
The term "nesting router" refers to a CNC router used in a nesting workflow — a production method where multiple panel components are cut from a single sheet in a single machine cycle, with the component layout optimized by nesting software to minimize material waste.
The nesting workflow has three stages:
Stage 1: Design and component list
The furniture design — a wardrobe, a kitchen cabinet run, a set of office furniture — is broken down into individual panel components with their dimensions, edge profiles, hardware hole requirements, and grain direction constraints.
Stage 2: Nesting software optimization
The nesting software takes the component list and arranges the parts on virtual sheets, calculating the layout that fits the maximum number of components onto the minimum number of sheets while respecting grain direction, edge band allowances, and any other production constraints. The software then generates the cutting program — the G-code or machine file that tells the CNC router exactly where to cut each component, in what sequence, and with which tools.
Stage 3: CNC router execution
The operator loads a sheet onto the machine, calls up the nesting program, and the machine cuts all components from that sheet in a single cycle — routing profiles, drilling hardware holes, and chamfering edges automatically, with tool changes handled by the ATC system without operator intervention.
The result is a production workflow that is faster, more material-efficient, and more consistent than manual cutting or non-optimized CNC production.
Why Nesting Matters: The Real Cost of Material Waste
Before getting into the technical details of nesting optimization, it is worth quantifying what is at stake.
The Baseline: What Does Unoptimized Cutting Actually Waste?
In a factory cutting panels without nesting software — or with poorly configured nesting — material waste typically runs at 20% to 35% of total sheet consumption. This means that for every 100 sheets purchased, 20 to 35 sheets worth of material ends up as offcuts and scrap.
For a factory consuming 50 sheets per day at $30 per sheet:
Daily material cost: $1,500
Waste at 25%: $375 per day
Annual waste cost: $375 × 250 working days = $93,750 per year
With well-configured nesting software and optimized production practices, waste can typically be reduced to 8% to 15% — a reduction of 10 to 20 percentage points.
Applying that improvement to the same factory:
Waste reduction from 25% to 12%: 13 percentage points
Daily saving: $1,500 × 13% = $195 per day
Annual saving: $195 × 250 = $48,750 per year
Nearly $50,000 per year in material cost reduction — from the same production volume, on the same machine, simply by optimizing how components are arranged on the sheet. This is why nesting software is not optional for any serious panel furniture operation.
The Machine Requirements for Nesting Production
Not every CNC router is equally suited to nesting production. The following machine specifications are either essential or strongly recommended for a nesting workflow.
Essential: Adequate Working Area
The working area must accommodate a full sheet in a single setup. For standard 1220×2440mm sheets, a 1325 working area is the minimum. For larger sheet sizes used in some markets, a correspondingly larger working area is required.
Nesting on a machine that cannot fit a full sheet requires repositioning — splitting the nesting layout across two setups, which eliminates most of the efficiency advantage of nesting and introduces alignment errors at the repositioning boundary.
Essential: Vacuum Table with Multi-Zone Control
Nesting production creates a specific vacuum challenge that does not exist in single-component cutting: as components are cut from the sheet, the remaining material becomes increasingly fragmented. Offcut pieces and small remnants remain on the table alongside the components still being cut.
A multi-zone vacuum table allows the operator to maintain strong suction on the zones where material is present while the zones that have been cut clear do not bleed air and reduce overall vacuum pressure. Without multi-zone control, vacuum pressure drops progressively as the sheet is cut, leading to component movement and cutting errors in the later stages of the nesting program.
For nesting production, the vacuum pump must also be adequately sized — not just for the full sheet at the start of the program, but for the fragmented sheet condition at the end, where vacuum is working harder to hold smaller pieces. A 7.5kW water-ring vacuum pump is the standard recommendation for 1325 nesting machines; larger working areas require proportionally larger pump capacity.
Strongly Recommended: ATC Spindle
Nesting programs for cabinet and wardrobe production typically require multiple tools — at minimum a compression spiral for profile cutting and drill bits for hardware holes, and often additional tools for edge chamfering, groove routing, and decorative operations.
Without ATC, every tool change in a nesting program requires a manual stop — interrupting the production flow, introducing Z-axis variability, and adding significant non-cutting time to every sheet cycle. With ATC, the nesting program runs from start to finish without operator intervention, with all tool changes handled automatically in seconds.
For any serious nesting production operation, ATC is not a luxury — it is the feature that makes the nesting workflow function as intended. The combination of nesting software optimization and ATC execution is what delivers the full productivity and material efficiency potential of nesting production.
In a nesting program, the machine may cut 20, 30, or 50 components from a single sheet in a single cycle. Positional accuracy must be maintained consistently from the first component to the last — across the full sheet area, through the full range of cutting loads.
Closed-loop servo drives maintain ±0.05mm positioning accuracy regardless of cutting load, throughout the entire nesting cycle. Stepper motors, which can lose steps under heavy cutting loads, introduce positional drift that accumulates across a long nesting program — resulting in components that are slightly out of position relative to their programmed locations, causing fitting problems on the assembly floor.
Recommended: Syntec Control System
The Syntec controller's compatibility with professional nesting software platforms, its robust tool management for ATC operation, and its stable performance in continuous production environments make it the recommended control system for nesting production. Confirm that your preferred nesting software outputs a post-processor format compatible with the Syntec controller before finalizing the machine order.
Nesting Software: The Brain of the Operation
The CNC router executes the nesting program — but the nesting software creates it. Choosing and configuring the right nesting software is as important as the machine specification for achieving good sheet utilization.
What Nesting Software Does
At its core, nesting software performs two functions:
1. Layout optimization (nesting algorithm)
The software calculates the arrangement of components on the sheet that minimizes waste. This is a mathematically complex optimization problem — the number of possible arrangements of even a modest component list on a single sheet is astronomically large. Good nesting software uses sophisticated algorithms to find near-optimal solutions quickly, typically within seconds for standard production jobs.
2. Toolpath generation (CAM function)
Once the layout is determined, the software generates the cutting toolpaths — the exact paths the spindle follows to cut each component, in the correct sequence, with the correct tools, at the correct cutting parameters. It also generates the tool change commands that tell the ATC system which tool to load at each stage of the program.
Key Nesting Software Features for Furniture Production
Grain direction control
For melamine-faced panels where the surface grain pattern must run in a consistent direction — particularly for visible wardrobe and cabinet surfaces — the nesting software must respect grain direction constraints when arranging components. A component that is rotated 90° to fit the layout more efficiently is useless if the grain runs the wrong way on a visible surface.
Edge band allowance
Components that will receive edge banding are typically cut slightly undersized to allow for the edge band thickness. The nesting software must apply the correct edge band allowance to each edge of each component based on which edges will be banded.
Label output and component identification
In a nesting production workflow, each component cut from the sheet must be identifiable — which order it belongs to, which panel it is, which edges need banding, and where it goes in the assembly sequence. Professional nesting software generates labels — printed or applied by a label printer integrated into the production line — that carry this information for every component.
Remnant management
When a sheet is not fully consumed by a nesting layout, the remaining material — the remnant — can be saved and used in a future nesting job. Good nesting software tracks remnant sizes, stores them in a remnant library, and automatically includes remnants in future nesting calculations. Effective remnant management can reduce material waste by an additional 3–8 percentage points beyond the primary nesting optimization.
Multi-sheet optimization
For large orders with many components, the nesting software should optimize the layout across multiple sheets simultaneously — not just one sheet at a time. Multi-sheet optimization finds the global minimum waste solution for the entire order, which is consistently better than optimizing each sheet independently.
Nesting Software Options for Furniture Production
Several professional nesting software platforms are widely used in the furniture industry. The right choice depends on your production scale, design workflow, and budget:
Cabinet Vision
A comprehensive design-to-production platform that integrates cabinet design, component generation, nesting optimization, and CNC output in a single workflow. Well-suited to custom cabinet shops where design flexibility and production integration are both priorities.
Mozaik
A cabinet design and nesting software popular in North America, known for its accessible interface and strong nesting optimization for standard cabinet production.
eCabinets / Thermwood
Integrated design and production software from Thermwood, suited to factories using Thermwood machines but also compatible with other CNC platforms.
Ucancam Nesting
A widely used nesting software in Asian and emerging markets, known for its compatibility with a wide range of CNC controllers including Syntec, and its practical interface for production floor use.
Alphacam / Polyboard / Cut Rite
Professional nesting and panel optimization tools used in larger furniture manufacturing operations.
Practical guidance:
Before selecting nesting software, confirm that it outputs a post-processor format compatible with your machine's control system. Request a trial version and test it with a representative production job — including grain direction constraints, edge band allowances, and hardware hole drilling — before committing to a license.
Nesting Optimization Strategies: Getting to 85–92% Sheet Utilization
The nesting software does the mathematical optimization — but the production decisions that surround the software have a major impact on the sheet utilization results it can achieve. These are the strategies that consistently deliver the best results in practice.

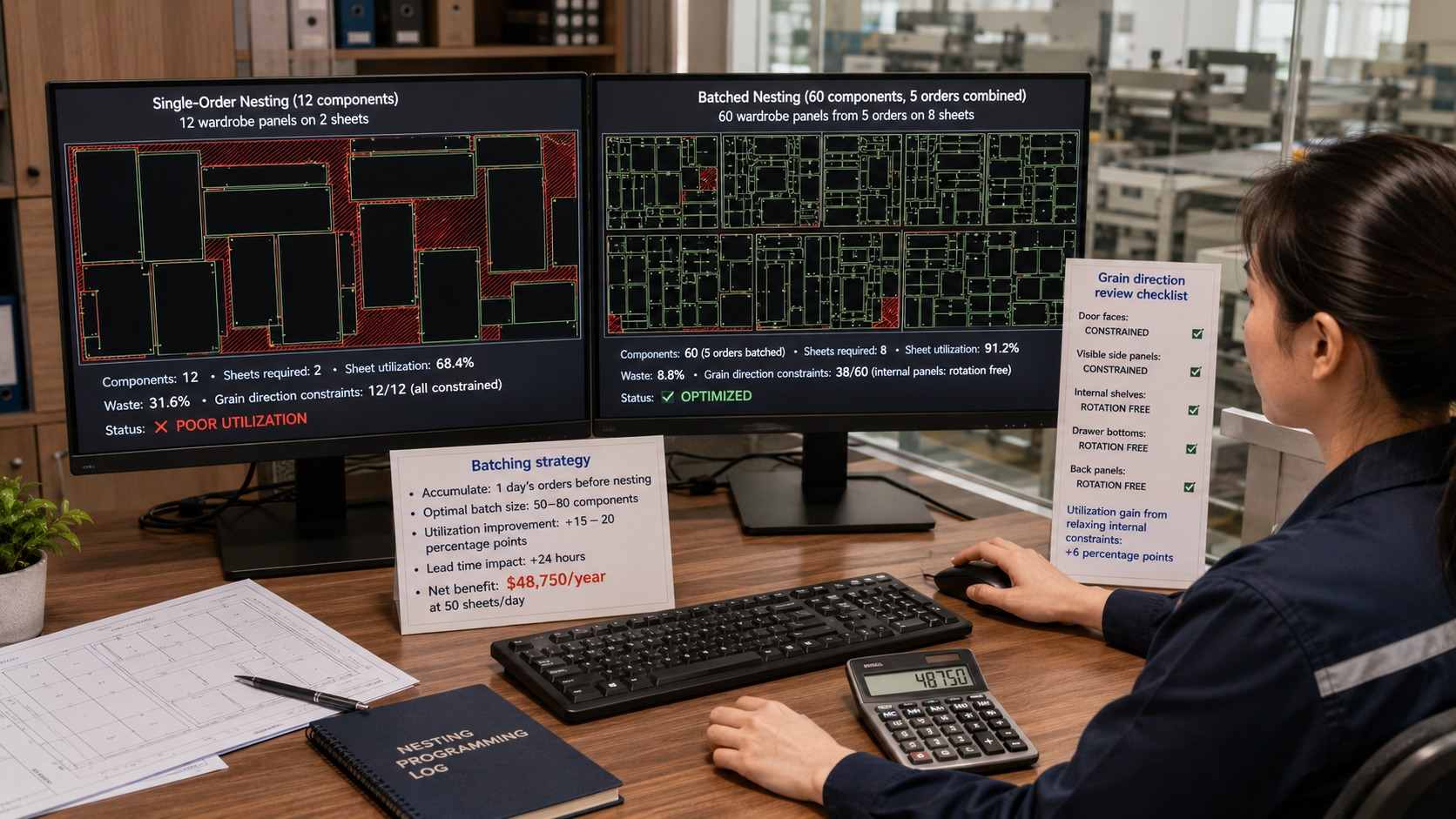

Strategy 1: Batch Orders for Better Nesting Density
Nesting software works best when it has a large pool of components to arrange. A small component list — for example, a single wardrobe order with 12 panels — gives the algorithm limited flexibility to find efficient arrangements. A larger batch — 5 wardrobe orders processed together, giving the algorithm 60 panels to arrange — provides far more combinations and consistently produces better sheet utilization.
Practical implementation:
Accumulate orders for a defined batching period — typically one day's production — before running the nesting optimization. This is the single most impactful operational change most small to medium factories can make to improve sheet utilization.
The trade-off is lead time: batching orders means individual orders wait longer before entering production. For most furniture factories, a 24-hour batching window is a practical balance between utilization improvement and lead time impact.
Strategy 2: Mix Component Sizes in Each Nest
Nesting layouts that mix large and small components consistently achieve better sheet utilization than layouts that group similar-sized components together. Large components leave irregular gaps that small components can fill — but only if the algorithm has small components available to place.
Practical implementation:
When batching orders for nesting, include a mix of order types — full wardrobe sets (which include large side panels and small shelf pieces) rather than batching only similar order types together. The more varied the component size distribution in the batch, the better the nesting algorithm can fill the sheet.
Strategy 3: Manage Grain Direction Constraints Carefully
Grain direction constraints are the single biggest obstacle to high sheet utilization in melamine-faced panel production. A component that can only be placed in one orientation gives the nesting algorithm half the flexibility of a component that can be rotated freely.
Practical implementation:
Apply grain direction constraints only to components where grain direction is genuinely visible and matters to the customer — typically door faces, visible side panels, and top surfaces
For internal components — shelf panels, drawer bottoms, back panels — remove grain direction constraints where the grain direction is not visible in the finished product
Discuss with your design team which components genuinely require grain direction control and which have been constrained by default without production necessity
Relaxing unnecessary grain direction constraints on internal components can improve sheet utilization by 3–8 percentage points with no impact on finished product quality.
Strategy 4: Optimize Cutting Sequence for Vacuum Hold-Down
The sequence in which components are cut from the sheet affects how well the vacuum table holds the remaining material as the sheet becomes fragmented. A poorly sequenced nesting program cuts large sections from the center of the sheet early, leaving the edges unsupported and causing the remaining pieces to lift.
Practical implementation:
Configure the nesting software to use an outside-in cutting sequence — cutting components from the edges and corners of the sheet first, working toward the center. This preserves the structural integrity of the sheet for as long as possible, maintaining better vacuum hold-down throughout the cutting cycle.
Most professional nesting software platforms include cutting sequence optimization as a configurable parameter. Confirm that this is set correctly for your machine's vacuum table configuration.
Strategy 5: Use Tabs to Secure Small Components
Small components cut from the interior of a nesting layout can shift or lift after they are fully profiled — the vacuum hold-down is less effective on small pieces, and the cutting forces can move them before the program is complete. A shifted component that gets hit by the spindle on a subsequent pass can damage the tool, the component, and potentially the machine.
Practical implementation:
Configure the nesting software to leave small tabs — uncut bridges of material — connecting small components to the surrounding sheet until the program is complete. The operator breaks or cuts the tabs manually after the program finishes. Most professional nesting software includes tab placement as an automatic or semi-automatic feature.
The tab thickness and placement must be calibrated to hold the component securely without being so thick that they are difficult to remove cleanly. Typically, 2–4mm tabs at 2–3 points around a small component are adequate.
Strategy 6: Implement a Remnant Management System
Every sheet that exits the machine with usable remnant material represents an opportunity — if the remnant is tracked, stored, and used in a future nesting job. Without a remnant management system, remnants are either discarded (wasting material) or stored randomly (making them impossible to find when needed).
Practical implementation:
Define a minimum remnant size worth saving — typically any piece larger than 300×300mm
Label every remnant with its dimensions and material specification before storing
Enter remnant dimensions into the nesting software's remnant library after each production run
Configure the nesting software to automatically include remnants in future nesting calculations before opening new full sheets
A disciplined remnant management system typically reduces material consumption by an additional 3–8% beyond the primary nesting optimization — representing significant cost savings at production scale.
Strategy 7: Calibrate Cutting Parameters for Clean Edges Without Oversizing
Components cut with excessive kerf allowance — the width of material removed by the cutting tool — are effectively smaller than their nominal dimensions, which can affect assembly fit. Components cut with insufficient kerf allowance may have edges that are not fully separated from the surrounding sheet.
Practical implementation:
Calibrate the kerf compensation in the nesting software to match the actual kerf width of your cutting tools. Measure the actual kerf width of your primary compression spiral bit on your specific material and enter this value in the software's tool definition. Recheck this calibration when changing to a different bit diameter or a new batch of bits.
The Nesting Production Workflow: From Order to Cut Panel
Understanding the complete production workflow helps identify where efficiency gains are available and where bottlenecks commonly occur.
Step 1: Order Entry and Component Generation
The customer order is entered into the design software. The software generates the component list — all panels with their dimensions, material specification, grain direction, edge banding requirements, and hardware hole positions.
Common bottleneck: Manual data entry errors in component dimensions or material specifications cause cutting errors that are only discovered at assembly. Implement a verification step — reviewing the component list against the order before sending it to nesting — to catch errors before they reach the machine.
Step 2: Nesting Optimization
The component list is imported into the nesting software. The software optimizes the layout across the required number of sheets and generates the cutting programs.
Key decision point: Batch size. As discussed above, larger batches produce better sheet utilization. Establish a clear batching policy — daily batching, twice-daily batching, or order-by-order — based on your lead time requirements and production volume.
Step 3: Program Review and Approval
Before sending the nesting program to the machine, review the layout visually in the software. Check:
All components are present and correctly dimensioned
Grain direction constraints are respected on visible components
Hardware holes are positioned correctly
No components overlap or extend beyond the sheet boundary
Cutting sequence is logical and supports vacuum hold-down
This review takes 2–5 minutes per sheet and catches errors that would otherwise result in scrapped panels and wasted machine time.
Step 4: Machine Setup
Load the correct sheet onto the vacuum table
Activate the appropriate vacuum zones for the sheet size
Confirm the correct tools are loaded in the ATC magazine
Set the work origin at the sheet reference corner
Confirm spindle speed and feed rate parameters match the material
Start the nesting program and monitor the first few cuts. Confirm:
The machine is cutting in the correct position relative to the sheet
Vacuum hold-down is maintaining the sheet securely
ATC tool changes are executing correctly
Cut quality on the first components is acceptable
Once the program is running correctly, the operator can manage other tasks — preparing the next sheet, sorting completed components, applying labels — while the machine runs.
Step 6: Component Sorting and Labeling
As components are cut, they must be sorted, labeled, and staged for the next production step — edge banding, drilling, assembly. A clear labeling system that identifies each component by order, panel name, and processing requirements is essential for maintaining production flow when multiple orders are being processed simultaneously.
Step 7: Remnant Assessment and Storage
After the program is complete, assess the remaining sheet material:
Is the remnant large enough to save? (Apply your minimum size threshold)
Measure and label the remnant
Enter it in the remnant library
Store it in the designated remnant area
Spoilboard Management in Nesting Production
Nesting production places specific demands on the spoilboard — the sacrificial MDF layer that sits on the machine table and protects the table surface during through-cutting operations.
In nesting production, the spoilboard is cut into repeatedly across its full surface area as through-cuts are made for every component profile. The spoilboard degrades faster in nesting production than in single-component cutting, and an uneven spoilboard surface causes inconsistent cutting depth — components that are not fully cut through in some areas, or that are cut too deep in others.
Spoilboard management for nesting production:
Surface regularly: Resurface the spoilboard whenever the surface shows significant grooving from previous cuts — typically every 20–50 sheets depending on production intensity. Use a spoilboard surfacing cutter (fly cutter) to skim the surface flat.
Replace when too thin: A spoilboard that has been surfaced down to less than 10–12mm should be replaced. A thin spoilboard provides less support for the vacuum table's suction distribution and is more prone to flexing under cutting forces.
Use a two-layer system: Some factories use a two-layer spoilboard — a thicker base layer that is rarely replaced, and a thinner top layer that is replaced more frequently. This reduces the cost and time of spoilboard replacement.
Vacuum hole maintenance: In nesting production, the spoilboard's vacuum holes can become clogged with MDF dust from through-cuts. Clean the vacuum holes periodically to maintain consistent suction across the table surface.
For a complete maintenance schedule covering spoilboard management and all other routine machine maintenance tasks, see our guide on CNC router maintenance tips.
Common Nesting Production Problems and Solutions
Problem: Sheet Utilization Is Lower Than Expected
Likely causes:
Batch sizes are too small — not enough components for the algorithm to find efficient arrangements
Grain direction constraints applied to components that do not require them
Remnant management not implemented — new full sheets being opened when remnants could be used
Nesting software not configured for multi-sheet optimization
Solutions:
Increase batch sizes, review and relax unnecessary grain direction constraints, implement remnant tracking, and confirm multi-sheet optimization is enabled in the software settings.
Problem: Components Shifting During Cutting
Likely causes:
Vacuum pump undersized for the working area
Vacuum zones not correctly activated for the sheet size
Spoilboard vacuum holes blocked
Cutting sequence cutting large sections from the center of the sheet early
Solutions:
Check vacuum pump performance, confirm zone activation, clean spoilboard vacuum holes, and configure outside-in cutting sequence in the nesting software.
Problem: Components Not Fully Cut Through
Likely causes:
Spoilboard surface uneven — high spots preventing full depth penetration
Z-axis cutting depth set incorrectly
Spoilboard too thin in some areas from previous surfacing
Solutions:
Resurface the spoilboard, verify Z-axis cutting depth setting, and replace the spoilboard if it has been surfaced below the minimum thickness.
Problem: Hardware Holes in Wrong Position
Likely causes:
Work origin set incorrectly at machine setup
Sheet not loaded squarely against the reference corner
Verify work origin setting procedure, confirm sheet loading against a fixed reference stop, and recalibrate axis steps-per-unit if positional errors are consistent across multiple sheets.
Problem: ATC Tool Changes Failing During Nesting Program
Likely causes:
Compressed air pressure dropping below the required minimum
Tool holder tapers contaminated with dust
Tool magazine position calibration drift
Solutions:
Check compressed air supply pressure and filter condition, clean tool holder tapers and magazine pockets, and recalibrate tool magazine positions. For a complete ATC maintenance checklist, see our CNC router maintenance tips guide.
Measuring Nesting Performance: The Metrics That Matter
To improve nesting performance systematically, you need to measure it consistently. These are the key metrics for a nesting production operation.
Track this metric per production run and as a rolling monthly average. A well-optimized nesting operation targeting 85–92% utilization will show clear improvement as the strategies in this guide are implemented.
Panels Per Sheet
The average number of components cut per sheet is a practical proxy for nesting efficiency that is easy to track without calculating areas. Establish a baseline and monitor for improvement as batch sizes and nesting configurations are optimized.
Remnant Recovery Rate
$$\text{Remnant Recovery Rate} = \frac{\text{Remnant material used in production}}{\text{Total remnant material generated}} \times 100%$$
A high remnant recovery rate indicates that the remnant management system is working. A low rate indicates that remnants are being generated but not effectively reused.
Sheets Per Order
For repeat product types — standard wardrobe configurations, kitchen cabinet runs — track how many sheets are consumed per order over time. Consistent improvement indicates that nesting optimization is working; sudden increases indicate a configuration problem or a change in component mix that needs investigation.
Conclusion
A CNC nesting router is not just a machine — it is a production system. The machine provides the cutting capability; the nesting software provides the optimization intelligence; the production workflow and operational practices determine how much of that potential is actually realized in daily output and material efficiency.
The factories that achieve 88–92% sheet utilization consistently are not doing so because they have a better machine than their competitors. They are doing so because they batch orders effectively, manage grain direction constraints intelligently, implement remnant tracking, configure their nesting software correctly, and maintain their machines and spoilboards to the standard that nesting production demands.
The investment in getting these practices right is modest — a few days of configuration work, a clear operational procedure, and a consistent maintenance routine. The return, in material cost reduction and output increase, compounds every day across every production shift.
If you are building or upgrading a nesting production line, browse our ATC CNC Router range for configurations suited to cabinet and wardrobe nesting production, or contact us with your production details. Our technical team will recommend the right machine configuration — working area, spindle power, tool magazine, vacuum system, and control system — for your specific nesting workflow and production volume.
A CNC nesting router is a CNC router used in a nesting production workflow — where nesting software arranges multiple panel components on a sheet to minimize material waste, and the CNC router cuts all components from the sheet in a single automated cycle. The term refers to the production method rather than a specific machine type, though machines used for nesting are typically configured with vacuum tables, ATC spindles, and control systems compatible with professional nesting software.
How much material waste can nesting software eliminate?
In factories cutting panels without nesting optimization, material waste typically runs at 20–35%. With well-configured nesting software and good operational practices — effective batching, grain direction management, remnant tracking — waste can typically be reduced to 8–15%. The improvement represents significant cost savings at any meaningful production volume.
Do I need an ATC machine for nesting production?
Technically, nesting production is possible on a standard machine — but manual tool changes interrupt the production flow, introduce Z-axis variability, and add significant non-cutting time to every sheet cycle. For any nesting workflow that requires more than one tool per sheet — which is virtually all cabinet and wardrobe production — ATC is strongly recommended. It is the feature that allows the nesting program to run from start to finish without operator intervention.
What nesting software works best with Syntec-controlled CNC routers?
Ucancam Nesting is widely used with Syntec controllers and has strong compatibility with the Syntec post-processor format. Several other professional nesting platforms also support Syntec output. Confirm post-processor compatibility with your specific software and controller version before committing to a software license, and test with a representative production job before the machine ships.
How often should I resurface the spoilboard in nesting production?
In active nesting production, the spoilboard should be resurfaced whenever the surface shows significant grooving from through-cuts — typically every 20–50 sheets depending on production intensity and the depth of through-cuts. A consistent resurfacing schedule prevents the uneven spoilboard surface that causes inconsistent cutting depth across the sheet.
What sheet utilization rate should I be targeting?
For a well-configured nesting operation with effective batching and remnant management, a sheet utilization rate of 85–92% is achievable for most cabinet and wardrobe production. Rates below 80% indicate significant optimization opportunity. Rates above 92% are achievable in some production scenarios but typically require very large batch sizes and minimal grain direction constraints.
Can I use nesting software with a standard (non-ATC) CNC router?
Yes — nesting software generates cutting programs that any CNC router can execute. However, if the nesting program requires multiple tools, a standard machine will need manual tool changes at each tool transition, interrupting the automated production flow. For single-tool nesting jobs — profile cutting only, without drilling — a standard machine is viable. For multi-tool nesting production, ATC is the practical requirement.
Ready to build a nesting production line for your cabinet or wardrobe factory?
Tell us your sheet size, daily production volume, product types, and current material waste rate. Our technical team will recommend the right ATC nesting router configuration and provide a complete specification and quotation. Contact us today.
