Product Overview

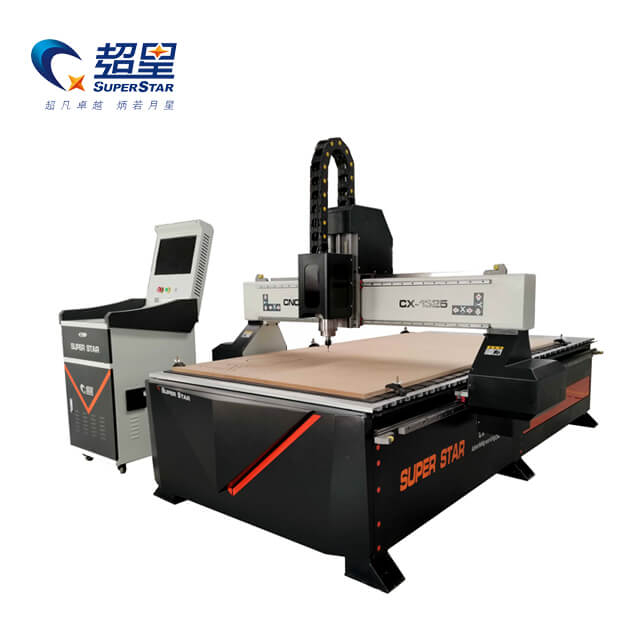

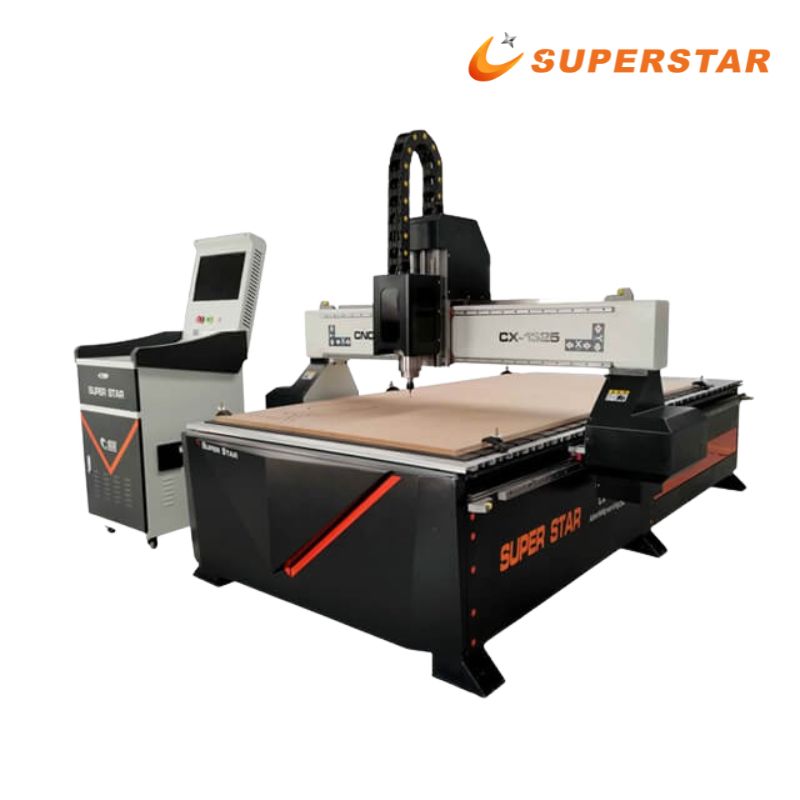

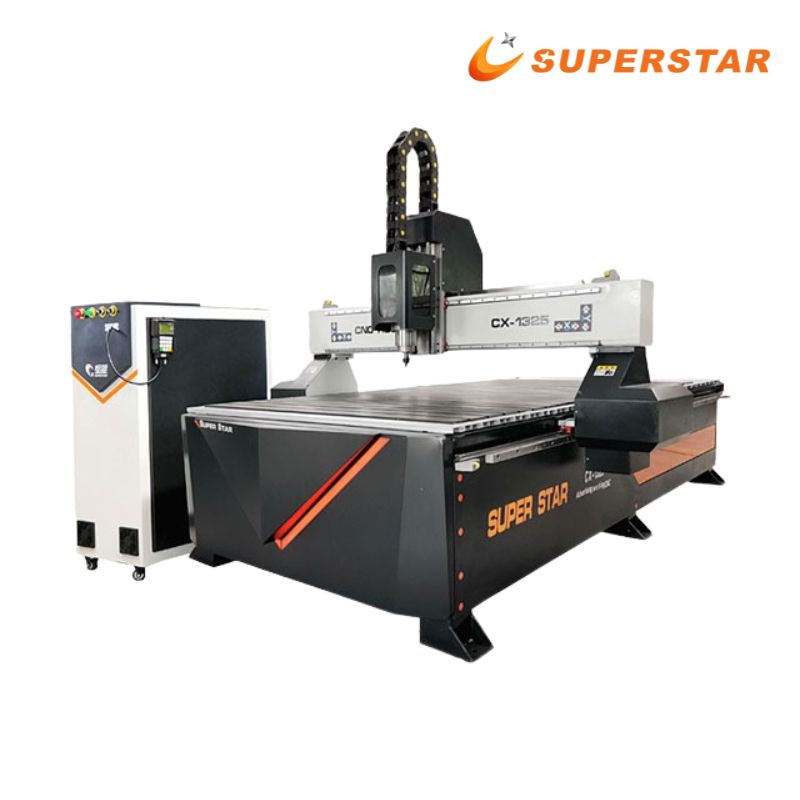

The Superstar CX-1325 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the essential workhorse of the modern woodworking industry. Acknowledged globally as the industry-standard "4x8 router," it bridges the gap between affordable entry-level machines and high-end automated centers, providing maximum ROI for furniture factories and sign shops alike.
Built on a thick-walled, seamlessly welded steel bed that has undergone high-temperature aging treatment, the machine guarantees absolute structural rigidity. This heavily tempered frame absorbs the intense vibrations generated when routing dense hardwoods at high speeds, ensuring that the gantry does not warp or shake, and that your cuts remain flawlessly square and chatter-free over years of continuous production.
Core Advantages
Industry-Standard Work Area: The 1300mm x 2500mm bed size is perfectly calibrated to process standard 4x8 foot sheets of plywood, MDF, and acrylic, minimizing material waste and maximizing factory throughput.
High-Endurance Spindle: Typically equipped with a 3.0KW to 4.5KW water-cooled or air-cooled spindle (depending on client needs). These high-frequency motors deliver massive torque for aggressive roughing cuts while spinning up to 24,000 RPM for glass-smooth edge finishes.
Precision Linear Motion: The machine utilizes high-precision Taiwan square linear guide rails. These widened rails offer a massive contact surface, delivering exceptional load-bearing capacity and ultra-smooth gantry movement compared to cheaper round rails.
Intuitive Control Systems: Available with industry-leading controllers (such as DSP offline handhelds, NC Studio, or Mach3). These systems are highly intuitive, allowing operators to learn the machine quickly and execute complex G-code programs flawlessly.
Technical Parameters
Feature | Specification |
Model | CX-1325 Wood Engraving CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 3.0 KW / 4.5 KW (Water or Air Cooling options) |
Spindle Speed | 0 – 24,000 RPM |
Control System | DSP / NC Studio / Mach3 |
Drive Motors | Precision Stepper / Servo Motors |
Transmission (X/Y) | High-Precision Rack & Pinion |
Transmission (Z) | Taiwan Precision Ball Screw |
Guide Rails | Taiwan Square Linear Guide Rails |
Working Table | Aluminum T-Slot / Vacuum Adsorption (Optional) |
Working Voltage | AC 220V or 380V (Depending on spindle/pump) |
Detailed Component Analysis
The X and Y axes utilize a robust helical rack and pinion transmission system. This setup provides significantly faster travel speeds and better acceleration than ball-screw-only systems, drastically reducing the "air-cutting" time between carving zones on large panels.
The Z-axis relies on a precision Taiwan ball screw to manage the vertical plunge of the spindle. This guarantees exact depth control, which is absolutely critical when performing intricate 3D relief engraving or V-grooving on expensive cabinet doors.
The machine can be configured with an Aluminum T-Slot table (ideal for mechanically clamping irregular, thick blocks of solid wood) or a Vacuum Adsorption table (perfect for instantly securing large, flat sheets of MDF and plywood without clamps).
Applicable Industries & Materials
Furniture Manufacturing: Routing, sizing, and grooving for custom cabinets, wardrobes, beds, and modular office desks.
Wooden Door Production: Deep 3D relief carving and precision milling of lock mortises and hinge plates on solid wood and MDF doors.
Advertising & Exhibits: Cutting and engraving of large-format acrylic letters, PVC signboards, and exhibition displays.
Compatible Materials: Solid Hardwood, MDF, Plywood, Particleboard, Melamine, Acrylic, PVC, ABS, and high-density plastics.
Why Choose Superstar CNC?
Proven Global Track Record: As our flagship model, the CX-1325 has been exported to over 114 countries. It is renowned for its ease of use, extreme durability, and accessibility of spare parts.
Factory-Direct Customization: Because we manufacture the machines from the ground up, we can customize the spindle power, motor type (Stepper vs. Servo), and table structure to perfectly match your factory's specific production requirements and budget.
Frequently Asked Questions (FAQ)
Q: Should I choose a water-cooled or air-cooled spindle for woodworking?
A: A water-cooled spindle runs quieter and dissipates heat highly effectively, making it ideal for shops doing long, 10-hour 3D relief carving jobs. An air-cooled spindle requires less maintenance (no water pumps or chillers to manage) and is preferred in environments that strictly process panel furniture or operate in freezing winter temperatures.
Q: Do I need a 380V 3-phase power supply to run this machine?
A: Not necessarily. While 380V is recommended for high-power spindles (4.5KW+) and heavy-duty vacuum pumps, we can configure the CX-1325 with a 3.0KW spindle to run perfectly on standard 220V single-phase power for smaller workshops.
Q: What software do I need to design parts for this machine?
A: The CX-1325 accepts standard G-code. You can use any major CAD/CAM design software that outputs G-code toolpaths, including ArtCAM, Vectric Aspire, Type3, Mozaik, or Cabinet Vision.
