Superstar CX-1325 4-Spindle Woodworking CNC Router for Panel Furniture

The Superstar CX-1325 4 Spindle Woodworking Cutter CNC Router is an automated, high-speed solution designed specifically for panel furniture and cabinet making. Featuring a whole steel structure and four independent air-cooling spindles (4.5KW/6KW), this machine seamlessly switches between tools to perform engraving, drilling, cutting, and milling in a single, uninterrupted operation. Driven by precision servo motors and the advanced LNC control system, the CX-1325 delivers high-speed processing (up to 25,000mm/min) with zero manual tool-change downtime.


SKU:
Availability:



Inquire

Working video

Product Description

Product Overview

The Superstar CX-1325 4-Spindle Woodworking Cutter (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the ideal "Smart Factory" upgrade for custom furniture manufacturers. Instead of stopping the machine to manually change router bits, this "4-Process" system carries four separate spindles that pneumatically switch into position in seconds.

Whether you need to drill 5mm shelf holes, cut 15mm cam-lock pockets, or route complex cabinet door profiles, the CX-1325 completes the entire sequence automatically. This uninterrupted workflow dramatically increases daily output while maintaining exact dimensional accuracy.

Core Advantages (The "Why Us")

Uninterrupted Tool Changing: The four-process switching head eliminates manual downtime, realizing true automation for complex nesting and routing tasks.
Strong Rigidity & No Deformation: The heavy-duty gantry is reinforced and thickened. The steel plate is processed by precision cutting, planing, and welding, followed by secondary tempering treatment to ensure long-term durability.
High-Stability Z-Axis: Features an integral cast iron side plate tempered at high temperatures to prevent deformation and ensure Y-axis travel accuracy.
Easy to Operate: Powered by the LNC Intelligent Control System with a user-friendly interface. It offers "foolproof" operation, allowing even operators without deep technical backgrounds to be quickly trained.

Technical Parameters

(Note: Parameters are strictly based on the standard CX-1325 / 4-Process multi-spindle specifications. Please update specific values if customized.)

Feature	Specification
Product Model	CX-1325 4 Spindle (CX-B1 Series)
XYZ Working Area	1300mm * 2500mm * 200mm
Traveling Accuracy	±0.05mm
Positioning Accuracy	±0.05mm
Table Surface	Vacuum table with vacuum pump
X, Y, Z Structure	X, Y gear wheel (rack), Z ball screw
Max. Rapid Travel Rate	50,000 mm/min
Max. Working Speed	25,000 mm/min
Spindle Configuration	4.5KW / 6KW Air cooling spindle * 4
Spindle Speed	0 - 18,000 r/min
Motor & Driver	Servo Motors and drivers
Working Voltage	AC 380V / 50HZ
Control System	LNC Control System
Guide Rail	25mm Square rail (TAIWAN TBI/HIWIN)

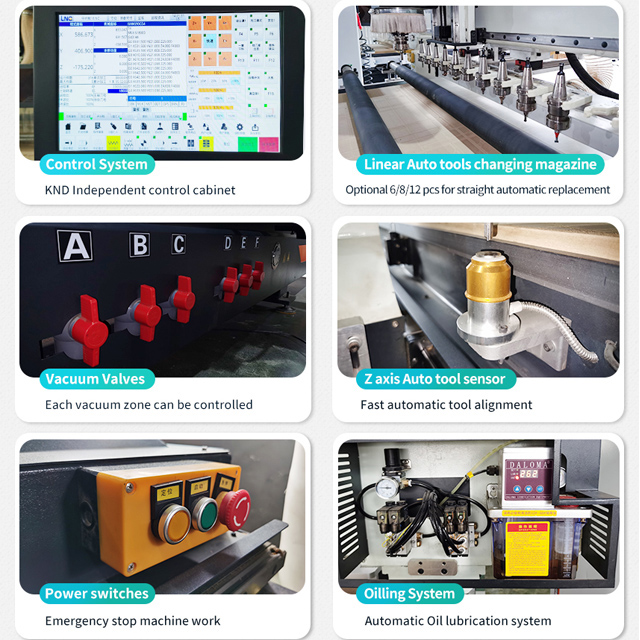

Detailed Configuration (Component Analysis)

Premium Guide Rails (Taiwan TBI/HIWIN):

Equipped with 25mm linear square guides featuring a double-row, four-row ball slide block design. This ensures heavy load-bearing capacity, smooth high-speed operation, and a long service life without precision loss.

High-Speed Servo Drive System:

Unlike stepper motors that can lose steps at high speeds, our closed-loop servo motors provide the rapid acceleration (50m/min rapid travel) and immense torque required for cutting thick MDF or solid wood effortlessly.

Zoned Vacuum Table:

The heavy-duty vacuum adsorption table firmly grips panel sheets of various sizes, preventing material shifting during aggressive cutting and milling operations.

Applicable Industries & Materials

This multi-spindle machine is highly optimized for the Wooden Furniture Industry:

Panel Furniture & Cabinets: High-speed cutting, drilling, and slotting for custom wardrobes, kitchen cabinets, and office desks.
Wooden Doors: Manufacturing composite doors, interior doors, and intricate cupboard door patterns.
Home Decor: Carving wavy boards, fine antique furniture patterns, screens, sofa legs, and headboards.
Suitable Materials: MDF, Plywood, Melamine board, Particleboard, and Solid Wood.

Why Choose Superstar CNC?

Trusted Manufacturing: Produced entirely in-house by Jinan Jinshengxing Machinery, guaranteeing strict quality control from steel welding to final assembly.
Customization Available: The size of the multi-axis CNC milling machine can be customized to fit your specific factory floor and material dimensions (e.g., upgrading to 1530 or 2040 sizes).
Global Support: We offer comprehensive video training, remote diagnostics, and a dedicated after-sales team to ensure your production line never stops.

Frequently Asked Questions (FAQ)

Q: How does this machine differ from an ATC (Automatic Tool Changer) router?

A: An ATC router uses a single spindle and physically picks up different bits from a tool magazine (taking 8-12 seconds per change). The CX-1325 4-Spindle machine has 4 tools already mounted in 4 separate spindles. They switch pneumatically in just 1-2 seconds, making it much faster for processes that require exactly 4 tools or less (like most cabinet making).

Q: Is the LNC system compatible with cabinet design software?

A: Yes, the LNC control system smoothly accepts G-code generated by popular nesting and cabinet design software like Cabinet Vision, Polyboard, Alphacam, and ArtCAM.

Q: Can I process materials thicker than 200mm?

A: The standard Z-axis working area is 200mm, which is more than enough for all panel furniture. If you need to process thicker materials or molds, please contact us to customize the gantry height.
