Product Overview

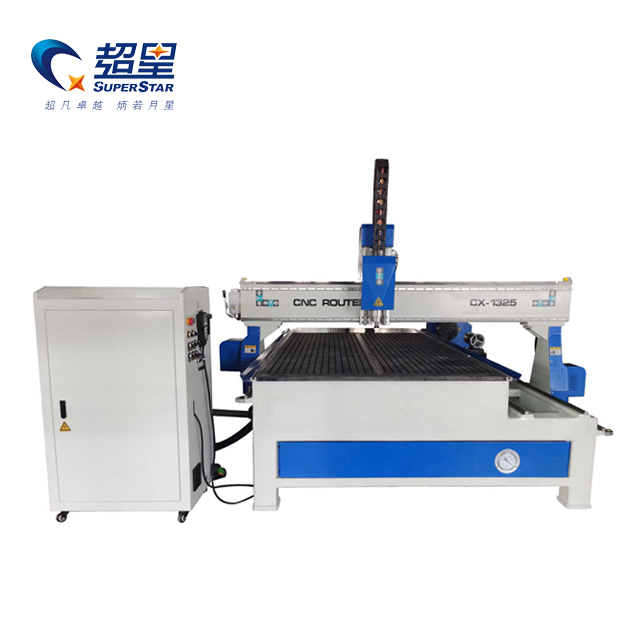

The Superstar CX-1325 Cylindrical CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) solves the problem of needing multiple machines for different carving tasks . Standard flatbed routers cannot process round table legs, while dedicated CNC lathes cannot cut flat cabinet doors. The CX-1325 features a full 1300x2500mm flatbed combined with an independent side-mounted rotary axis .
The entire machine bed undergoes strict aging treatment, and all iron castings are quenched and strengthened to prevent any structural deformation . The integral cast-iron side plates are high-temperature tempered to bear the immense weight of the moving gantry . This guarantees ultra-smooth, chatter-free cuts whether you are sizing heavy MDF boards on the table or carving a dense solid wood pillar on the rotary attachment.
Core Advantages

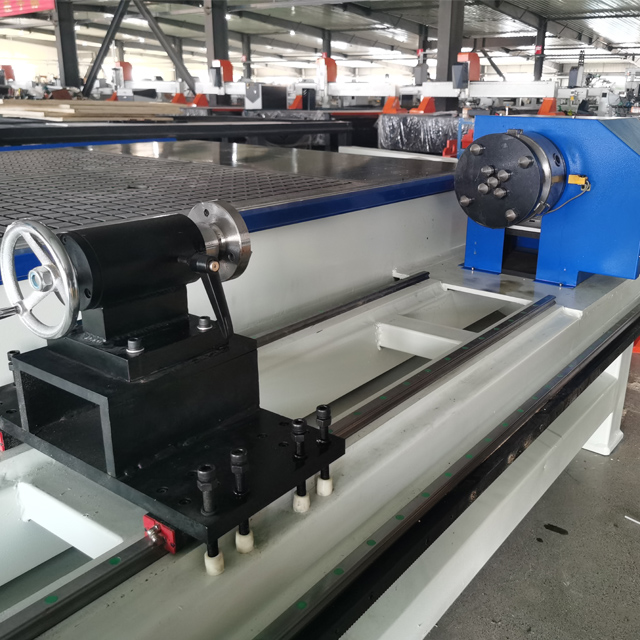

Dual-Function Design: The side-mounted rotary axis allows operators to carve 360° cylindrical objects (such as stair handrails and Buddha statues) without removing the flatbed table . When flat routing is needed, the spindle simply moves over the main table.
Hybrid Vacuum + T-Slot Table: The main table combines vacuum adsorption zones (for aggressively holding down flat MDF and plywood sheets) with aluminum T-slots (for mechanically clamping thick, irregularly shaped solid wood blocks) .
High-Speed Processing: Equipped with high-speed stepper/servo motors and utilizing a rack-and-pinion transmission on the X/Y axes, the machine achieves rapid processing speeds of 10 to 20 meters per minute .
Precision Guide Rails: Runs on Taiwan high-precision square linear guide rails. These widened rails offer a massive contact surface, delivering exceptional load-bearing capacity, ultra-smooth movement, and an extended service life .
Technical Parameters
Feature | Specification |
Model | CX-1325 |
Control System | DSP / NC Studio (4-Axis) |
Spindle | 3.0 KW HQD Water Cooling |
Spindle Speed | 0 - 24,000 RPM / min |

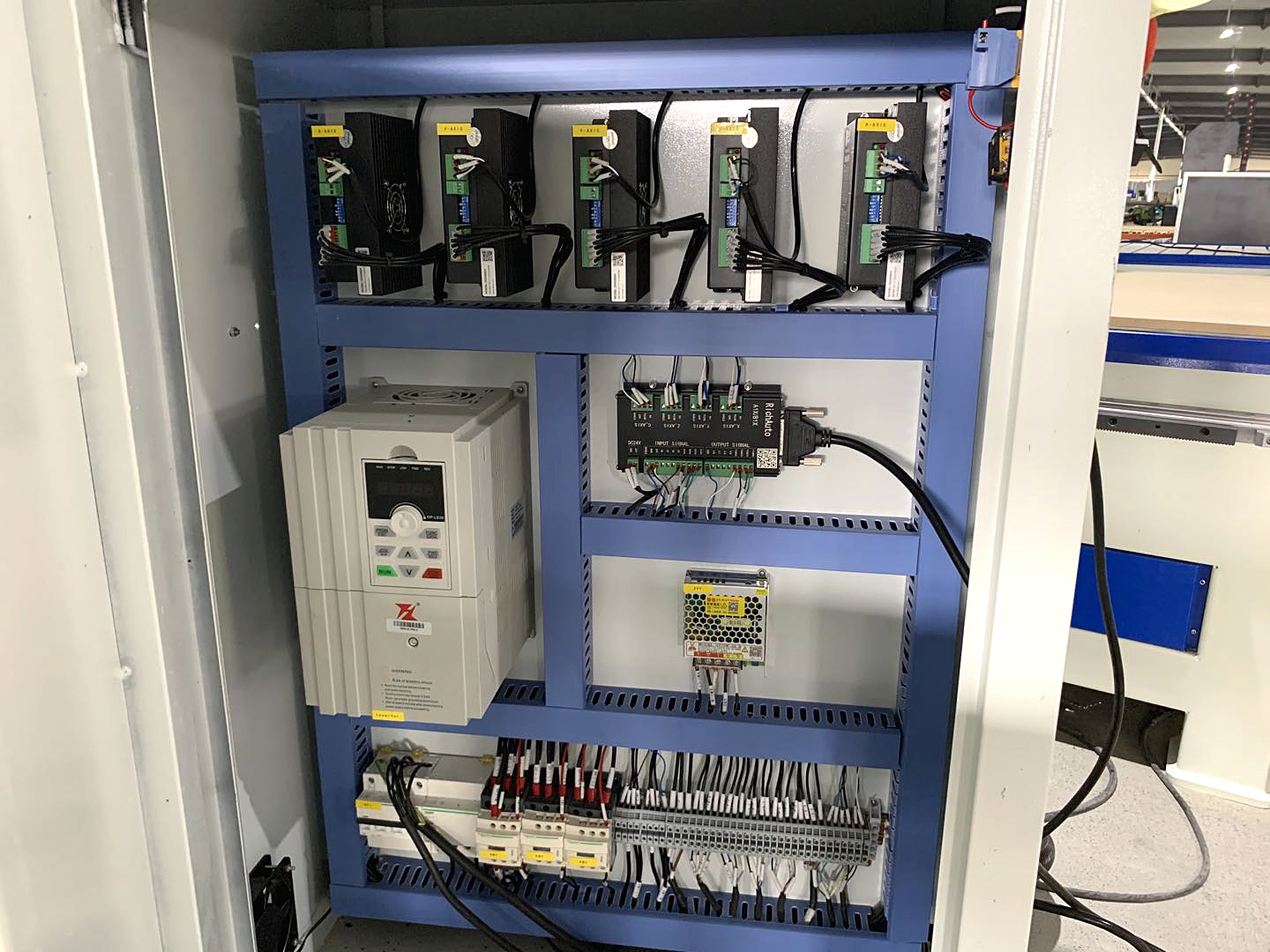

Motor & Driver | 2D811 Stepper / Servo |
Transmission (X/Y) | Rack and Pinion |
Transmission (Z) | Taiwan TBI 25 Ball Screw |
Processing Speed | 10m - 20m / min |
Table Structure | Vacuum Table + Aluminum T-Slot |
Software Compatibility | Ucancam / ArtCAM / Type3 |
Working Voltage | AC 380V |
Detailed Component Analysis
Water cooling is essential for continuous 3D rotary carving, which often requires the machine to run for many consecutive hours. It provides superior heat dissipation and runs significantly quieter than air-cooled alternatives .
The Z-axis utilizes a premium Taiwan TBI ball screw to manage the vertical plunge of the spindle. This ensures exact depth control, which is critical when carving delicate 3D reliefs on expensive solid wood .

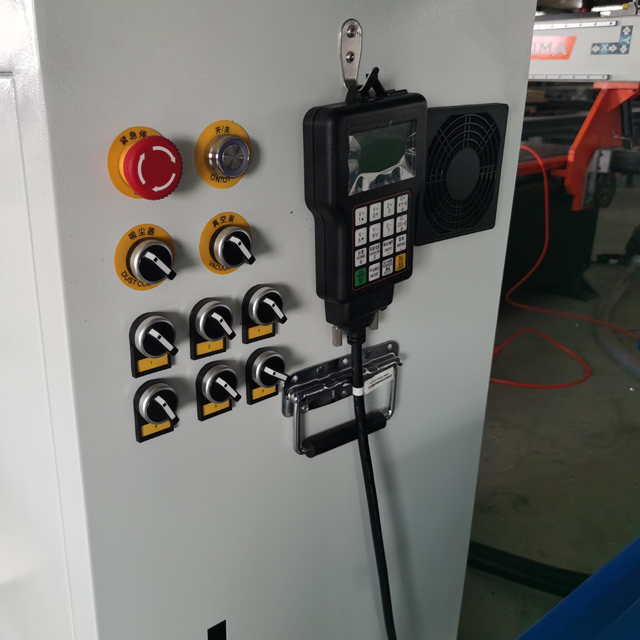

The advanced control system (DSP or NC Studio) seamlessly interpolates the X, Z, and Rotary axes simultaneously . This true 4-axis capability allows the bit to maintain the perfect angle as it moves over complex cylindrical contours.
Applicable Industries & Materials
Architectural Woodworking: Precision 360° carving of stair handrails, balusters, and massive decorative wooden pillars (dragon pillars) .
Relief Furniture Industry: Manufacturing flat embossed furniture panels alongside multi-dimensional bedposts and complex table legs .
Arts & Crafts: 3D sculpting of human figures, Buddha statues, and custom wooden handicrafts .
Compatible Materials: Solid Wood Boards, MDF, Acrylic Boards, ABS two-color boards, and high-density plastics .
Why Choose Superstar CNC?
Maximized ROI: By combining a full-size 4x8 router with a heavy-duty rotary lathe, you effectively get two industrial machines in a single footprint, drastically reducing your capital expenditure .
Industrial Rigidity: We do not use lightweight aluminum profiles for our gantry uprights. Our integral cast-iron side plates are quenched and tempered to guarantee the machine will never warp under heavy cutting loads .
Frequently Asked Questions (FAQ)
Q: Do I have to remove the flat table to use the rotary axis?
A: No. Because the rotary axis is mounted on the side of the machine frame, you simply program the spindle to travel past the flat table and over the rotary attachment. This saves massive amounts of setup time .
Q: Can this machine cut out cabinet doors?
A: Yes. When not using the rotary axis, the machine functions as a standard, high-speed 3-axis CNC router over the 1300x2500mm vacuum table, perfectly capable of nesting and cutting flat cabinet doors and panels .
Q: What software do I need to create 3D rotary files?
A: The machine is fully compatible with standard 3D CAD/CAM software capable of wrapping vectors or generating 4-axis tool paths, including ArtCAM, Type3, and Ucancam .
