Product Overview
The Superstar CX-1325 Linear ATC (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the foundational workhorse for modern panel furniture production. Standard 3-axis routers cause major bottlenecks when operators must stop the machine to manually swap between profile cutters and drill bits. The CX-1325 Linear ATC solves this by integrating a high-capacity tool magazine that changes bits automatically in seconds.
The foundation of the machine is a heavy-duty, 12mm thick industrial-class steel structure that has been seamlessly welded and subjected to a high-temperature tempering process. This aging treatment provides the bed with extreme structural rigidity, ensuring absolutely no distortion or micro-vibration during high-speed, multi-shift operations. Combined with an advanced control system featuring intelligent cross-border protection, it prevents mechanical crashes and protects your expensive panel materials.
Core Advantages

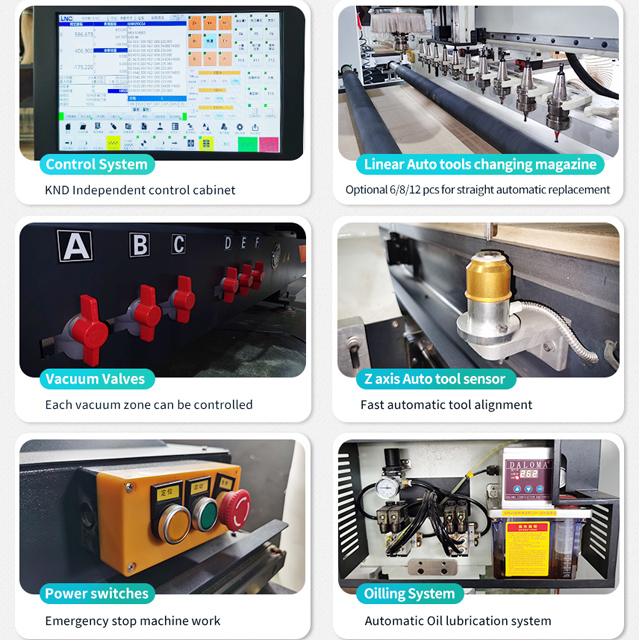

12-Slot Linear Automatic Tool Changer: A high-capacity inline tool magazine sits at the rear of the bed. The spindle automatically drops and retrieves up to 12 different tools, allowing complex cabinet designs (requiring drilling, dadoing, and cutting) to be processed in a single, uninterrupted cycle.
Intelligent Syntec Control: The Taiwan Syntec system reads complex nesting software files easily and features intelligent processing cross-border protection, preventing the spindle from traveling outside the safe cutting zone.
High-Adhesion Vacuum Table: Features a multi-zone vacuum adsorption table that strongly absorbs materials across different areas. This ensures uniform air pressure distribution, securely gripping even small, porous MDF cabinet parts without mechanical clamps.
Precision Drive Mechanics: X and Y axes utilize high-precision helical gear racks for smooth, quiet, and rapid motion, while the Z-axis uses a precise ball screw for exact plunge depth control.
Technical Parameters
Feature | Specification |
Model | CX-1325 Linear ATC CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 9KW Air Cooling ATC Spindle |
Spindle Speed | 0 – 24,000 RPM / min |
Control System | Taiwan Syntec Controller System |
Drive Motors | High-Power Servo Motor & Servo Driver |
Tool Magazine | 12 PCS Linear-Type Auto Change |
Transmission (X/Y) | Helical Gear Rack & Pinion |
Transmission (Z) | Taiwan Precision Ball Screw |
Guide Rails | Taiwan Square Linear Rails |
Machine Accuracy | ± 0.05 mm |
Working Table | Vacuum Adsorption Table |
Working Voltage | AC 380V / 50-60HZ / 3-Phase |
Detailed Component Analysis
Provides the massive cutting force required to slice through thick, dense multi-layer boards in a single pass. The air-cooling mechanism eliminates the need for water chillers, significantly reducing daily maintenance.
Unlike stepper motors that can lose steps under heavy loads, the integrated servo motors provide closed-loop feedback. This guarantees ultra-smooth acceleration, high torque, and perfect positioning accuracy (±0.05mm) even when cutting at top speeds.
The strong rigidity of the 12mm thick tempered steel bed ensures the heavy gantry absorbs the intense kinetic energy of rapid direction changes, guaranteeing your cabinet parts are cut flawlessly square and ready for immediate edge banding.
Applicable Industries & Materials
Custom Cabinetry & Wardrobes: High-speed nesting, cutting, and drilling of complex panel furniture components.
Wooden Door Manufacturing: Routing 3D relief panels, lock mortises, and hinge pockets on solid wood and MDF doors.
Architectural Millwork: Carving decorative screens, acoustic wall panels, and exhibition displays.
Compatible Materials: MDF, Plywood, Particleboard, Solid Wood, Acrylic, PVC, ABS, and composite plastics.
Why Choose Superstar CNC?
Optimized for Furniture Lines: The CX-1325 Linear ATC is the perfect central hub for a medium-to-large furniture factory. It integrates perfectly with CAD/CAM nesting software to maximize material yield and minimize waste.
Factory-Direct Value: As the original manufacturer in Jinan, we provide high-end configurations (12-tool ATC, Syntec, Servos) at highly competitive price points compared to Western brands.
Global Export Quality: We offer complete English technical support, rigorous factory testing before shipment, and global access to replacement parts to ensure your production line never stops.
Frequently Asked Questions (FAQ)
Q: Is a linear tool changer better than a disc (carousel) tool changer for cabinets?
A: A linear tool changer is a highly reliable, straightforward mechanism that sits at the rear of the bed and holds more tools (usually 12 pcs) than a standard disc changer (usually 8 pcs). While the spindle must travel to the end of the bed to swap tools, the larger tool capacity is ideal for complex cabinet jobs requiring numerous drilling and profiling bits.
Q: Does the machine require clamps to hold down the wood?
A: No. The vacuum table aggressively pulls the MDF or plywood flat against the table. This eliminates the need for mechanical clamps, saving time and preventing the spindle from accidentally hitting a clamp during high-speed nesting.
Q: Can this machine perform 3D relief carving?
A: Yes. The Taiwan Syntec control system smoothly interpolates the X, Y, and Z axes simultaneously. Combined with the correct V-bit or ball-nose tool, the machine excels at carving deep, intricate 3D reliefs on solid wood doors and panels.
