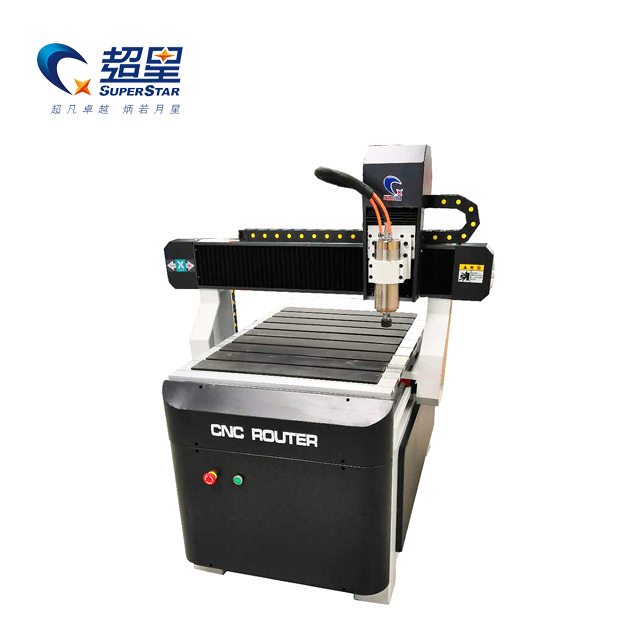

Superstar CX - 6090 Small Woodworking Cutting Machine


SKU:
Availability:



Inquire

The Superstar CX-6090 Small Woodworking Cutting Machine is not a hobby toy—it is a condensed industrial CNC workstation designed for precision small-batch production. Unlike lightweight aluminum desktop routers, the CX-6090 is built on a solid cast iron frame, ensuring zero vibration even when milling aluminum or brass. Featuring a 600mm x 900mm T-slot table and a high-frequency water-cooled spindle, it delivers professional-grade edge finishes on acrylic, wood, and soft metals. It is the ideal entry-level machine for signage businesses, mold makers, and educational institutions.

Model:
CX-6090
Brand:
Superstar

Working Video

Product Description

Superstar CX-6090 Industrial Desktop CNC Router

Product Overview

The Superstar CX-6090 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) proves that high precision doesn't require a large footprint. This machine is engineered for workshops where space is at a premium but accuracy cannot be compromised.

By utilizing a fully cast iron bed and gantry, the CX-6090 maintains structural stability that welded steel frames cannot match at this size. It is widely used for processing advertising signage, architectural models, and precision industrial components.

Core Advantages

Vibration-Free Cast Iron Body: The entire machine structure is cast from heavy-grade iron. This mass absorbs cutting vibrations, preventing "chatter marks" on rigid materials like aluminum and acrylic.
High-Precision Transmission: Unlike larger machines that use rack-and-pinion, the CX-6090 uses TBI Ball Screws on all three axes (X, Y, Z). This guarantees transmission accuracy down to 0.01mm.
Continuous Duty Cycle: Equipped with an industrial Water-Cooled Spindle, allowing the machine to run for hours without overheating, reducing noise and extending bearing life.
Offline Control System: Features the user-friendly DSP Handheld Controller (RichAuto), allowing you to run jobs directly from a USB stick without needing a computer attached to the machine in a dusty shop environment.

Technical Parameter

Control system	Mach3 Control System
Spindle power	3kw water Cooling Spindle
Model	6090
Traveling Positioning Accuracy	±0.10mm
Repositioning Positioning Accuracy	±0.10mm
driving system	stepper driver and motor
transmission	helical rack pinion
Color	Customer Actual Requirements
Pack size	220011501150mm
XYZ working area	600900100mm
Table	T-slot Table with PVC

Detail Image

Detailed Configuration & Component Analysis

TBI Ball Screw Transmission:

For small working areas, ball screws are superior to rack gears. They offer smoother movement and higher resolution, which is critical when engraving tiny text (e.g., 2mm tall letters) on nameplates or badges.

Integral Cast Iron Frame:

Many competitors use aluminum profiles for the 6090 size. We use cast iron because it does not deform over time. This rigidity allows the CX-6090 to mill soft metals (copper, brass, aluminum) with the same ease as wood.

Linear Guide Rails:

We install dust-proof linear guide rails that provide high load-bearing capacity in all directions, ensuring the gantry remains square and true year after year.

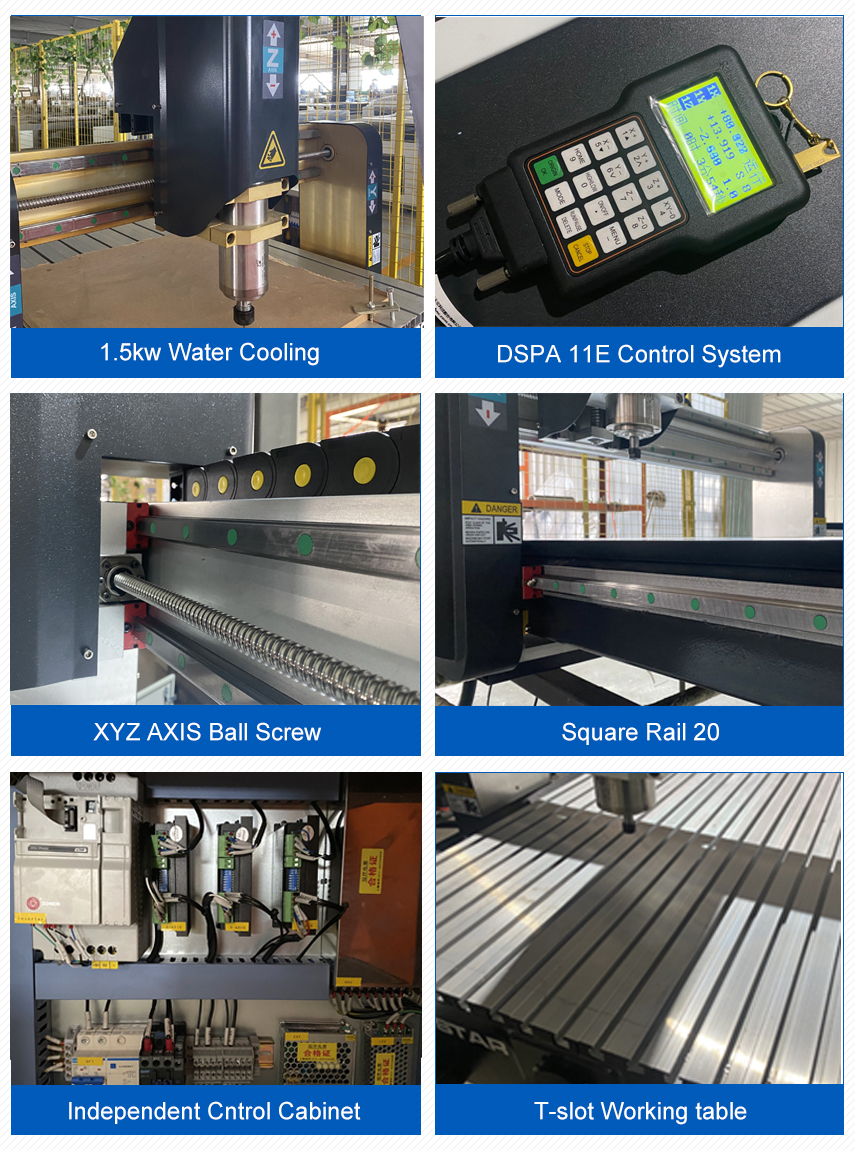

small engraving machine detail

Applicable industries

Applicable Industries & Materials

Advertising: Acrylic letters, double-color board badges, crystal signage, and LED lamp cutouts.
Mold Making: Copper electrodes, aluminum molds, and artificial stone crafting.
Woodworking: Relief carving on redwood boxes, jewelry chests, and classic furniture components.
Crafts: Engraving on PCB boards, PVC, and carbon fiber sheets.

small cnc router sample

superstar cnc Quality test

Why Choose Superstar CNC?

Plug-and-Play Design: The machine ships fully assembled. You only need to install the software/driver, fill the water tank, and start cutting.
Education Friendly: The CX-6090 is perfect for vocational schools and universities teaching CNC programming due to its safety, manageable size, and industrial controls.
Lifetime Support: As a factory, Jinshengxing Machinery keeps all spare parts in stock. If you break a sensor or need a new collet, we ship it immediately.

Frequently Asked Questions (FAQ)

Q: Can this machine cut aluminum?

A: Yes. Thanks to the cast iron frame and water cooling system, it cuts aluminum, brass, and copper effectively. We recommend using a mist sprayer for metal work to extend tool life.

Q: Is it difficult to learn for a beginner?

A: Not at all. The DSP controller is intuitive. We provide video tutorials covering everything from setting the "Z-zero" point to loading files. Most users are cutting within 2 hours of unboxing.

Q: Does it run on standard household power?

A: Yes, the standard configuration is Single Phase 220V (or 110V customized), making it compatible with most residential and small workshop power outlets.

Q: What software do I need?

A: It works with any CAM software that outputs G-Code, such as ArtCAM, Aspire, Fusion 360, or Type3.
