Product Overview

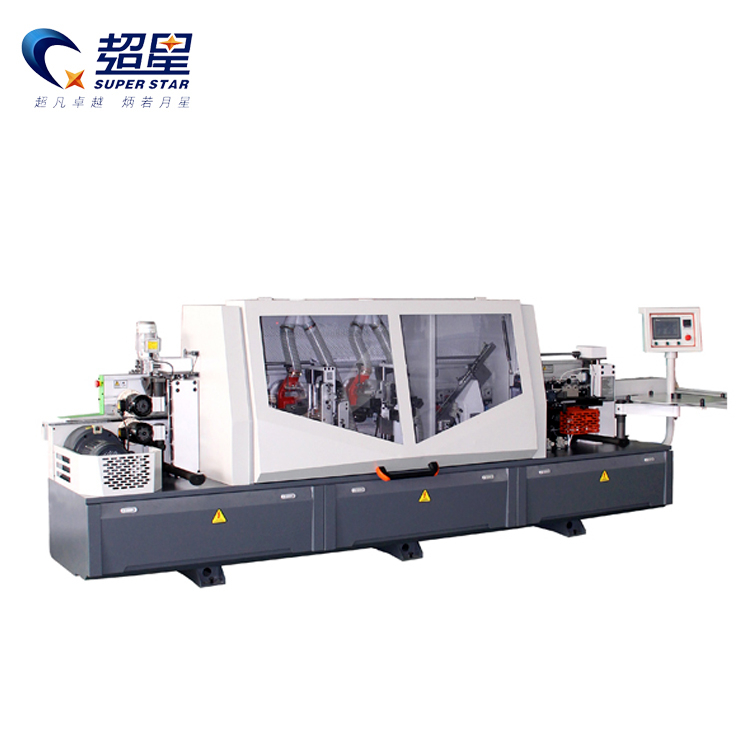

The Superstar CX- Automatic Edge Banding Machine (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is an essential component of any high-volume cabinet or panel furniture production line. Designed for straight linear edge banding, this machine eliminates the manual labor, glue inconsistencies, and uneven trimming associated with semi-automatic or manual edge banders.
By integrating multiple finishing stations into one continuous track, the machine processes boards rapidly (up to 22m/min). The advanced finishing device removes excess edge banding material with micrometer precision, while the final buffing wheels restore the color of the PVC and remove residual glue, ensuring the workpiece is immediately ready for assembly or packaging.
Core Advantages

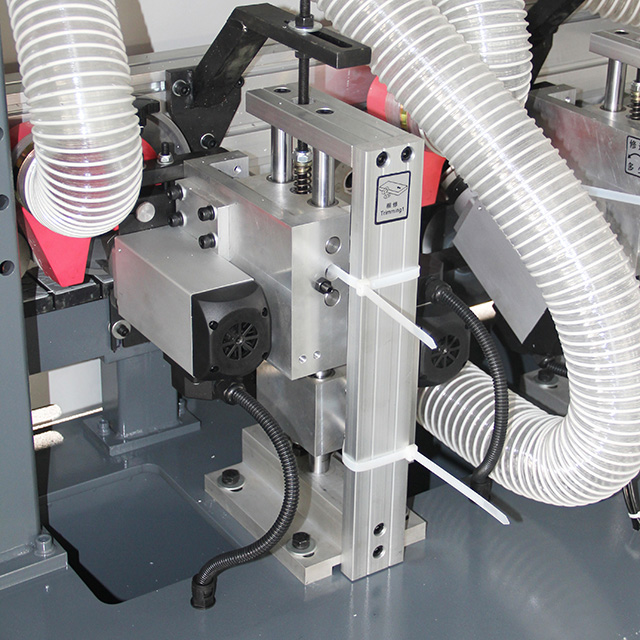

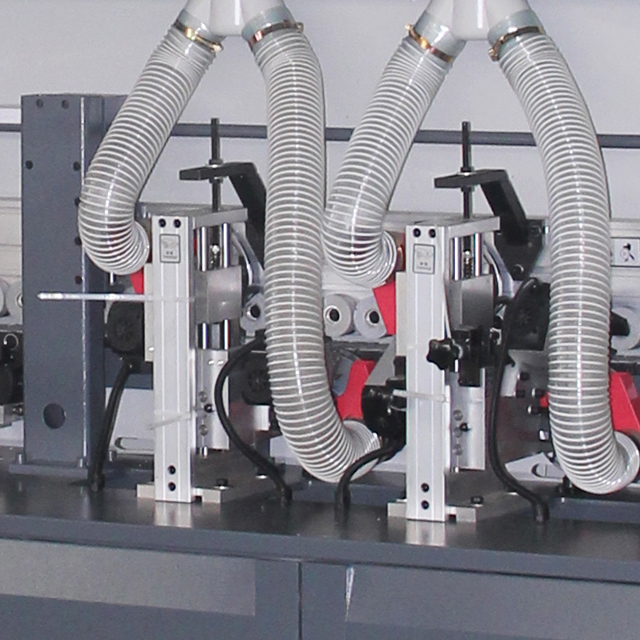

High-Frequency Trimming Motors: The rough and fine trimming stations use high-speed, high-frequency motors (typically 12,000 to 18,000 RPM) to ensure a perfectly clean cut without chipping the edge tape or the melamine surface of the board.
Automatic Tracking Structure: The end-cutting unit features an intelligent tracking mechanism. As the board moves along the conveyor at high speed, the saws travel with it momentarily to execute a perfect 90-degree flush cut at both the front and rear ends.

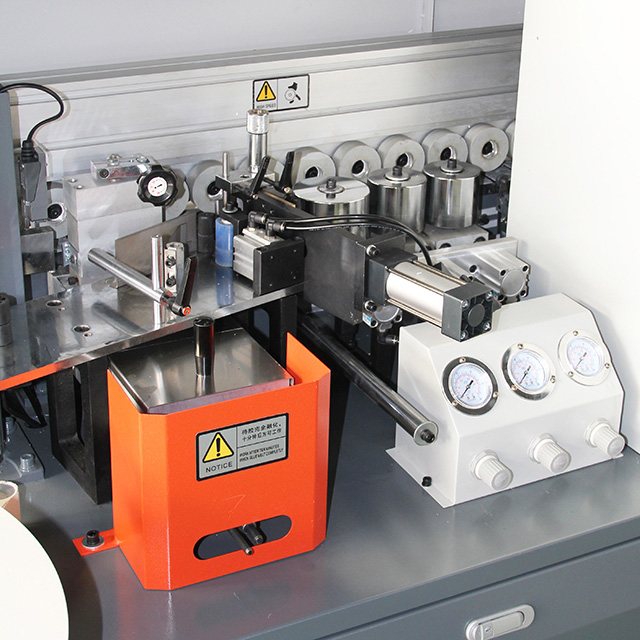

Even Glue Distribution: The Teflon-coated glue pot prevents the hot melt adhesive (EVA/PUR) from burning. Its cylinder-controlled glue door ensures a highly stable and uniform application of glue, creating a seamless, invisible bond line.
Heavy-Duty Frame: Built on a heavily welded and tempered steel frame, the machine absorbs vibration from the high-speed motors, guaranteeing that the trimming knives remain perfectly aligned with the board over years of continuous use.
Technical Parameters
Feature | Specification |
Model Series | Superstar CX- Automatic Edge Bander |
Edge Tape Material | PVC, ABS, Acrylic, Melamine, Wood Veneer |
Panel Material | MDF, Particleboard, Plywood, Solid Wood |
Panel Thickness | 10 mm - 60 mm |
Edge Tape Thickness | 0.4 mm - 3.0 mm |
Min. Panel Length | ≥ 120 mm |
Min. Panel Width | ≥ 60 mm |
Feeding Speed | 15 - 22 m/min (Adjustable) |
Air Pressure Required | 0.6 MPa (6 Bar) |
Control System | PLC Touch Screen Control (Delta/Similar) |
Total Motor Power | 12.5 KW |
Working Voltage | AC 380V / 50HZ / 3-Phase |
Machine Weight | 2000 - 2500 KG |
Detailed Configuration & Component Analysis

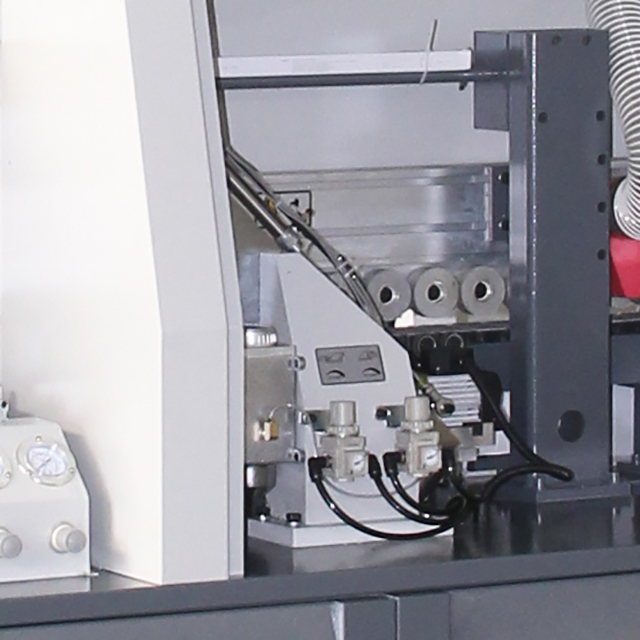

Following the glue application, the edge tape is pressed against the board by a series of pneumatic rollers (one large main roller and several smaller supplementary rollers). This squeezes out air bubbles and ensures a tight fit, even on thicker 3mm tapes.

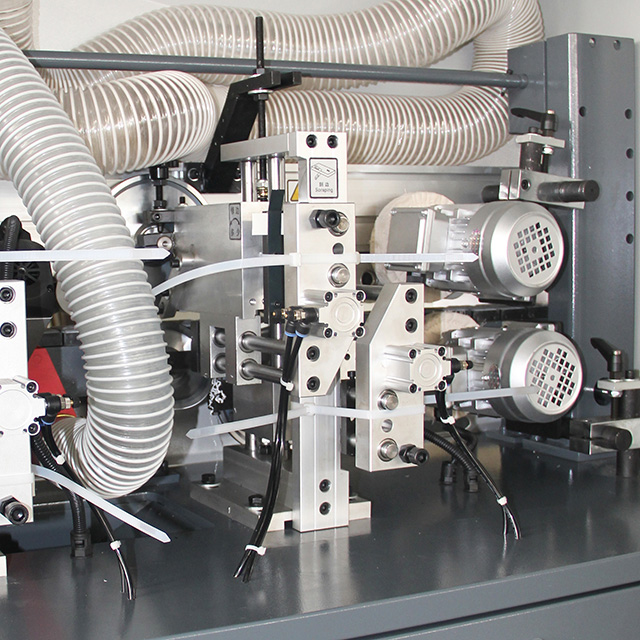

After the fine trimming unit creates the radius (curve) on the edge of the tape, the scraping unit uses a super-hard alloy R-knife to scrape away fine machining lines. This makes the edge perfectly round and smooth to the touch.
The final station features dual independent cloth polishing wheels. They rapidly polish the top and bottom edges of the panel, removing any squeezed-out glue and restoring the factory sheen to the PVC tape.
Applicable Industries & Materials
Custom Cabinetry: Kitchen cabinets, bathroom vanities, and wardrobe doors.
Office Furniture: Desks, conference tables, and bookshelves requiring durable, thick PVC edge protection.
Commercial Displays: Retail shelving and exhibition booths made from melamine-faced chipboard (MFC).
Interior Doors: Edge sealing for composite and flush wooden doors.
Why Choose Superstar CNC?
One-Stop Production Line: Jinan Jinshengxing Machinery manufactures not just edge banders, but also CNC nesting routers and side drilling machines, allowing you to equip your entire factory with a synchronized, compatible system.
User-Friendly Interface: The machine is operated via a high-definition PLC touch screen. It provides clear visual feedback, fault alarms (like low air pressure), and allows operators to turn individual functional stations on or off with a single tap.
CE Certified Quality: Our edge banders meet strict EU electrical and safety standards, featuring anti-pinch devices and enclosed safety hoods to protect operators.
Frequently Asked Questions
Q: Does this machine do corner rounding (profiling)?
A: This depends on the exact CX- model you select. Standard automatic models perform end-cutting and top/bottom trimming. If you require "Corner Rounding" for perfectly finished door fronts, please request our CX-368D or CX-465D models which include the dedicated corner profiling station.
Q: Can it use PUR glue?
A: The standard glue pot is designed for EVA hot melt glue. If you require water-resistant and heat-resistant PUR gluing (popular for high-end kitchen and bathroom furniture), please let us know so we can upgrade the machine with a PUR glue system.
Q: What is the maintenance required?
A: The machine is equipped with a centralized lubrication system. Routine maintenance involves keeping the glue pot clean, ensuring the dust extraction hoods are clear, and periodically checking the sharpness of the trimming knives and scrapers.
Achieve the Perfect Edge
Don't let poor edge banding devalue your furniture. Upgrade to the Superstar CX Automatic Edge Banding Machine for flawless, high-speed results.
