Product Overview

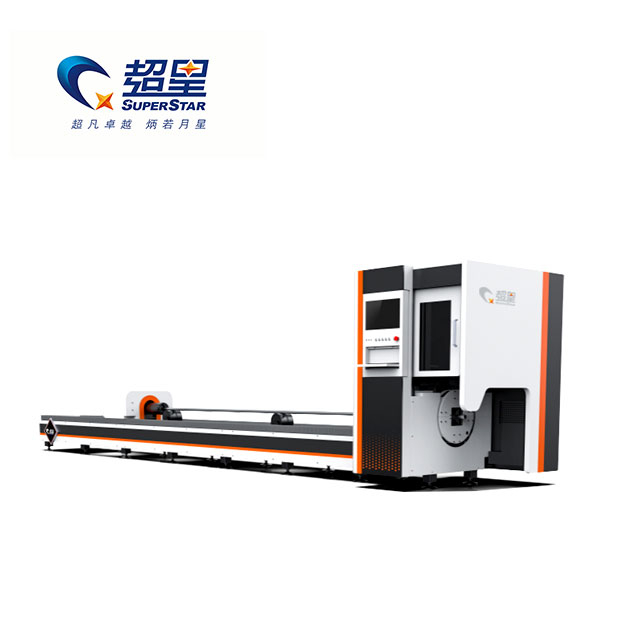

The Superstar 6016L (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) revolutionizes metal tube fabrication. In the past, creating complex joints for tubular structures required multiple machines and manual measuring. The 6016L integrates all these processes into one high-speed CNC system.
By utilizing advanced tube-cutting software, operators can easily import 3D CAD files. The machine then automatically calculates the optimal path to cut, slot, and pierce the tube. Whether processing thin-walled stainless steel for decorative lighting or thick carbon steel for agricultural machinery, the 6016L guarantees burr-free edges, tight tolerances, and minimal material waste.
Core Advantages (The "Why Us")
Intelligent Pneumatic Chucks: Features front and rear auto-centering pneumatic chucks. They automatically adjust clamping force based on the tube's thickness, preventing thin-walled pipes from crushing while ensuring heavy pipes do not slip during high-speed rotation.
High-Speed Processing: Equipped with precision servo motors and a lightweight gantry, the machine achieves rapid acceleration and high-speed turning, dramatically reducing the cycle time per part.
Zero-Tail Material Design: The rear chuck can extend deeply through the front chuck, minimizing the "tail waste" (the un-cuttable end of the pipe) to save expensive raw materials.
Welded Heavy-Duty Bed: The machine chassis undergoes rigorous stress-relief annealing. This ensures the frame maintains absolute straightness over its 6-meter length, preventing vibration and ensuring perfectly aligned cuts.
Technical Parameters
Feature | Specification |
Model | CX-6016L Tube Laser Cutter |
Max. Tube Length | 6000 mm |
Round Tube Diameter Range | Φ 20 mm – 160 mm |
Square Tube Dimension Range | 20×20 mm – 110×110 mm |
Laser Power Options | 1000W / 1500W / 2000W / 3000W |
Laser Source Brand | MAX / Raycus / IPG |
Laser Cutting Head | Raytools / WSX Auto-Focus |
Control System | CypTube / FSCUT3000S Tube Cutting System |
Chuck Type | Dual Automatic Pneumatic Chucks |
Drive System | High-Precision Servo Motors |
X/Y Axis Positioning Accuracy | ±0.05 mm |
Repeated Positioning Accuracy | ±0.03 mm |
Max. Rotation Speed | 100 - 120 RPM |
Working Voltage | AC 380V / 50HZ / 3-Phase |
Detailed Configuration (Component Analysis)
This industry-standard tube cutting software includes powerful features like "center deviation compensation." If a raw metal tube is slightly bent or warped, the software detects the deviation in real-time and adjusts the laser path, ensuring holes and cutouts remain perfectly centered.
The cutting head features an internal motorized lens. When piercing thick steel, it automatically raises the focal point, and then lowers it for the cut. This prevents piercing explosions and extends the life of the protective lenses.
To prevent long, heavy cut parts from dropping and getting damaged, the machine is equipped with a pneumatic support system that raises up to "catch" the pipe during the final cut.
Applicable Industries & Materials

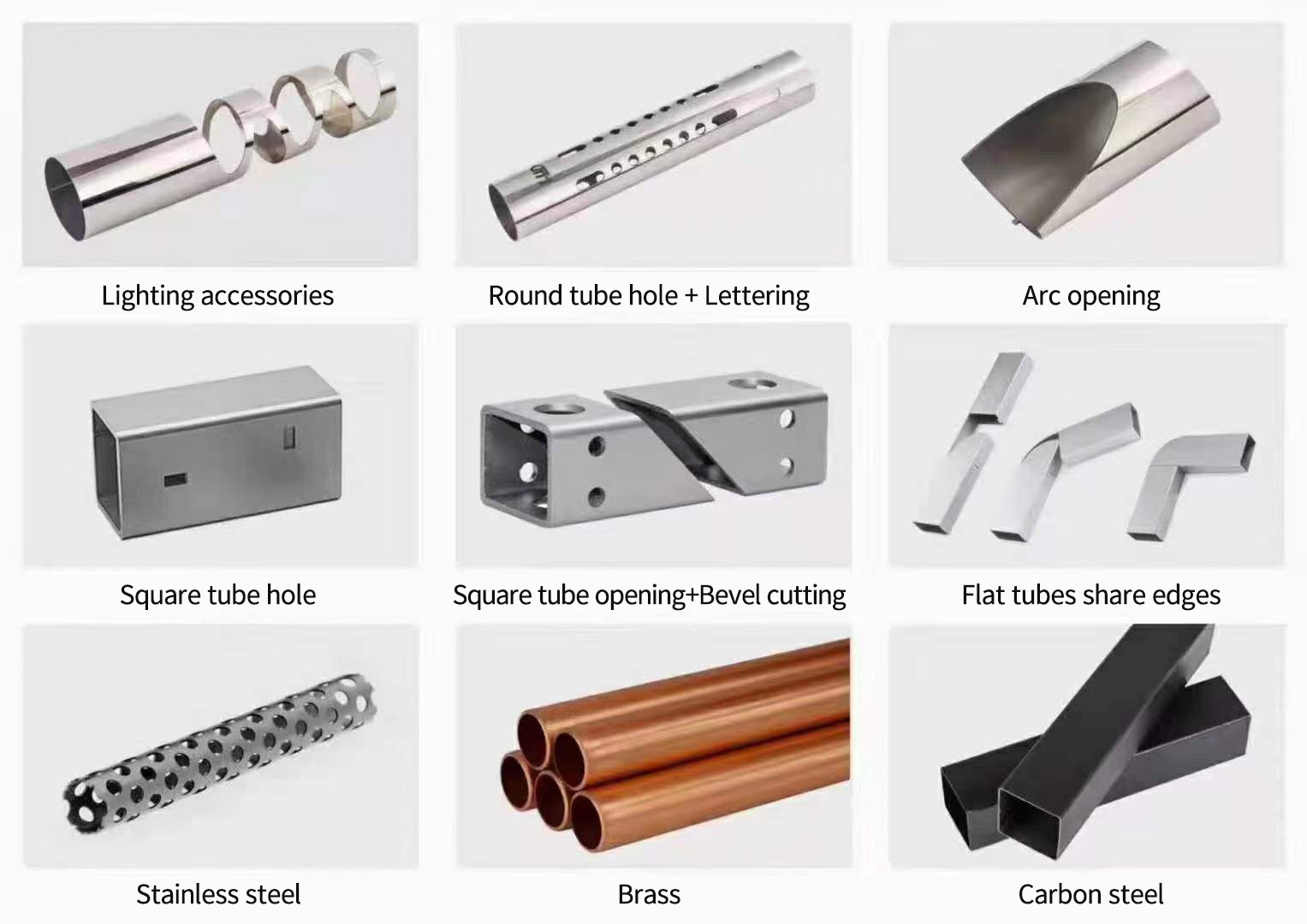

Fitness Equipment: Cutting heavy-gauge structural tubing for treadmills and weight racks.
Metal Furniture: Precision slotting and slicing of stainless steel and aluminum legs for tables and chairs.
Automotive & Motorcycle: Fabrication of roll cages, exhaust pipes, and chassis components.
Structural Engineering: Processing pipes for handrails, stadium frameworks, and shelving units.
Compatible Materials: Carbon Steel, Stainless Steel, Aluminum Alloy, Brass, Copper, and Galvanized Pipes.
Why Choose Superstar CNC?
Industrial Reliability: Built by Jinshengxing Machinery, a factory with decades of CNC manufacturing experience. We control the welding and milling of the machine bed in-house to guarantee quality.
Cost-Effective Investment: The "L" (Light/Standard) series is optimized to provide the best ROI for small to medium fabrication shops, offering premium features without the inflated cost of oversized machines.
Global After-Sales Service: We offer comprehensive English manuals, remote software training, and prompt spare parts shipping to keep your production running smoothly.
Frequently Asked Questions (FAQ)
Q: Can it cut open profiles like Angle Iron or Channel Steel?
A: Yes, with the advanced CypTube software and specific chuck jaws, the 6016L can be programmed to cut angle iron, channel steel, and other irregular profiles.
Q: What is the maximum thickness it can cut?
A: This depends entirely on the laser power you select. For example, a 1500W laser can typically cut up to 6mm carbon steel and 4mm stainless steel. A 3000W laser can cut up to 10-12mm carbon steel. We will match the power to your specific needs.
Q: How do I load the heavy 6-meter pipes?
A: The standard 6016L is manually loaded. However, if you process large volumes, we can integrate an Automatic Bundle Loading System that feeds pipes into the machine automatically.
Q: Does the chuck leave marks on the pipe?
A: No. The pneumatic chucks feature smooth roller rollers and adjustable air pressure, allowing you to grip polished stainless steel or aluminum securely without scratching the surface.
Master Your Pipe Fabrication
Eliminate bottlenecks and improve your joint accuracy. Contact Superstar CNC today for a customized quote on the 6016L Tube Laser Cutter.
