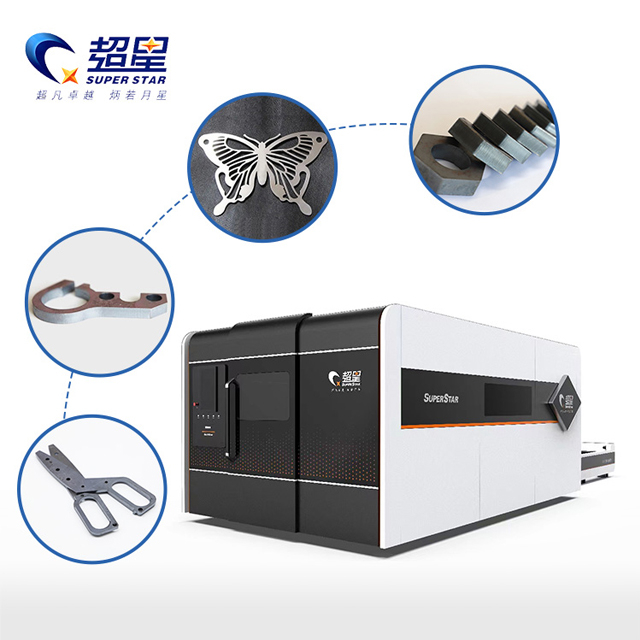

Superstar CX-3015 Full Cover Sheet Metal Fiber Laser Cutting Machine

Product Overview

The Superstar CX-3015 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) represents the gold standard for environmentally compliant, high-production metal cutting. As global safety and emission standards become stricter, traditional open-bed lasers are being phased out. This fully enclosed machine solves safety and dust challenges while drastically improving factory output.

Equipped with a high-speed automatic exchange platform, the machine allows operators to load and unload heavy metal sheets on one pallet while the laser continuously cuts on the other. It is the perfect upgrade for manufacturers in automotive, aerospace, and heavy machinery looking to cut metal plates with zero burrs and micrometer accuracy.

Core Advantages

• Fully Enclosed Environmental Protection: The CE-standard closed structure contains laser radiation and features a built-in dust removal system, keeping your factory floor clean and protecting operators' eyes and lungs.

• Automatic Exchange Platforms: Dual work tables swap positions in seconds, slashing standby time by 50% and keeping the laser head cutting continuously.

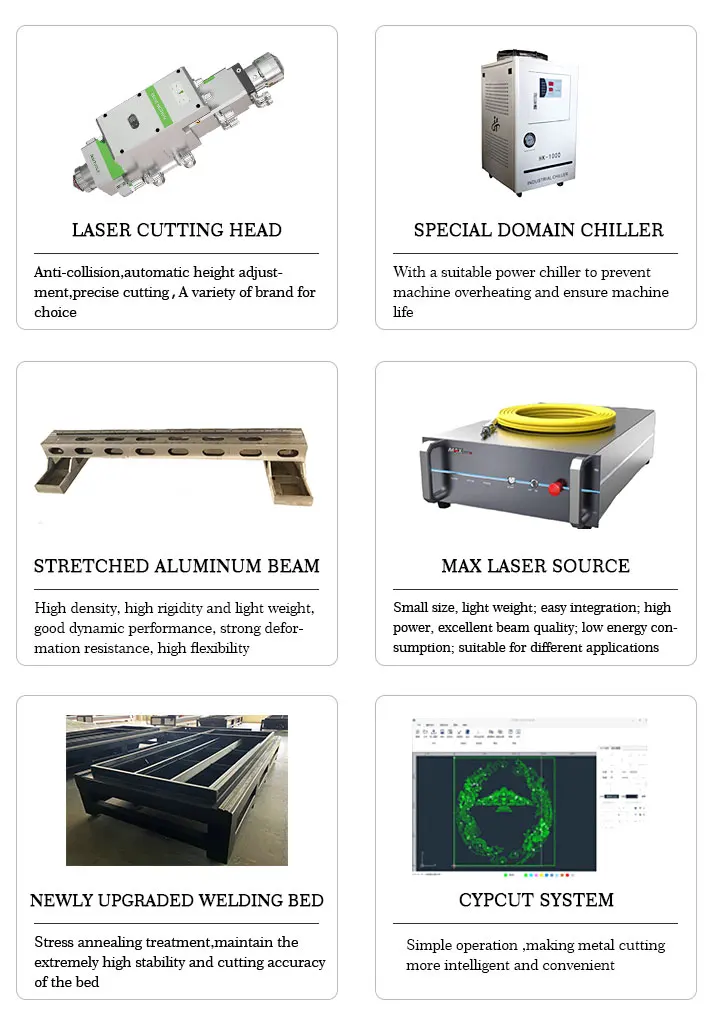

• Intelligent Auto-Focus: The Raytools automatic cutting head adjusts focus dynamically based on material thickness, preventing piercing errors and ensuring smooth cuts on uneven plates.

• Aerospace Aluminum Gantry: The stretched aluminum gantry is lightweight yet incredibly rigid, allowing the Japan Fuji servo motors to accelerate rapidly without sacrificing positioning accuracy (±0.05mm).

Technical Parameters

Detailed Configuration & Component Analysis

• Cypcut Control System:

The industry-leading Cypcut software provides powerful nesting capabilities, edge-seeking functions, and real-time monitoring. It simplifies the cutting of complex DXF/DWG geometries, saving material and minimizing operator training time.

• Premium Japanese & Taiwanese Motion Components:

By integrating Japan Fuji servos, Beitto reducers, and Taiwan HIWIN guide rails, the machine achieves flawless kinematic synchronization. This eliminates edge serration (chatter marks) when cutting sharp corners or tiny holes.

• Heavy-Duty Welded Bed:

The machine bed undergoes rigorous stress relief annealing to ensure it will never deform under the intense heat of the laser or the heavy weight of thick carbon steel plates.

Applicable Industries & Materials

• Heavy Industry: Manufacturing pressure vessels, chemical machinery, shipbuilding components, and engineering machinery.

• Automotive & Transportation: Cutting chassis parts for cars, motorcycles, and public transit vehicles.

• Advertising & Decoration: Producing high-end metal signage, logos, and architectural metal screens.

• Compatible Materials: Carbon steel, stainless steel, aluminum sheets, galvanized sheets, copper, brass, and titanium plates.

Why Choose Superstar CNC?

• Decades of Expertise: Since 2003, Jinan Jinshengxing Machinery has been exporting high-precision industrial solutions to over 114 countries.

• Customization (OEM/ODM): We support custom machine sizes (up to 8000x2500mm) and custom laser power configurations to meet your specific factory layout and production goals.

• Global Support: We provide comprehensive English manuals, video training, and remote diagnostics to ensure your laser cutter maintains maximum uptime.

Frequently Asked Questions (FAQ)

Q: Does the machine come with an exhaust fan for the enclosed cover?

A: Yes, the full-cover design is equipped with a professional dust extraction and ventilation system to safely remove fumes generated during metal cutting.

Q: How does the automatic exchange platform work?

A: The machine has two separate cutting beds. While table A is inside the enclosure being cut, table B is outside. The operator unloads finished parts and loads a new raw sheet onto table B. Once table A is finished, the tables swap positions automatically via a motorized track.

Q: Do I need auxiliary gas for cutting?

A: Yes. Fiber lasers require assist gases to blow away molten metal. Oxygen is typically used for carbon steel (for thicker cuts), Nitrogen is used for stainless steel and aluminum (to prevent oxidation), and compressed air can be used for thin sheet metals to save costs.

Q: Is the water chiller included?

A: Yes, an industrial-grade Hanli water chiller is included as standard equipment to keep the laser source and cutting head at the optimal operating temperature.

Modernize Your Metal Fabrication Today

Invest in safety, speed, and precision. Contact Superstar CNC today for a factory-direct quote on the CX-3015 Full Cover Fiber Laser Cutting Machine.
