Product Overview

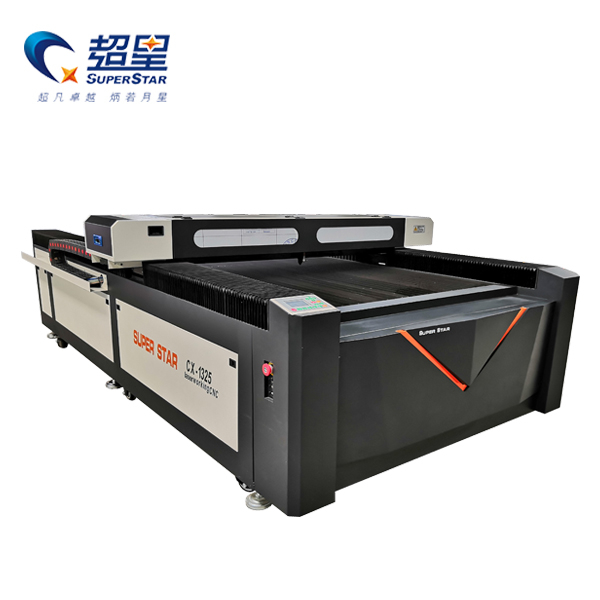

The Superstar CO2 Laser Machine (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) provides exceptional versatility for businesses working with a wide range of non-metallic materials. Whether you are cutting large 4x8 ft (1300x2500mm) sheets of acrylic for signage or engraving intricate wooden models, this machine is engineered for reliability.
Unlike entry-level laser cutters that suffer from vibration, this machine features a heavy-duty steel structure bed and high-quality belt transmission. This ensures that even at high speeds, the laser delivers micrometer-level precision (±0.01mm resetting accuracy), resulting in perfectly smooth cuts that require zero post-processing.
Core Advantages
24-Hour Continuous Operation: The heavy steel bed and advanced high-speed motor drive system are designed for heavy industrial use. The machine can run continuously for 24 hours without losing steps or synchronization.
Intelligent Touch Screen Control: Features a user-friendly touch screen system that supports USB offline use. Operators can run files directly from a flash drive without a dedicated PC attached to the machine.
Breakpoint Continuation: In the event of a power outage or planned pause, the machine's memory saves the exact coordinates. It can resume cutting or engraving right from the breakpoint, saving expensive raw materials.
Flawless Cutting Edges: The high-quality belt transmission and stable sealed CO2 laser tube guarantee extremely smooth cutting edges with absolutely no sawtooth effect on thick acrylic or MDF.
Technical Parameters
Feature | Specification |
Model | CX-1325, CX-1390, CX-6090 |
Processing Area | 1300mm × 2500mm / 1300mm × 900mm / 600mm × 900mm |
Laser Power Options | 80W / 100W / 130W / 150W / 180W |
Laser Type | Sealed CO2 Laser Tube |
Resetting Positioning Accuracy | ±0.01 mm |
Minimum Shaping Character | Letter: 0.8mm / Chinese: 2mm |
Cutting Thickness | 0 - 20 mm Acrylic (Others determined by materials) |
Machine Weight | 600 Kgs |
Gross Power | < 1600W |
Interface | USB |
Graphic Formats Supported | BMP, PLT, DST, DXF, and AI |
Detailed Configuration (Component Analysis)
Available in multiple power configurations up to 180W, these high-efficiency glass tubes provide a concentrated, stable beam capable of slicing cleanly through up to 20mm of solid acrylic in a single pass.
The machine's control software is highly compatible with industry-standard design programs such as CorelDraw, AutoCAD, and Photoshop. It translates your original design files directly into G-code with zero errors.
We utilize premium, wear-resistant transmission belts that reduce mechanical backlash. This high-speed gearing translates to faster engraving times and sharper details on intricate arts and crafts.
Applicable Industries & Materials
This machine is a highly profitable addition to various non-metal manufacturing sectors:
Industries: Advertising, arts and crafts, leather goods, toys, garments, architectural modeling, building upholstery, computerized embroidery/clipping, packaging, and the paper industry.
Compatible Materials: Wood, timber, plywood, MDF, acrylic, bamboo, jade, marble, organic glass, crystal, plastics, garments, paper, leather, rubber, ceramics, glass, and other non-metallic materials.
Why Choose Superstar CNC?
Decades of Manufacturing Excellence: As a direct manufacturer, Jinan Jinshengxing Machinery builds each machine from the ground up, ensuring strict quality control on the steel frame and electrical components.
Customizable for Your Shop: We offer three distinct sizes (6090, 1390, 1325) and multiple power levels to ensure you get the exact capability your production floor needs without overpaying.
Global Export Readiness: Our machines are designed for the global market, featuring standard USB interfaces, wide software compatibility, and easily sourced consumable parts.
Frequently Asked Questions
Q: Can a 100W CO2 laser cut metal?
A: No, standard CO2 lasers are designed exclusively for non-metals. For sheet metal processing, please review our Fiber Laser Cutting Machine catalog.
Q: Does the machine come with an exhaust system?
A: Yes, cutting materials like wood and acrylic generates smoke. The machine is designed to be connected to an exhaust fan and ducting (typically included or offered as a standard option) to vent fumes safely outdoors.
Q: Do I need a water chiller?
A: Yes, CO2 glass laser tubes require active water cooling to maintain optimal operating temperatures. An industrial water chiller (such as a CW-5000 or CW-5200) is highly recommended and can be paired with your order.
Precision Meets Reliability
Whether you are cutting giant acrylic signs or engraving delicate wooden toys, the Superstar CO2 Laser Engraving Machine delivers.
