Product Overview

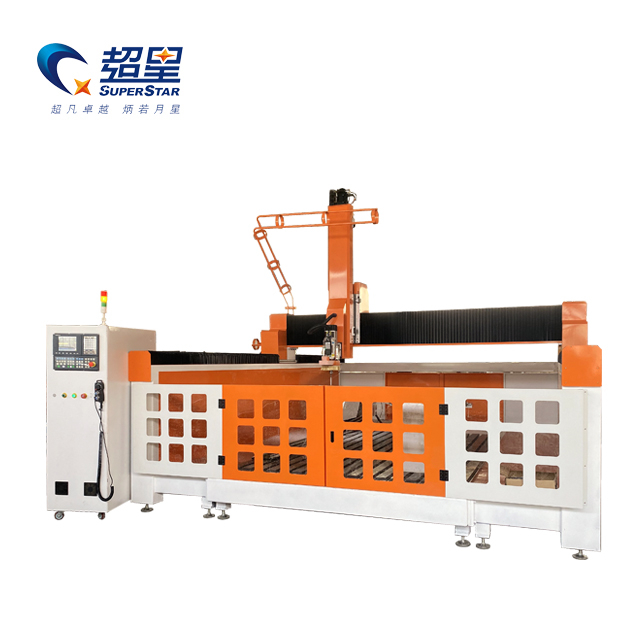

The Superstar CX-2030 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is engineered to tackle monumental fabrication tasks. Standard CNC routers lack the Z-axis clearance and rigidity required to mill large foam blocks or heavy wooden molds. The CX-2030 bridges this gap by combining an elevated gantry with a heavy-duty bed structure.
By utilizing the integrated rotary axis, the machine can hold massive cylindrical blocks of foam or wood, rotating the material continuously while the high-speed spindle carves intricate details. This eliminates the need to carve statues in "slices" and glue them together, ensuring perfect anatomical and architectural accuracy for pillars, statues, and industrial plugs.
Core Advantages
True 360-Degree 3D Carving: The heavy-duty rotary axis (cylinder) acts as a 4th axis, continuously turning the workpiece. This allows for the seamless carving of complex 3D statues, Roman columns, and table pedestals.
Industrial BT40 Spindle: Unlike standard ER collet spindles, the high-torque BT40 main shaft securely holds extra-long foam cutting bits and large-diameter surfacing tools without vibration, significantly reducing machining time.
Heavy-Duty Worktable: Available with a solid steel plate or cast iron platform. This immense structural mass absorbs harmonics, allowing the machine to process dense wood molds and even light aluminum molds without chatter.
Elevated Z-Axis Clearance: Specially designed for large volumetric materials, the raised gantry allows operators to process thick blocks of EPS/XPS foam and tooling board without tool collision.
Technical Parameters
Feature | Specification |
Model | CX-2030 3D Cylinder Foam Engraving Machine |
Working Area (X, Y) | 2000mm × 3000mm (Optional 2040, 4060, 5080) |
Z-Axis Travel | 800mm - 1200mm |
Rotary Axis (Diameter x Length) | Φ 600mm × 3000mm |
Spindle Type | BT40 High-Torque Spindle (Air or Water Cooled) |
Spindle Speed | 0 - 24,000 RPM (Optimized for 6000-10000 RPM foam milling) |
Machine Structure | Heavy-duty welded steel / Cast iron platform |
Control System | [e.g., Syntec / NcStudio / Weihong 4-Axis] |
Drive System | High-Power AC Servo Motors (e.g., Yaskawa) |
Transmission (X, Y) | Precision Helical Rack and Pinion |
Transmission (Z) | Taiwan TBI High-Precision Ball Screw |
Guide Rails | Heavy-Duty Square Linear Rails (Taiwan HIWIN/PMI) |
Working Voltage | AC 380V / 50HZ / 3-Phase |
Detailed Configuration
Equipped with industrial servo motors (such as Japan Yaskawa) and matched reducers. This provides the immense torque needed to rotate heavy wooden logs on the rotary axis while maintaining zero-backlash positioning accuracy.
The CNC control system is explicitly designed for 4-axis simultaneous interpolation. It reads complex 3D toolpaths generated from software like Powermill or Mastercam, smoothly guiding the tool around organic curves and deep undercuts.
Milling foam generates vast amounts of static dust. The machine features fully enclosed accordion dust covers over the linear guides and ball screws, preventing abrasive buildup and extending the lifespan of the transmission components.
Applicable Industries & Materials
Theme Parks & Film: Crafting giant foam props, 3D character statues, theatrical stage sets, and artificial rock formations.
Foundry & Casting: Machining heavy wooden patterns, "Lost Foam" EPS molds, and tooling board masters for casting engine blocks and machinery.
Marine & Auto: Milling 1:1 scale plugs and molds for fiberglass boat hulls and automotive styling models.
Architecture: Carving intricate 3D Roman columns, balusters, and exterior architectural foam trim (EIFS).
Compatible Materials: EPS, XPS, Polyurethane foam, Tooling Board, Resin, MDF, Solid Wood, and Light Aluminum.
Why Choose Superstar CNC?
Unmatched Rigidity: While some competitors build lightweight foam cutters, the CX-2030 is built like a metalworking machine. Its steel plate/cast iron bed ensures it won't flex when carving dense, heavy materials.
Scalable Solutions: If the 2030 size isn't large enough, we manufacture this exact architecture in 2040, 4060, and 5080 (5m x 8m) formats to accommodate any project scale.
Expert Integration: As a direct manufacturer with decades of experience, we provide complete post-processor support for your CAM software, ensuring your 3D files translate perfectly to the physical carving.
Frequently Asked Questions (FAQ)
Q: Can I remove the rotary device when I want to do flat 2.5D carving?
A: Yes. Depending on the machine configuration, the rotary axis can be mounted either on top of the main table (and removed when not needed) or mounted along the side of the machine so it never interferes with flat panel work.
Q: What type of router bits should I use for foam?
A: For fast foam milling, we recommend long-reach, 2-flute high-spiral carbide end mills. Operating at around 8,000 to 10,000 RPM prevents heat buildup while delivering a smooth surface finish.
Q: Does it come with 3D modeling software?
A: The machine executes G-code but does not generate it. You will need a 3D CAM software (like Aspire, Powermill, or Fusion 360) to create your 3D models and generate the toolpaths. Our controller is compatible with all standard G-code generating software.
Bring Massive 3D Ideas to Life
Stop limiting your production capabilities. Upgrade to the heavy-duty precision of the Superstar CX-2030 3D Cylinder Foam Engraving Machine.
