Product Overview

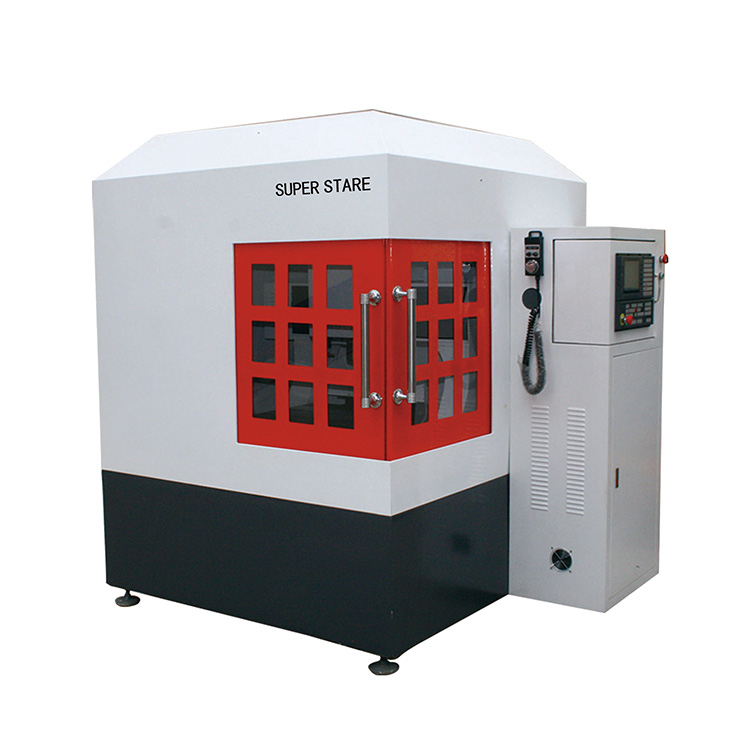

The Superstar CX-6060 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is a dedicated metal engraving and mold-making solution. Standard woodworking CNCs lack the structural mass required to mill metals accurately. The CX-6060 solves this by utilizing an all-cast-iron body designed to absorb machining vibrations and maintain micrometer-level precision.
Whether you are fabricating copper electrodes for EDM machines, hardware molds, or delicate watch accessories, this machine delivers smooth surface finishes and tight tolerances, significantly reducing the need for manual post-polishing.
Core Advantages
Zero-Deformation Cast Iron Body: The entire machine body is constructed from high-quality cast iron. This extreme rigidity guarantees that the machine remains stable and vibration-free during high-torque metal milling.
Intelligent Real-Time Control: The control system allows operators to pause, adjust cutting speed, and modify cutting depth at any time during operation. It also features toolpath previewing to prevent programming errors before cutting begins.
Advanced Breakpoint Memory: Features a continuous engraving function. If a power outage occurs or a tool breaks, the machine automatically remembers the break point and resumes exactly where it left off, saving expensive raw metal materials.
Auto-Zero Return: The system includes an automatic zero-return and correction function, ensuring that coordinate setups are fast and highly repeatable for batch production.
Technical Parameters
Feature | Specification |
Model | CXJ6060 / CX-6060 |
X, Y, Z Working Area | 620 * 620 * 300mm |
Table Size | 640 * 640mm |
Z Feeding Height | 300mm |
Traveling Positioning Accuracy | 0.01mm |
Repositioning Accuracy | 0.008mm |
Drive Motor | Stepper / Servo |
Control System | Nc studio (Optional) |
Max. Rapid Travel Speed | 12 M/Min |
Max. Working Speed | 8 M/Min |
Working Voltage | AC380V / AC220V |
Detailed Configuration & Component Analysis
Customers can choose between high-torque Stepper motors or high-speed Servo motors. Combined with precision ball screws, the system achieves an incredible repositioning accuracy of 0.008mm, which is critical when matching two halves of a precision injection mold.
This highly reliable, PC-based controller is the industry standard for mold making. It processes complex 3D G-code smoothly, ensuring that intricate relief carvings on coins, medals, or toys are executed flawlessly.
With a Z-axis feeding height of 300mm, the machine accommodates thick blocks of aluminum, brass, or steel, providing ample clearance for long milling bits and deep cavity machining.
Applicable Industries & Materials
This machine is specialized for small-format, high-precision applications:
Mold Making Industry: Copper electrodes (for EDM), mini stamping molds, gold stamping molds, hardware molds, and rubber molds.
Precision Accessories: Processing molds and parts for watch accessories, eyeglasses frames, and custom jewelry.
Arts & Toys: Crafting detailed metal dies for toy manufacturing, coins, and high-end artistic reliefs.
Compatible Materials: Copper, Brass, Aluminum, Iron, Steel alloys, Plastics, and Resins.
Why Choose Superstar CNC?
Uncompromising Quality: Backed by Jinan Jinshengxing Machinery, a factory with over 20 years of expertise in industrial CNC manufacturing.
Configurable to Your Needs: We offer customizable voltage (220V/380V) and drive motor upgrades (Stepper to Servo) so you only pay for the performance your specific industry requires.
Lifetime Support: We provide comprehensive operation manuals, remote technical support for NC Studio, and readily available spare parts to keep your shop running 24/7.
Frequently Asked Questions (FAQ)
Q: Can this machine cut steel and iron?
A: Yes, because of its rigid cast iron body and high-precision transmission, the CX-6060 is fully capable of milling steel, iron, copper, and aluminum molds.
Q: Does it come with a cooling system for metal cutting?
A: Yes, metal cutting requires cooling to protect the tool and the workpiece. The machine is designed to accommodate water or mist cooling systems essential for milling hard metals.
Q: What is the advantage of Nc Studio over a handheld controller?
A: Nc Studio utilizes a computer interface, allowing you to view a real-time simulation of the toolpath on a large screen. This visual feedback is highly beneficial for complex 3D mold making compared to a small DSP handheld screen.
Q: Do you provide training for operating the machine?
A: We provide detailed video tutorials and English user manuals. Additionally, our engineering team offers online technical support to guide your operators through setup and calibration.
Precision Molding Starts Here
Stop outsourcing your high-tolerance metal parts. Bring precision mold-making in-house with the Superstar CX-6060 Metal CNC Mold Machine.
