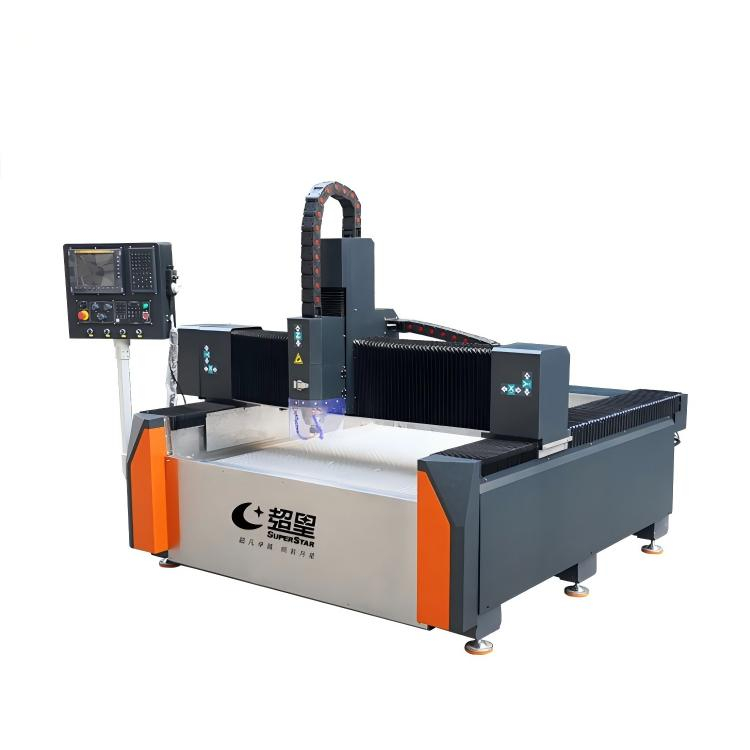

The Superstar CX-1313 Copper Aluminum CNC Router is an industrial-grade milling center built for precision metal fabrication. Unlike standard wood routers that vibrate when cutting dense materials, the CX-1313 features a heavy-duty section steel welded body and a cast iron gantry treated with high-temperature aging to eliminate internal stress. Equipped with a powerful 7.5KW Spindle (ER32) and driven by 1.5KW WEIHONG Servo Motors, it effortlessly machines aluminum plates, copper molds, brass signs, and composite plastics without chatter marks. It is the perfect compact workhorse (1300x1300mm) for sign makers, mold factories, and aerospace component suppliers.
The Superstar CX-1313 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is engineered to solve the most common problem in non-ferrous metal machining: vibration. When milling aluminum or copper, machine rigidity is the difference between a smooth, mirror-like edge and a scrapped part.
By utilizing a massive cast iron gantry and premium Taiwan HGH30 square guide rails, the CX-1313 provides the unyielding stability required for high-speed metal cutting. Combined with the professional WEIHONG NK300 control system, operators can execute complex 2D profiling and deep 3D relief carving with micrometer accuracy.
Core Advantages (The "Why Us")
Vibration-Free Cast Iron Gantry: The gantry is cast as a single solid piece and undergoes high-temperature aging. This prevents micro-deformations over time and absorbs the intense harmonic vibrations generated when cutting thick aluminum sheets.
Massive 7.5KW Spindle: The high-torque HD125 7.5KW spindle (with ER32 collet) allows you to use large-diameter end mills for fast material removal (roughing) and fine V-bits for detailed engraving (finishing) without stalling.
Triple Ball Screw Transmission: Unlike machines that use rack-and-pinion drives, the CX-1313 uses precision ball screws on ALL axes (X, Y, and Z), with a double screw setup on the Y-axis. This guarantees zero backlash and exceptional positioning accuracy.
Z-Axis Safety Brake: The 1.5KW Z-axis servo motor includes an electromagnetic brake. If power is suddenly lost, the spindle will not drop and crash into your expensive copper or aluminum workpiece.
Technical Parameters
Feature
Specification
Model
Superstar CX-1313 Metal Router
Working Size (X, Y, Z)
1300mm × 1300mm × 200mm
Machine Body
Section Steel Welding + High Temp Aging
Gantry Structure
Solid Cast Iron
Working Table
Aluminum Alloy Vacuum Adsorption Table
Spindle
HD125 7.5KW Spindle (ER32 Collet)
Inverter
ZONCN 7.5KW Variable Frequency Drive
Driving Motors
WEIHONG 1.5KW Servos (Z-Axis with Brake)
Control System
WEIHONG NK300 Industrial Controller
Transmission (X, Y, Z)
Precision Ball Screws (Double Screw on Y)
Guide Rails
Taiwan HIWIN HGH30 (30mm) Square Rails
Vacuum Pump
2.2KW Water Ring Vacuum Pump
Machine Weight
1500 KGS
Machine Dimensions
2500mm (L) × 2350mm (W) × 1800mm (H)
Detailed Configuration & Component Analysis
WEIHONG NK300 Control System:
This is an advanced, standalone industrial CNC controller specifically designed for metal milling and high-precision routing. It features superior trajectory planning (Look-Ahead), ensuring smooth deceleration into corners so the cutting tool doesn't chip the metal edge.
Taiwan HGH30 (30mm) Guide Rails:
While standard wood routers use 20mm or 25mm rails, the CX-1313 utilizes massive 30mm HIWIN linear guides on the X, Y, and Z axes. This oversized bearing surface provides the immense load capacity needed to push a cutter through solid brass or aluminum.
Aluminum Alloy Vacuum Table:
The vacuum table is constructed from milled aluminum (rather than phenolic board or MDF), providing a perfectly flat datum surface. Coupled with the 2.2KW water pump, it holds down thin sheets of aluminum securely without the need for mechanical clamps that can bow the material.
Applicable Industries & Materials
The CX-1313 is a true multi-material machining center:
Metal Fabrication: Milling, drilling, and slotting Aluminum plates (up to 20mm+), Copper electrodes, and Brass decorative panels.
Woodworking: Hardwood carving and MDF cutting when not processing metals.
Why Choose Superstar CNC?
Built to Last: At 1500 KGS for a 4'x4' machine, the CX-1313 is significantly heavier than its competitors. In metal milling, mass equals precision and tool life.
Expert Integration:Jinan Jinshengxing Machinery pairs the WEIHONG control system with matched WEIHONG servos, ensuring perfect electronic synchronization and eliminating communication lag between the brain and the motors.
Factory Direct Support: When you buy Superstar, you get direct access to the engineers who built the machine, complete with video training and spare parts availability.
Frequently Asked Questions (FAQ)
Q: Do I need a coolant system for cutting aluminum and copper?
A: Yes, cutting non-ferrous metals generates heat that can cause chips to weld to the cutter. The machine is typically equipped with a mist lubrication system (MQL) or flood coolant trough (please confirm with your sales rep based on your specific application).
Q: Can this machine cut steel or iron?
A: No. The CX-1313 is designed for non-ferrous metals (Aluminum, Copper, Brass, Bronze) and softer materials. Machining ferrous metals (Steel/Iron) requires lower RPM spindles, flood coolant, and different tooling geometry.
Q: Is the ER32 collet large enough?
A: Yes. An ER32 collet can hold tool shanks up to 20mm (3/4") in diameter, which is more than sufficient for high-speed aluminum end mills and large surfacing fly-cutters.
Q: Does it require 3-Phase power?
A: Given the 7.5KW spindle, 7.5KW inverter, and 1.5KW servos, this industrial machine requires a 380V 3-Phase electrical connection.
