Product Overview

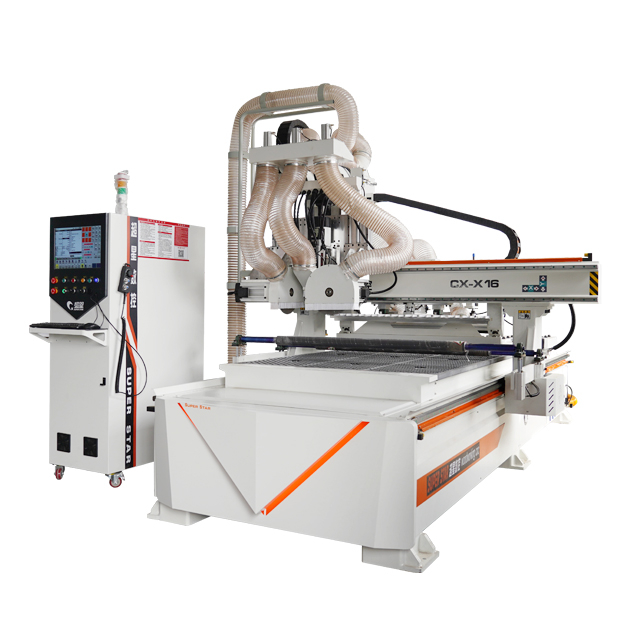

The Superstar X16 ATC CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is explicitly designed to eliminate the bottlenecks of traditional panel processing. Standard CNC routers use router bits to make long, straight cuts—a process that is relatively slow and creates excessive dust. The X16 solves this by adding an independent 7.5KW saw blade spindle alongside the main 9KW ATC spindle. This allows the machine to rapidly slice through standard panels using the saw, while the router spindle handles complex curves, profiling, and hole punching.
With an oversized 1300x2800mm working area, this heavy-duty machine accommodates large format boards. It features a smart digital system equipped with remote status monitoring and one-key automatic fault diagnosis, drastically reducing downtime and maintenance costs for your factory.
Core Advantages
Dual-Spindle Efficiency (Router + Saw): The integration of a 7.5KW saw blade allows for high-speed straight cutting (perfect for cabinet sizing), reducing wear on expensive router bits, while the 9KW ATC spindle handles intricate profiling and drilling.
12-Slot Inline Automatic Tool Changer: The following-type inline tool magazine allows the machine to swap bits in a matter of seconds without returning to a fixed gantry location, maximizing continuous operating time.
Intelligent Digital System: Powered by the Taiwan Baoyuan/LNC system with breakpoint memory, it includes a remote assistance module for real-time equipment debugging, remote positioning, and instant factory support.
Precision Drive Components: Utilizes high-power servo motors paired with Japanese Shimpo reducers and Taiwan guide rails, guaranteeing ultra-smooth, high-speed travel with an exact repeatability of ±0.05mm.
Technical Parameters
Feature | Specification |
Model | X16 ATC CNC Router |
Working Area (X × Y) | 1300 mm × 2800 mm |
Main Spindle | 9.0 KW JST / HQD Air-Cooled ATC Spindle |
Secondary Spindle | 7.5 KW Special Saw Blade Spindle |
Tool Magazine | 12-Slot Inline / Linear Tool Changer |
Control System | Taiwan Baoyuan / LNC Control System |
Drive Motors | High-Power Servo Motors (e.g., Dongling 1.5KW) |
Reduction System | Japan Shimpo Reducer |
Transmission | Taiwan Helical Gear Rack (X/Y) & Ball Screw (Z) |
Worktable Structure | Vacuum Adsorption Table with Pinch Rollers |
Positioning Accuracy | ± 0.05 mm |
Detailed Component Analysis
The table combines powerful vacuum zones with pneumatic pinch rollers. This ensures that even slightly warped boards or small offcuts are held completely flat and rigid, preventing material shifting during high-speed saw cutting.
The machine is equipped with an automatic tool calibrator. After an inline tool change, the system instantly recalibrates the bit's Z-axis height without manual measuring, guaranteeing consistent cutting depth.
The specially customized nesting bed is seamlessly welded and tempered to relieve stress. This ensures that the heavy dual-spindle head does not cause micro-vibrations, ensuring zero edge-bursts and perfectly clean cuts ready for immediate edge banding.
Applicable Industries & Materials
Panel Furniture & Custom Cabinetry: High-volume nesting, cutting, and grooving for wardrobes, kitchen cabinets, and office furniture.
Wooden Door Manufacturing: Rapid sizing of solid wood doors and intricate routing of MDF door panels.
Compatible Materials: MDF, Plywood, Particleboard, Chipboard, Solid Wood, Acrylic, and PVC panels.
Why Choose Superstar CNC?
Remote Factory Support: The built-in digital intelligent system allows Superstar engineers to perform remote diagnostics and one-key equipment repair, ensuring your production line never stays down.
Maximized Yield: By utilizing professional cutting software to optimize plate layout and dismantling, the X16 drastically improves material utilization and reduces waste.
Automation Ready: The X16 is designed to easily integrate with automatic loading and unloading platforms, saving labor and turning your workshop into a fully automated production line.
Frequently Asked Questions (FAQ)
Q: Why use a saw blade instead of just using the router bit to cut the wood?
A: A saw blade cuts through straight lines much faster than a standard router bit, creates less dust, and leaves a cleaner edge. By using the saw for straight sizing and the router bit for curves/drilling, you speed up production and save money on router bit replacements.
Q: What happens if the power goes out during a long cutting job?
A: The Taiwan control system features breakpoint memory. If power is lost, the machine will remember exactly where it stopped and resume the carve precisely from that point once power is restored.
Q: Is the 12-slot tool changer fast?
A: Yes, because it uses an inline (linear) following-type mechanism, the spindle can swap between 12 different tools in just a few seconds without having to travel back to a stationary rack at the end of the bed.
