Product Overview

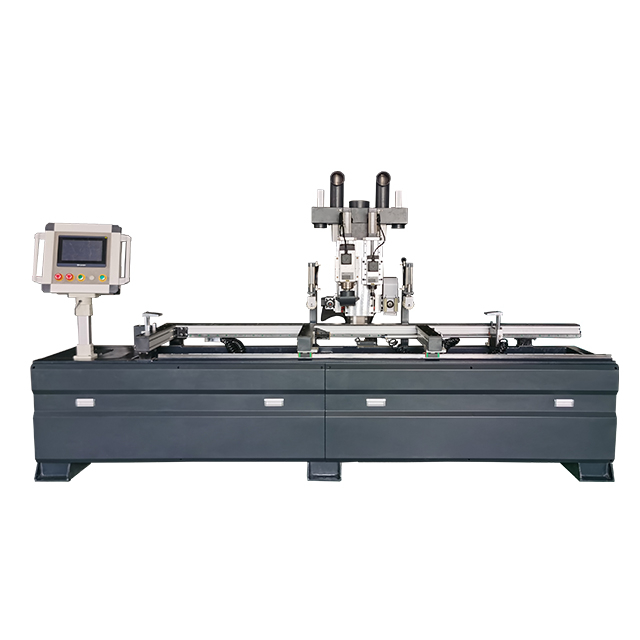

The Superstar CX-1536 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) solves one of the biggest bottlenecks in wooden door manufacturing: hardware prep. Manually measuring and routing lock bodies, keyholes, and hinge mortises requires highly skilled labor and frequently results in costly misalignments.
This specialized CNC center completely automates the process. By utilizing a heavy gantry movement design, the heavy door remains securely clamped on the worktable while the high-frequency spindle dynamically mills the required pockets. The machine's bed is welded from thick-walled square tubes, tempered for stress relief, and processed by a five-side milling machining center to guarantee absolute structural integrity and zero deformation over time.
Core Advantages
Precision Transmission System: The transmission shaft features a high-precision helical rack drive for rapid lateral movements, while the feed shaft utilizes a double-nut automatic clearance ball screw for exact depth control.

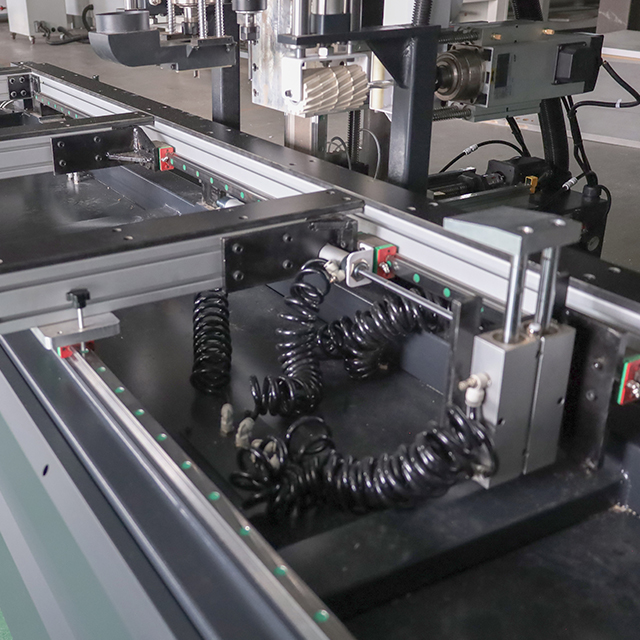

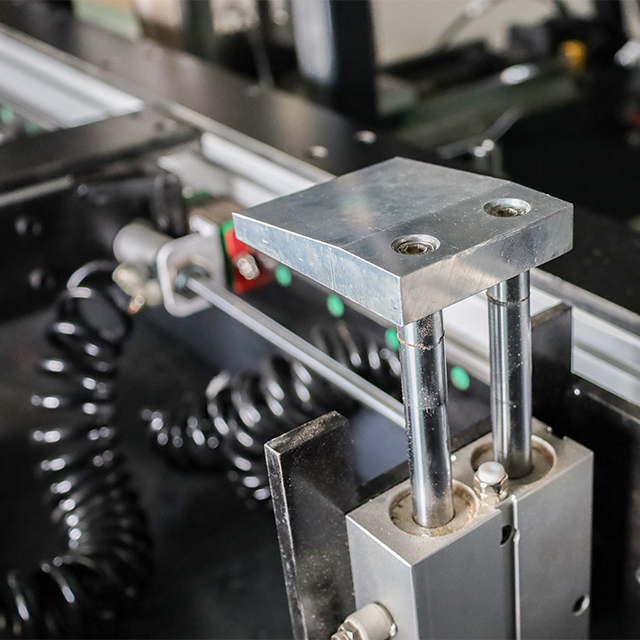

Rapid Clamping & Positioning: Outfitted with an automatic positioning cylinder and a dual plate-fixing method (automatic platen + mobile platen), ensuring the door is aligned and locked down in seconds.
Heavy-Duty Stability: All three operational shafts run on industrial square linear guide rails, allowing the machine to bear heavy cutting loads while maintaining high accuracy.
Automated Maintenance: Features a built-in automatic oiling/lubrication system that drastically extends the lifespan of the guide rails and ball screws.
Technical Parameters
Feature | Specification |
Model | CX-1536 |
Brand | Superstar CNC |
Effective X-Axis Stroke | 2400 mm |
Y-Axis Travel | 120 mm |
Max Running Speed | 30 m/min |
Max Engraving/Milling Speed | 25 m/min (varies by material/depth) |
Repeat Positioning Accuracy | ±0.05 mm |
Spindle Speed | 6000 – 18000 rpm/min |
Max Tool Clamping Diameter | Φ 12.7 mm |
Driving System | Self-owned Brand Servo Drive |
Working Voltage | 380V / 50HZ |
Bed Structure | Thick wall square pipe welding |
Detailed Configuration & Component Analysis

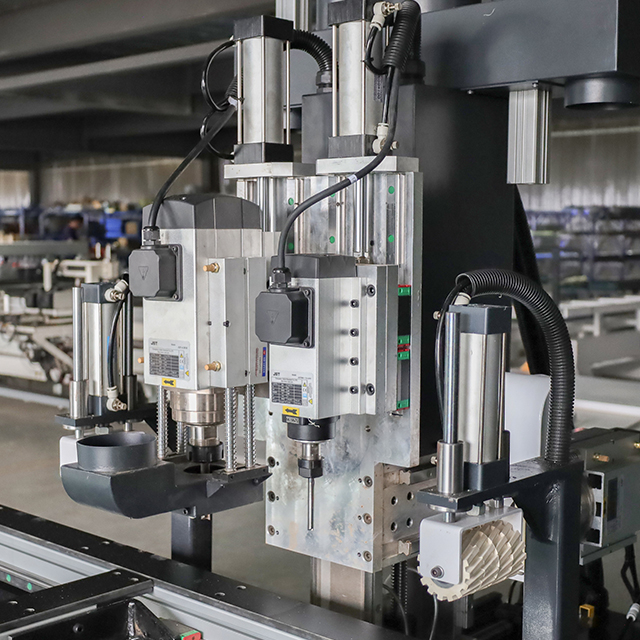

Provides high torque at speeds up to 18,000 RPM, ensuring clean, chip-free cuts when routing deep lock-body pockets into dense solid woods or composite materials.
Powered by a dedicated servo motor drive combined with an imported reducer, ensuring the gantry moves swiftly without skipping steps or stalling during aggressive plunge cuts.

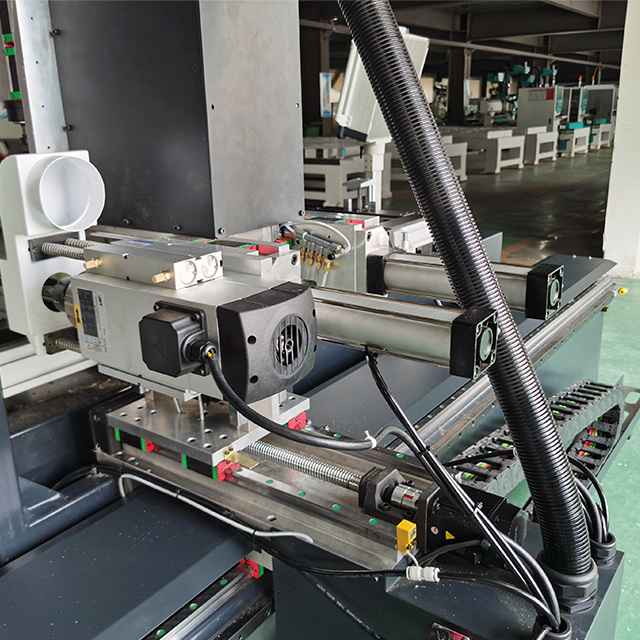

Equipped with an Igus high-flexible, anti-interference shielded cable drag chain imported from Germany, preventing electronic signal disruption and wire fatigue during rapid, continuous production cycles.
Applicable Industries & Materials
Target Industries: Commercial door manufacturing, custom residential indoor/outdoor doors, and architectural millwork.
Core Functions: Drilling lock cylinders (unlock holes), routing deep lock body mortises, and cutting recessed hinge plates.
Compatible Materials: Solid Wood Doors, MDF/HDF Doors, Composite Wood Doors, and Melamine Faced Doors.
Why Choose Superstar CNC?
Dedicated Door Solutions: Unlike standard flatbed CNC routers that struggle with side-machining thick doors, the CX-1536 is purpose-built with the correct Z/Y clearances and specialized clamping for door hardware prep.
Safe & Modular Design: The modular structure provides a highly simplified and safe operation mode, allowing your operators to achieve perfect hardware cutouts with minimal software training.
Global Factory Direct: With deep experience manufacturing CNC equipment since 2003, we provide factory-direct pricing, rigorous quality control, and robust English technical support.
Frequently Asked Questions (FAQ)
Q: Does the operator need to manually flip the door to cut the hinges and the lock hole?
A: Depending on the specific door configuration and hardware placement, the machine's specialized spindle layout can process the side (edge) for the lock body and the face for the keyhole. Our technical team will assist you in programming the most efficient workflow for your specific hinge and lock styles.
Q: Can this machine handle heavy, oversized solid wood doors?
A: Yes, the heavy-duty tempered steel bed and square linear guide rails are explicitly designed to support the weight and absorb the machining vibrations of oversized, solid core wood doors without losing positioning accuracy.
Q: Is the programming difficult for custom lock sizes?
A: No. The self-owned brand control system is designed to be highly intuitive. Operators can easily input or adjust the X, Y, and Z parameters of the lock mortise and hinge dimensions via the interface for rapid changeovers between different hardware brands.
Request a Factory-Direct Quote Today
