Superstar CX-125C CNC Five-Face Drilling Machining Center

Product Overview

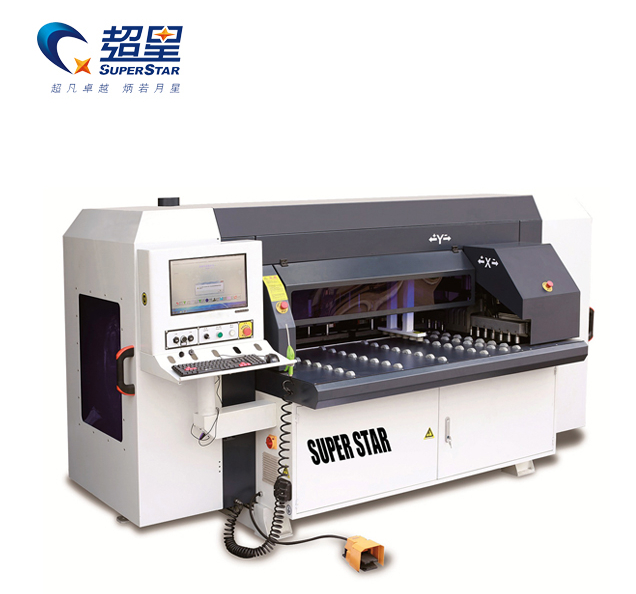

The Superstar CX-125C (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is a specialized Point-to-Point (PTP) boring machine designed to bridge the gap between nesting and assembly. While nesting machines handle cutting, the CX-125C automates the critical "secondary processing" of horizontal and vertical drilling.

Unlike traditional side-hole machines that rely on manual feed and limited sensors, the CX-125C uses a fully automated gantry and gripper system to process all five faces of a panel with micrometer precision. It effectively replaces up to 3 manual workers, ensuring that every cabinet part fits perfectly during assembly.

Core Advantages

• True 5-Face Processing: Drills vertical holes (hinge cups, shelf pins) and horizontal holes (dowels, cam locks) on all four edges without releasing the workpiece.

• Intelligent Barcode Scanning: Comes standard with a wireless scanner. The machine reads the panel's ID from your nesting software (e.g., Cabinet Vision, Haixun) and auto-loads the correct machining program.

• Floating Air Table: The work surface features a high-pressure air flotation system, allowing operators to slide heavy panels easily without scratching sensitive surfaces like high-gloss acrylic or PET.

• Dynamic Gripper System: Intelligent pneumatic clamps automatically reposition themselves during machining to avoid collisions with the drill bit, ensuring 100% edge coverage.

Technical Parameters

Detailed Configuration & Component Analysis

• Integrated Drill Bank:

The machine is equipped with a professional multi-axis drill block that supports rapid switching between different bit sizes. This allows for simultaneous boring of 8mm dowel holes, 15mm cam lock holes, and 5mm screw holes without tool changes.

• Heavy-Duty Gantry Structure:

Built on a tempered steel frame that has undergone aging treatment to remove internal stress. This ensures the machine remains rigid and vibration-free even when drilling dense hardwoods or thick MDF at high speeds.

• Servo Drive System:

We utilize premium servo motors and drivers (such as Delta or Yaskawa) to ensure rapid acceleration and deceleration. This reduces "air cut" time and ensures the drill head moves between hole positions instantly.

Applicable Industries & Materials

• Custom Cabinetry: Kitchen cabinets, bathroom vanities, and closet organizers requiring complex cam-lock and dowel joinery.

• Office Furniture: High-volume production of desks, drawer units, and bookcases.

• Commercial Fit-outs: Shop fitting displays and architectural paneling.

• Compatible Materials: Particle board (MFC), MDF, Plywood, Solid Wood, and OSB.

Why Choose Superstar CNC?

• E-E-A-T Credibility: With over 15 years in CNC manufacturing, Superstar (Jinan Jinshengxing) controls the entire production process from welding to assembly, ensuring every machine meets ISO9001 standards.

• Seamless Software Integration: Our machines are compatible with all major global furniture design software. If you can design it, the CX-125C can drill it.

• Lifetime Tech Support: We offer remote diagnostics, video tutorials, and 24/7 engineering support to keep your production line moving.

Frequently Asked Questions (FAQ)

Q: Do I need to flip the panel manually?

A: No. You simply load the panel once. The machine drills the top face and all four side edges automatically. You only need to unload the finished part.

Q: How does the machine know where to drill?

A: Through the barcode scanner. Your design software generates a label for each part. The operator scans the label, and the CX-125C calls up the matching drilling program instantly.

Q: Can this machine handle Minifix and Lamello connections?

A: Yes. The CX-125C is perfectly suited for standard Minifix (cam lock) systems, wooden dowels, and can be configured for specialized connectors like Lamello or biscuits depending on the tool selection.

Q: What is the lead time for this machine?

A: Standard production time is typically 15-20 working days. Please contact us for current stock availability.

Ready to Automate Your Drilling Process?

Stop measuring by hand and start producing with precision. Contact Superstar CNC today for a factory-direct quote on the CX-125C.
