Product Overview

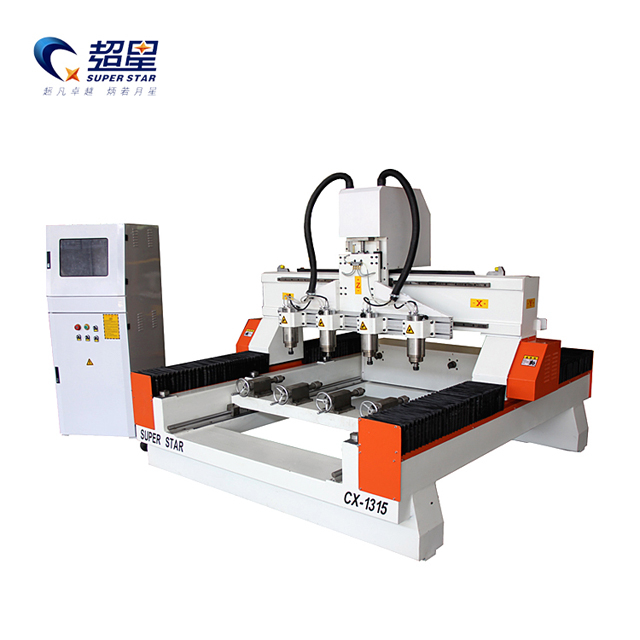

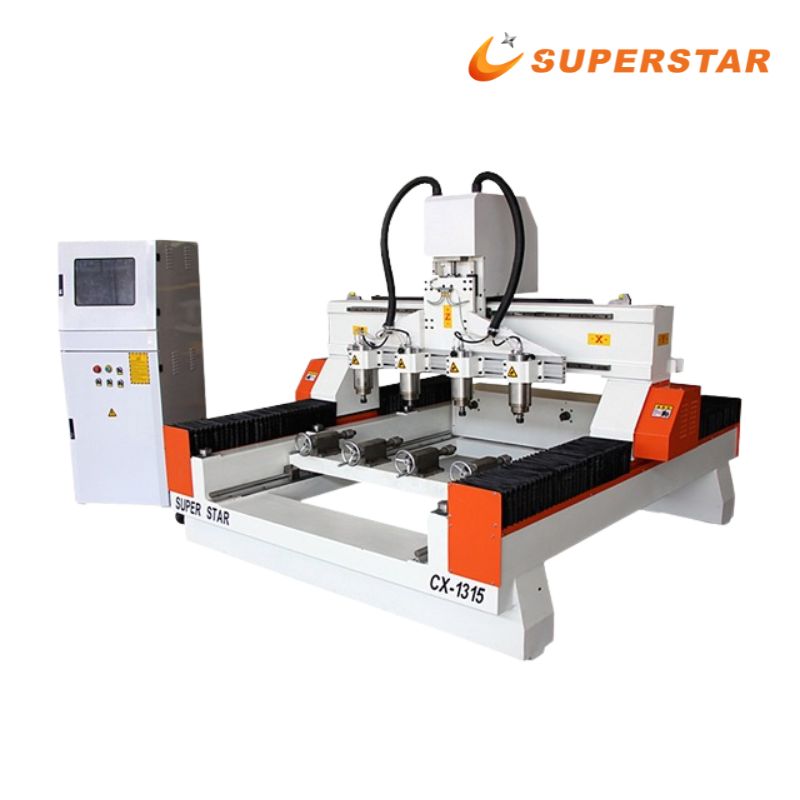

The Superstar Four Head Cylindrical Engraving Machine (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) solves the primary bottleneck in architectural woodworking and relief furniture manufacturing. Carving complex 3D cylinders—such as ornate stair handrails or human figure sculptures—on a single-head lathe is extremely time-consuming.

This machine multiplies your output by four. Featuring four dedicated rotary axes operating in perfect synchronization, the gantry carries four independent spindles that execute the exact same 360-degree toolpath simultaneously. The integral cast iron side plates and heavily welded steel bed undergo strict high-temperature tempering and aging treatments. This massive structural rigidity absorbs the intense rotational vibrations generated when cutting dense hardwoods, ensuring that all four finished pieces emerge with glass-smooth precision.

Core Advantages

• 4x Production Multiplier: By running four spindles and four rotary chucks simultaneously, the machine cuts production time by 75%, making it highly profitable for mass-producing identical cylindrical components.

• True 360° 4-Axis Carving: The synchronized rotary axes rotate the wood continuously while the X, Y, and Z axes move, allowing for intricate undercuts and deep 3D reliefs that standard flatbed machines cannot achieve.

• Heavy-Duty Lathe Bed: The entire bed is aging-treated, and all iron castings are quenched and strengthened. This prevents any deformation under the heavy load of four spinning solid wood logs.

• High-Speed Processing: Utilizing a table-top drive mode and high-speed motors, the machine achieves rapid processing speeds, dramatically reducing cycle times for complex 3D geometries.

Technical Parameters

Detailed Component Analysis

• Water-Cooled Spindles:

3D rotary carving often requires the machine to run for many consecutive hours. The four water-cooled spindles provide superior heat dissipation compared to air-cooled alternatives, preventing motor burnout during long carving cycles.

• Taiwan Square Linear Guide Rails:

The heavy gantry rides on premium Taiwan square guide rails. These rails feature a large contact surface and strong load-bearing capacity, ensuring high precision and a long service life even when making aggressive plunge cuts into dense wood.

• Synchronized Rotary Chucks:

The four tailstocks and chucks are mechanically aligned and driven by synchronized motors. This guarantees that a 15-degree rotation on spindle #1 is exactly a 15-degree rotation on spindle #4, ensuring perfectly matched furniture sets.

Applicable Industries & Materials

• Relief Furniture Industry: Mass-producing identical decorative furniture legs, embossed bedposts, and complex table pedestals.

• Architectural Woodworking: Precision carving of matching stair handrails, balusters, and massive decorative wooden pillars (dragon pillars).

• Arts & Crafts: 360° sculpting of human figures, Buddha statues, and custom wooden handicrafts.

• Compatible Materials: Solid Wood Boards, MDF, Bamboo, Acrylic, and High-Density Foam.

Why Choose Superstar CNC?

• Purpose-Built Engineering: Mounting four motors and four rotary axes requires superior structural alignment. Our factory utilizes 5-axis gantry milling to ensure the guide rails are perfectly parallel, preventing the gantry from binding.

• Scalable Customization: As the direct manufacturer, we can customize the rotary diameter (e.g., 200mm, 300mm) and the processing length (e.g., 1200mm, 1500mm) to perfectly match the specific size of your factory's wood products.

• Global Export Support: We provide comprehensive English operating manuals, video tutorials, and dedicated factory-direct support to ensure your 4-axis machine is running profitably from day one.

Frequently Asked Questions (FAQ)

Q: Do I need special software to run a 4-axis cylindrical machine?

A: Yes. You will need CAM software capable of generating 4-axis rotary toolpaths (or wrapping 3D vectors around a cylinder), such as ArtCAM, Type3, or specialized versions of Aspire and Ucancam.

Q: Can I run just one or two spindles if I don't need four pieces?

A: Yes. The control system allows you to power down individual spindles. If you only need to carve two balusters, you can load wood into two chucks, turn on two spindles, and the machine will process them normally.

Q: How does the machine handle dust with four bits cutting at once?

A: The machine can be equipped with a specialized multi-port dust collection hood that surrounds each spindle, hooking into a high-capacity industrial vacuum system to extract the massive amount of wood chips generated during rotary roughing.
