Product Overview

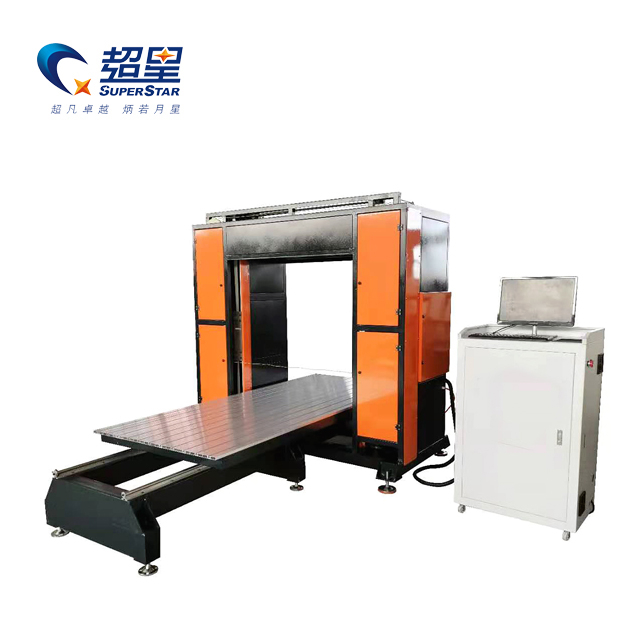

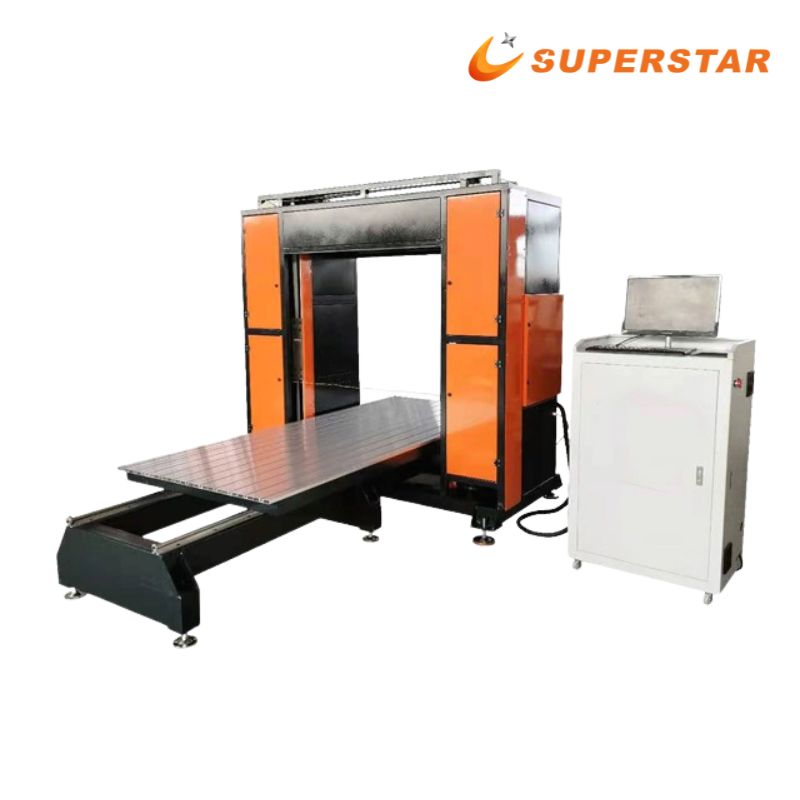

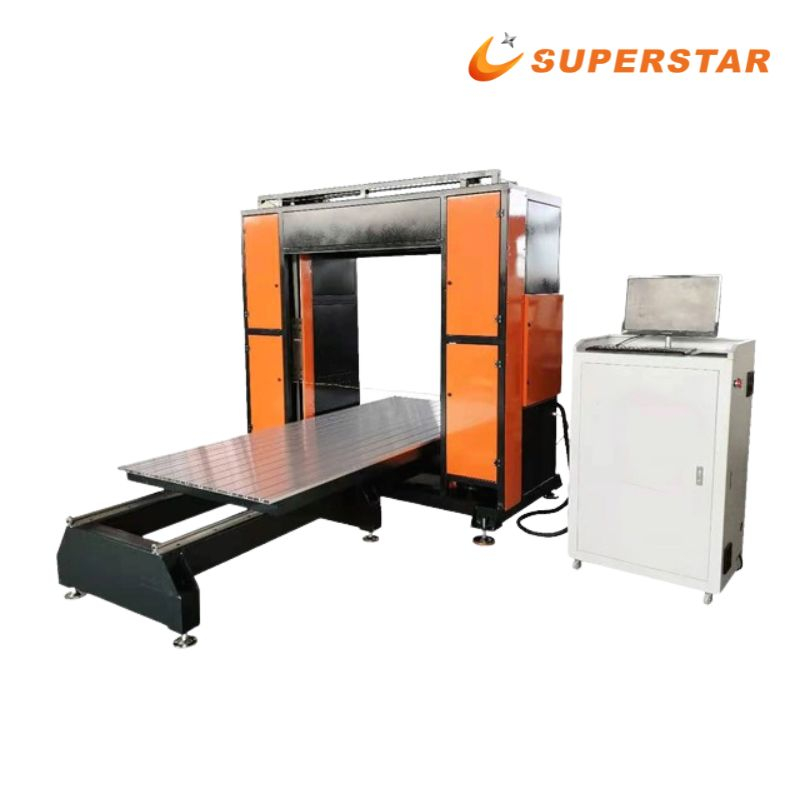

The Superstar CNC Hot Wire Foam Cutting Machine is specifically designed to handle large-scale foam processing with zero mechanical friction. Unlike traditional rotary CNC machines that mill foam—creating rough edges and significant dust—this system uses a high-temperature wire to smoothly vaporize the material upon contact.
Weighing 800 kg and constructed with a premium aviation aluminum framework, the machine provides a rigid, vibration-free foundation that ensures the heated wire remains perfectly taut and accurate. With a spacious cutting area, it comfortably accommodates standard oversized industrial foam blocks, allowing manufacturers to cut multiple complex profiles (such as cornices, pillars, and 3D letters) in a single setup.
Core Advantages
Zero-Dust Thermal Cutting: By utilizing a heated wire, the machine melts rather than cuts the foam. This leaves a flawless, glass-smooth finish that requires no sanding and keeps your factory floor free of static-cling foam dust.
Massive Volumetric Capacity: The extensive 3000mm (L) x 1300mm (W) x 1500mm (H) working area allows for the processing of large EPS blocks, maximizing material yield and reducing loading times.
Advanced DSP Control: The integrated DSP control system offers a highly intuitive user interface, allowing operators to effortlessly manage custom cutting parameters, optimize complex paths, and scale production seamlessly.
Durable Lightweight Frame: The aviation aluminum table structure provides exceptional strength and resistance to operational wear, while keeping the moving gantry light enough to maintain agile, precise movements.
Technical Parameters
Feature | Specification |
Model Type | CNC Hot Wire Foam Cutting Machine |
Max Working Area (L×W×H) | 3000 mm × 1300 mm × 1500 mm |
Cutting Speed | 0.8 — 1.0 m/min |
Table Structure | Aviation Aluminum |
Control System | DSP Control System |
Drive Motors | Stepper Motors & Drivers |
Total Power Consumption | 4 KW |
Machine Weight | 800 KG |
Working Voltage | 220V / 50Hz (Single Phase) |
Detailed Component Analysis
Equipped with high-torque stepper motors and dedicated drivers, ensuring the hot wire travels smoothly through dense EPS/XPS foam without stuttering, eliminating wire drag and ribbed cutting marks.
The system consistently manages the tension of the hot wire as it heats and expands, ensuring the cutting line remains perfectly straight even when sculpting complex 3D profiles or deep architectural cuts.
Operating on an efficient 4KW power setup, the machine maintains stable wire temperatures, which is critical for maintaining consistent kerf width and preventing material burn-out.
Applicable Industries & Materials
Architecture & Construction: Cutting exterior insulation and finish systems (EIFS), decorative cornices, parapets, and structural foam pillars.
Advertising & Events: Shaping large, lightweight 3D letters, logos, and intricate props for trade shows and theme parks.
Packaging Industry: Rapidly prototyping and mass-producing custom protective foam inserts for fragile electronics or appliances.
Compatible Materials: EPS (Expanded Polystyrene), XPS (Extruded Polystyrene), EPP, and other low-melting-point rigid foams.
Why Choose Superstar CNC?
Reliable Performance: As an automatic, industrial-grade cutter, this machine significantly reduces manual labor while boosting output volume for professional environments.
Comprehensive Warranty: We back our engineering with a 1-year warranty on core components, ensuring peace of mind for your investment.
Global Export Quality: We conduct rigorous video outgoing inspections before shipping, ensuring the machine arrives fully functional and ready to integrate into your workflow.
Frequently Asked Questions
Q: Can this machine cut wood or plastics?
A: No. The hot wire system is specifically designed to cut low-melting-point foams like EPS and XPS. Cutting solid materials requires a standard spindle-based CNC router.
Q: Does the machine require three-phase industrial power?
A: No, this specific model is designed to run efficiently on standard 220V / 50Hz single-phase power, making it highly adaptable for various workshop environments.
Q: Is it difficult to program the cuts?
A: The DSP control system makes operation straightforward. By importing standard 2D/3D design files, the controller quickly translates your designs into exact wire movements, simplifying the production of complex shapes.
