Product Overview

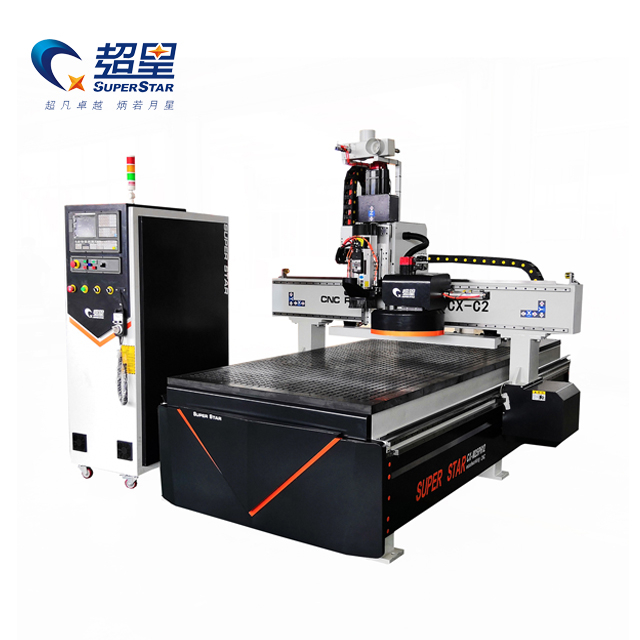

The Superstar CX-1325 ATC (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the definitive mid-range workhorse for modern woodworking factories. Whether your shop produces custom kitchen cabinets, intricate carved wooden doors, or large-format advertising signage, this machine automates the most time-consuming step: tool changes.
The entire bed is seamlessly welded from heavy steel sections, then tempered in a high-temperature oven to relieve internal stress. This ensures the frame maintains absolute rigidity with zero distortion, even after years of high-speed, multi-shift production. Combined with an intelligent Syntec controller featuring cross-boundary protection, the CX-1325 ATC prevents costly crashes and material waste.
Core Advantages
Disc (Carousel) Automatic Tool Changer: The disc-type ATC magazine travels with the gantry, enabling ultra-fast tool swaps regardless of the spindle's position on the table. This drastically reduces non-cutting idle time compared to linear tool changers.
9KW Air-Cooled ATC Spindle: The high-frequency HQD spindle delivers massive torque for deep plunge cuts in hardwood while maintaining whisper-quiet speeds up to 18,000 RPM for clean profiling on MDF and acrylic.
Intelligent Cross-Boundary Protection: The Taiwan Syntec controller features a smart processing boundary function. If the programmed toolpath exceeds the physical working area, the machine will alert the operator before the cut begins, protecting your material and spindle.
Double-Deck Vacuum Adsorption: Powered by a 7.5KW water vacuum pump, the multi-zone table ensures even air pressure distribution across the entire 1300x2500mm surface. This guarantees firm grip on both full-sheet panels and small, irregularly shaped offcuts.
Technical Parameters
Feature | Specification |
Model | CX-1325 ATC CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 9KW HQD Air Cooling ATC Spindle |
Spindle Speed | 0 – 18,000 RPM / min |
Control System | Taiwan Syntec Controller |
Drive Motors | 1.5KW Servo Motor & Driver |
Tool Magazine | Disc (Carousel) Type — 8 Tools |
Transmission (X/Y) | Helical Gear Rack & Pinion |
Transmission (Z) | Precision Ball Screw |
Max Traveling Speed | 45 m/min |
Max Engraving Speed | 25 m/min |
Repositioning Accuracy | ± 0.05 mm |
Working Table | Double-Deck Vacuum Adsorption Table |
Vacuum Pump | 7.5KW Water Vacuum Pump |
Working Voltage | AC 380V / 50-60Hz / 3-Phase |

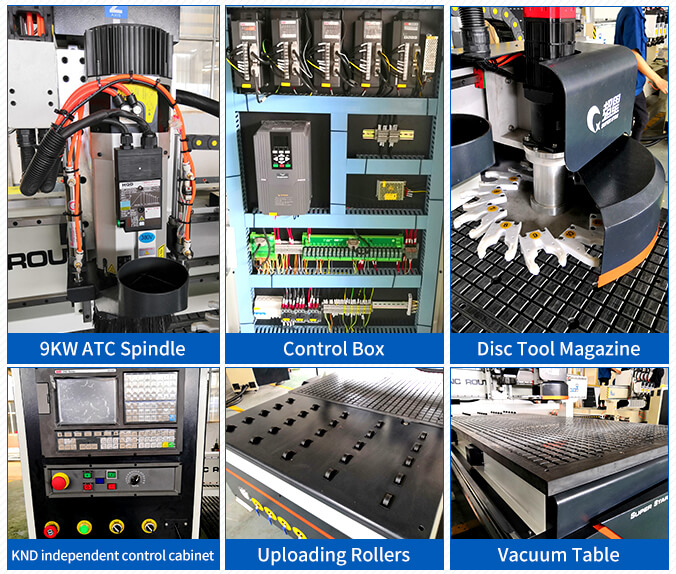

Detailed Component Analysis
The entire frame is welded as a monolithic structure, then subjected to high-temperature aging treatment. This eliminates residual welding stress and guarantees the bed will not warp, twist, or sag under the continuous dynamic loads of high-speed routing.
Unlike standard spur racks, the CX-1325 uses precision-ground helical gear racks on the X and Y axes. This multi-tooth engagement design delivers smoother motion, lower noise, and higher load capacity—critical for achieving clean, chatter-free edges ready for immediate edge banding.
The industrial water-ring vacuum pump is far more durable and powerful than dry air pumps. It provides consistent, high-volume suction (350m³/h per pump) across the entire table surface, ensuring even porous MDF boards are held firmly during aggressive plunge cuts.
Applicable Industries & Materials
Panel Furniture & Cabinetry: High-volume nesting, sizing, and grooving for wardrobes, kitchen cabinets, sliding doors, and office desks.
Wooden Door Manufacturing: Routing intricate 3D designs, raised panels, and hardware mortises on solid wood and MDF doors.
Advertising & Signage: Precision cutting and engraving of acrylic, PVC, two-color boards, and aluminum composite panels.
Compatible Materials: MDF, Plywood, Particleboard, Solid Wood, Acrylic, PVC, ABS, and soft metals like Aluminum.
Why Choose Superstar CNC?
Proven Global Track Record: With exports to over 114 countries since 2003, this exact CX-1325 ATC model has been successfully deployed in factories from Latvia to Myanmar.
Complete Post-Sales Support: After shipment, we arrange dedicated professional personnel to remotely debug and calibrate your machine, ensuring it is production-ready from day one.
Scalable Automation: The CX-1325 ATC integrates seamlessly with automatic loading/unloading platforms, labeling machines, and our edge banders and side-hole drillers, allowing you to build a complete automated production line.
Frequently Asked Questions (FAQ)
Q: How many tools can the disc tool changer hold?
A: The standard disc (carousel) configuration holds 8 tools. This is sufficient for a typical cabinet production cycle (roughing bit, finishing bit, V-groove bit, drill bits, etc.). We can also configure larger capacity magazines upon request.
Q: Can I upgrade from a disc tool changer to a linear tool changer?
A: Both configurations are available for the CX-1325 platform. The disc type is faster (travels with gantry), while the linear type (12 tools) offers greater tool capacity at a slightly lower cost. Contact our team to discuss which best suits your production workflow.
Q: Is the Syntec controller easy to learn for new operators?
A: Yes. The Taiwan Syntec system features a highly intuitive, graphical interface with built-in safety features like cross-boundary protection. Most operators can be trained and running production within one to two days.
