Product Overview

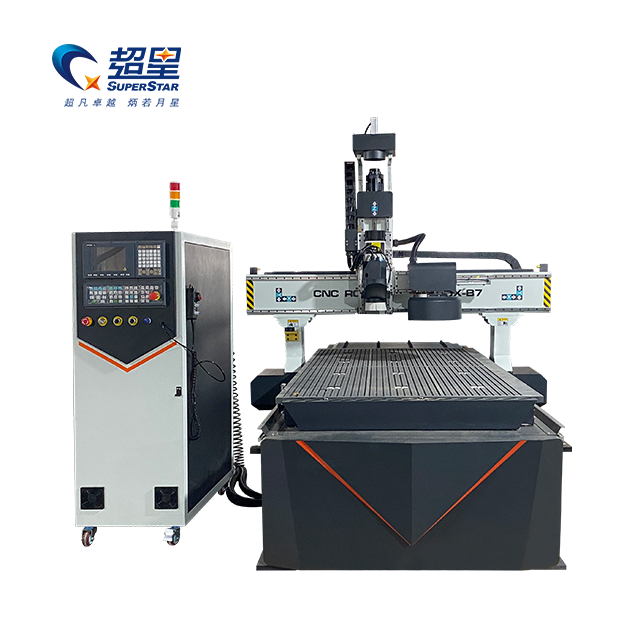

The Superstar 1325 ATC CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) bridges the gap between heavy-duty furniture production and precision advertising fabrication. Standard CNC routers require operators to halt production and manually change tools between cutting, engraving, and profiling stages. The ATC system automates this entirely, swapping tools in seconds without human intervention.
Built on a heavily tempered, seamlessly welded steel frame weighing 2,500 KG, this robust machine easily absorbs the intense vibrations generated during high-speed routing. The 1300x2500mm (4x8 ft) table size perfectly accommodates standard sheet materials, making it the ideal centerpiece for high-volume custom door and signage workshops.
Core Advantages
Automatic Tool Changer (ATC): Features a high-capacity tool magazine that allows the spindle to instantly switch between different drill bits, V-carving bits, and profile cutters in a single continuous G-code program.
Taiwan LNC Control System: This premium industrial controller reads complex nesting and 3D carving toolpaths flawlessly, offering a user-friendly interface that prevents out-of-bound processing and protects expensive materials.
High-Adhesion Vacuum Table: The multi-zone vacuum adsorption table provides immense holding power, securing large heavy doors or small, delicate acrylic advertising letters firmly in place without mechanical clamps.
Precision Drive Mechanics: Powered by 1.5KW high-inertia servo motors and paired with high-precision helical rack and pinion transmission, the gantry moves smoothly to achieve an exact positioning accuracy of ±0.05mm.
Technical Parameters
Feature | Specification |
Model | 1325 Wood ATC CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 9.0 KW ATC Air Cooling Spindle |
Spindle Speed | 1 - 18,000 RPM / min |
Tool Magazine | Disc (Carousel) or Linear ATC options |
Control System | Taiwan LNC-2200 |
Drive Motors | 1.5 KW Servo Motors & Drivers |
Inverter | 11 KW Heavy Duty Inverter |
Transmission Structure | Helical Rack Pinion (X/Y), Ball Screw (Z) |
Guide Rails | Taiwan 20mm Square Linear Guide Rails |
Working Table | Vacuum Adsorption Table |
Positioning Accuracy | ± 0.05 mm |
Working Voltage | AC 380V / 50-60Hz / 3-Phase |
Machine Weight | 2500 KGS |
Dimensions (L×W×H) | 3600 × 2250 × 2500 mm |
Detailed Component Analysis
Provides superior torque at low RPMs for dense hardwood door carving while maintaining high speeds (up to 18,000 RPM) for clean, chip-free cuts on acrylic and MDF.
The X, Y, and Z axes glide on premium linear square rails. These widened load-bearing surfaces ensure the heavy spindle carriage travels effortlessly and maintains micron-level accuracy for 3D relief carving.
The high-capacity 11KW inverter smoothly manages the power delivery to the 9KW spindle, preventing electrical spikes and ensuring a consistent rotation speed even when the bit plunges deep into solid wood.
Applicable Industries & Materials
Wooden Door Manufacturing: Routing intricate 3D relief designs, lock mortises, and hinge pockets on solid wood and MDF doors.
Advertising Industry: Precision cutting and engraving of heavy acrylic, PVC, two-color boards, and aluminum composite panels (ACP) for 3D lettering and signage.
Panel Furniture: High-speed nesting and grooving for custom cabinet doors, wardrobes, and modular displays.
Compatible Materials: Solid Wood, MDF, Plywood, Particleboard, Acrylic, PVC, Plastics, and soft metals like Aluminum.
Why Choose Superstar CNC?
Versatile Factory Solution: Whether you are creating 3D architectural doors or high-gloss acrylic signs, this machine is specifically configured to handle both heavy hogging and fine detailing.
Industrial Longevity: At 2.5 tons, this machine utilizes a heavily tempered bed that will not warp or distort over years of continuous multi-shift production.
Turnkey Export Quality: Every machine undergoes rigorous video outgoing inspections and comes with CE certification, an English interface, and global technical support directly from the Jinan factory.
Frequently Asked Questions (FAQ)
Q: Which tool changer is better for my factory: Disc (Carousel) or Linear?
A: The Disc (Carousel) tool changer travels with the gantry, making tool swaps incredibly fast regardless of where the spindle is located on the table. A Linear tool changer sits at the end of the bed; it is highly reliable and slightly more economical, but the gantry must travel to the end of the table for every change. We can configure either option based on your cycle-time needs.
Q: Can this machine cut aluminum for advertising signs?
A: Yes. The rigid frame, high-torque 9KW spindle, and Taiwan guide rails provide the stability required to cleanly mill and cut thin aluminum sheets and aluminum composite panels (ACP) used in signage.
Q: Does the vacuum table require me to use clamps?
A: No. The powerful vacuum adsorption table pulls porous boards (like MDF) and flat sheets tight against the surface, entirely eliminating the need for mechanical clamps that can obstruct the cutting path.
