Product Overview

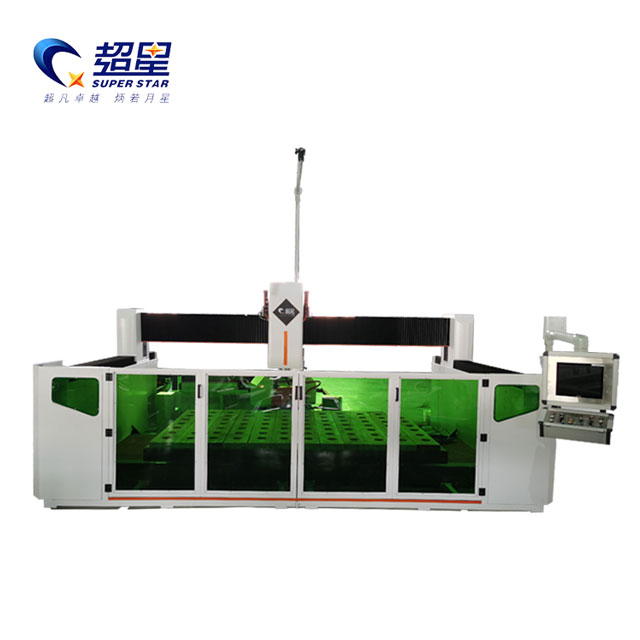

The Superstar CX-3020 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is engineered to solve the most complex challenges in modern stone countertop and architectural fabrication. Traditional 3-axis bridge saws require constant manual repositioning of heavy stone slabs for diagonal cuts or sink cutouts. The CX-3020 automates this entirely.
Operating on a highly intuitive, multi-language professional 5-axis control system, it allows operators to input direct measurements without needing complex G-code programming. The machine bed is seamlessly welded, subjected to high-temperature aging treatment, and processed by a 5-face milling machine to ensure the frame bears the immense weight of granite slabs without microscopic deflection over time.
Core Advantages
True 5-Axis Linkage: The X-Y-Z-A-B automated linkage allows the cutting head to rotate a full 360° and tilt from 0° to 90°. This enables complex curved cuts, circular cuts, and concave/convex edging in a single uninterrupted setup.
Hydraulic Tilt Worktable: Heavy stone slabs are notoriously dangerous to load. The CX-3020 features a thickened wooden table powered by heavy-duty hydraulics that tilts up to 85°, making loading and unloading safe and effortless.
Multi-Functional Processing: Beyond standard straight cuts, the machine is equipped with an integrated grinding wheel and spindle device, allowing it to polish table holes, drill stove cutouts, and perform precise 45° miter chamfering for seamless waterfall edges.
Infrared Alignment System: Integrated infrared lasers project the exact cutting path onto the stone slab before the blade drops, guaranteeing millimeter-perfect material alignment and reducing expensive waste.
Technical Parameters
Feature | Specification |
Model | CX-3020 |
Working Area (X × Y) | 3000 mm × 2000 mm |
Head Rotation Angle (A-Axis) | 0° – 360° Continuous |
Head Tilt Angle (B-Axis) | 0° – 90° Any Angle |
Blade Diameter | 350 mm (Standard) |
Hydraulic Table Tilt | 0° – 85° |
Control System | Professional 5-Axis Control (Multi-Language) |
Transmission System | High-precision widened square rails + Ball Screw |
Drive Motors | High-Precision Absolute Servo Motors |
Cutting Motor | Special waterproof, high-temp resistant motor |
Lubrication | Automatic oiling and lubrication system |
Working Voltage | 380V / 50HZ / 3-Phase |

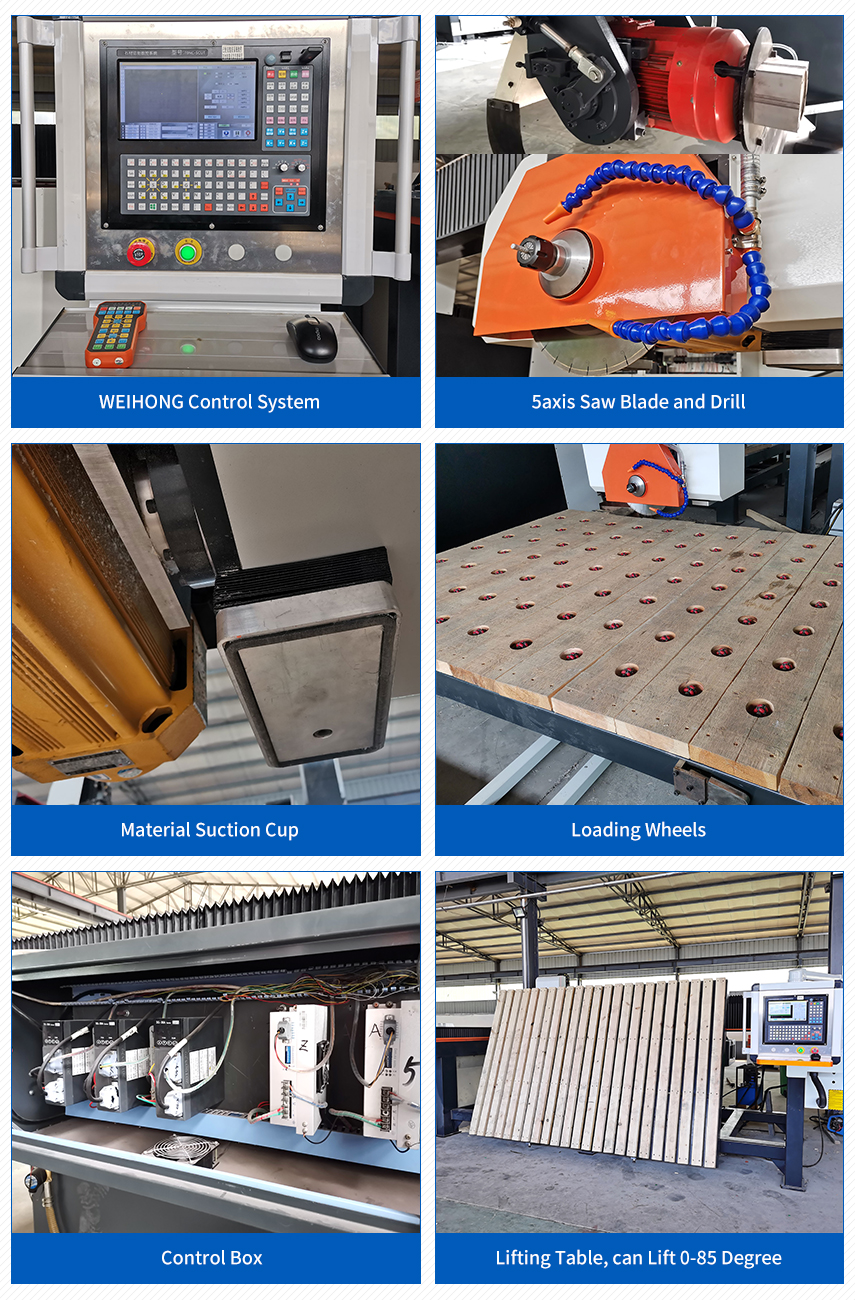

Detailed Component Analysis
Stone cutting generates immense heat and abrasive wet slurry. The CX-3020 uses a specialized high-temperature, fully sealed waterproof motor to drive the saw blade, drastically extending the lifespan of the machine's core mechanics.
X and Y axes utilize high-wear-resistant widened square guide rails paired with an imported high-precision rack and pinion/ball screw system. Driven by robust servo motors, the heavy cutting bridge accelerates and decelerates smoothly without stuttering or vibrating.
Operators do not need to be advanced CNC programmers. Data can be modified directly in the operating system’s interface, making the execution of complex geometric shapes, basin holes, and diagonal cuts as simple as entering dimensions on a touch screen.
Applicable Industries & Materials
Target Applications: Kitchen countertop fabrication (sink and stove cutouts), bathroom vanities, architectural staircases, wall cladding, and complex 3D stone profiling.
Processing Capabilities: Cross/longitudinal cutting, 45° chamfering, polygon, circle/oval cutting, profiling, slotting, and edge grinding.
Compatible Materials: Granite, Marble, Quartz, Sintered Stone (Rock Plate), Artificial Stone, Sandstone, and Ceramic slabs.
Why Choose Superstar CNC?
All-in-One Efficiency: By combining the functions of a traditional bridge saw, an edge router, and a basin-hole driller into one footprint, the CX-3020 dramatically reduces your factory's capital expenditure and floor space requirements.
Heavy-Duty Integrity: With a seamless welded and aged bed frame, the CX-3020 absorbs the intense vibrations of granite cutting, ensuring your 45-degree miter cuts remain flawlessly tight for years.
Global Export Standard: Designed for the international market, it features a multi-language interface and includes standard wearing parts, wrenches, and comprehensive English video support for easy commissioning.
Frequently Asked Questions
Q: Does the operator need to rotate the stone slab to make diagonal cuts?
A: No. Thanks to the 5-axis linkage, the cutting head rotates a full 360 degrees. The machine blade simply turns to the required angle and cuts the stationary slab.
Q: Can this machine drill sink and faucet holes?
A: Yes. The CX-3020 is equipped with a spindle/grinding wheel device. After the saw blade makes the primary cuts, the spindle can drill faucet holes and mill out complex sink profiles effortlessly.
Q: How do we load heavy quartz slabs onto the machine?
A: The worktable features an integrated hydraulic system that lifts the table up to 85 degrees (nearly vertical). Your forklift or A-frame cart simply places the slab against the tilted table, and the hydraulics gently lower it to the flat working position.
