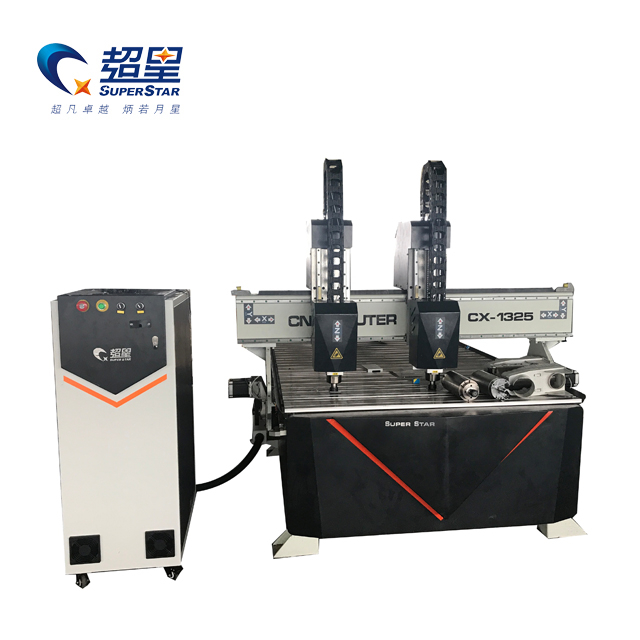

Superstar CNC Double Heads Woodworking Engraving Wood Cutting Machine

Product Overview

The Superstar Double Heads Engraving Machine (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is a highly efficient solution for woodworking factories that need to scale production without buying two separate machines. For shops specializing in symmetrical furniture components (like matching left/right chair legs) or high-volume identical carvings (like decorative wall panels), a single-spindle machine creates a massive production bottleneck.

This dual-spindle configuration solves that problem. By running two identical toolpaths simultaneously, the machine cuts your processing time in half. Built on a heavily tempered, seamlessly welded steel bed, the machine provides the immense structural rigidity needed to absorb the vibrations of two high-speed spindles cutting dense hardwoods simultaneously, ensuring a glass-smooth finish on every piece.

Core Advantages

• 2x Production Multiplier: Two spindles operate simultaneously, allowing you to produce two identical components per cycle. This is ideal for classical furniture sets, matching cabinet doors, and symmetrical decorative reliefs.

• Adjustable Spindle Spacing: The distance between the two spindle heads can be manually adjusted along the gantry. If a workpiece is exceptionally wide, one spindle can be removed or turned off, allowing the machine to function as a large-format single-head router.

• Independent Spindle Control: In specific configurations, the two spindles can be pneumatically controlled to act independently, allowing the machine to use one spindle for roughing/cutting and the second spindle for fine engraving without stopping for a tool change.

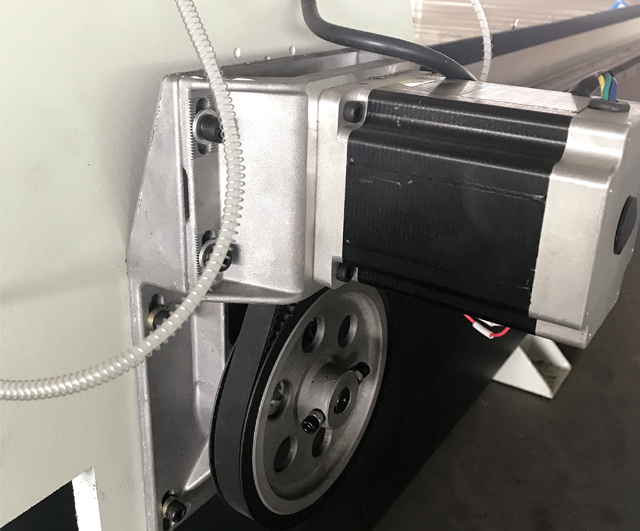

• Heavy-Duty Transmission: Utilizes a high-precision rack-and-pinion transmission on the X and Y axes, combined with Taiwan square guide rails, ensuring rapid, smooth movements without compromising the ±0.02mm to ±0.05mm positioning accuracy.

Technical Parameters

Detailed Component Analysis

• Dual High-Speed Spindles:

Operating at up to 24,000 RPM, the twin spindles can be configured with water-cooling (for long, continuous 3D relief carving cycles without overheating) or air-cooling (for lower maintenance in standard cutting environments).

• Heavy-Duty Bed Architecture:

The entire steel frame undergoes high-temperature aging treatment to relieve welding stress. This ensures the guide rails remain perfectly parallel, preventing the gantry from binding or shaking when both motors are under heavy cutting loads.

• Taiwan Square Linear Guides:

The gantry travels on premium square linear rails, which provide a significantly larger contact surface than round rails. This delivers superior load-bearing capacity and exact linear precision across the entire working bed.

Applicable Industries & Materials

• Classical Furniture & Relief Carving: Mass-producing identical European or antique-style chair backs, bedposts, and deep 3D relief panels.

• Cabinet Door Production: Simultaneously routing two matching raised-panel or shaker-style cabinet doors.

• Decorative Arts & Crafts: Carving repetitive wooden signs, jewelry boxes, and architectural wainscoting.

• Compatible Materials: Solid Hardwoods (Mahogany, Oak, Rosewood), MDF, Plywood, Bamboo, Acrylic, and High-Density Foam.

Why Choose Superstar CNC?

• Cost-Effective Scaling: Purchasing a double-head machine is vastly more economical than buying two separate single-head machines. It requires half the floor space, half the power drops, and only one operator to double your factory's output.

• Versatile Factory Application: Unlike fixed 8-head machines which are strictly for small reliefs, the adjustable 2-head system gives you the flexibility to carve two medium-sized panels or switch to a single head for one massive architectural panel.

Frequently Asked Questions (FAQ)

Q: Do I have to use both spindles all the time?

A: No. If you have a workpiece that is too wide to fit under the dual-spindle layout, you can simply power down one spindle (or remove the cutting bit) and use the machine as a standard single-head CNC router.

Q: Do I need special software to run two heads?

A: No. You design your part in standard CAD/CAM software (like ArtCAM or Aspire) and generate a single G-code toolpath. The machine's control system duplicates that signal and sends it to both spindles simultaneously.

Q: Can one head use a cutting bit while the other uses an engraving bit?

A: Depending on your exact machine configuration, yes. If ordered with independent pneumatic Z-axis controls, the machine can lower head #1 to engrave the wood, then raise it and lower head #2 to cut the piece out, acting as a simplified Automatic Tool Changer.
