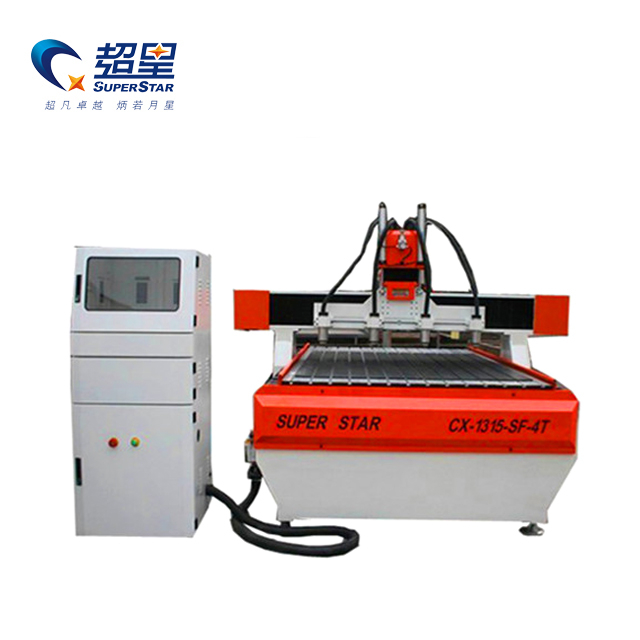

Superstar CX-1315 Four Head Woodworking Carving Machine

Product Overview

The Superstar CX-1315 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is explicitly designed for the classical furniture industry where intricate 3D relief carving is the primary bottleneck . A single ornate chair back or decorative panel can take hours of continuous carving. The CX-1315 multiplies your output by four, drastically improving factory profitability.

Unlike generic multi-head machines, the CX-1315 is a unique design model that combines the precision of a relief engraver with the speed of a rack-driven machine . This hybrid approach effectively improves carving speed under the premise of ensuring accuracy—a critical balance when processing expensive hardwoods like mahogany and rosewood .

Core Advantages

• 4x Production Multiplier: Four spindles carve simultaneously, producing four identical pieces per cycle . This is essential for classical furniture sets that require matching chair backs, table legs, and decorative panels.

• Ultra-High Precision: Achieves a repeat positioning accuracy of ±0.02mm . This ensures that every detail of an intricate dragon motif or floral scroll is faithfully reproduced across all four heads, guaranteeing perfectly matched furniture sets.

• High-Speed Rack Structure: The X and Y axes utilize a high-speed rack-and-pinion transmission system . This provides significantly faster carving speeds (>10m/min) than standard ball-screw-only machines, reducing overall cycle times on large relief panels.

• Compact & Efficient Layout: The 1300mm x 2500mm (CX-1325) working area is perfectly proportioned to accommodate four classical furniture components arranged side-by-side, maximizing table utilization .

Technical Parameters

Detailed Component Analysis

• 1.5KW High-Speed Spindles:

Each of the four spindles delivers consistent torque across the full 0-24,000 RPM range . This allows operators to run at low RPMs for aggressive roughing passes in dense mahogany, then ramp up to full speed for ultra-fine finishing passes on delicate scroll details.

• Rack-and-Pinion Transmission:

The high-speed rack structure eliminates the speed limitations of ball-screw-only machines on the X and Y axes . This enables the gantry to traverse rapidly between carving zones, significantly reducing the "air-cutting" time that adds up over long 3D relief programs.

• Single-Phase 220V Operation:

Unlike most industrial CNC machines that require 380V three-phase power, the CX-1315 operates on standard 220V single-phase . This makes it highly adaptable for smaller workshops that may not have industrial-grade electrical infrastructure.

Applicable Industries & Materials

• Classical Furniture Manufacturing: Mass-producing identical relief carvings for mahogany beds, Ming/Qing dynasty chairs, European cabinets, and antique reproduction furniture .

• Decorative Woodworking: Carving ornate wooden gift boxes, jewelry boxes, and luxury packaging .

• Architectural Millwork: Producing repetitive decorative panels, wainscoting, and temple/church door reliefs.

• Compatible Materials: Hardwoods (Mahogany, Rosewood, Oak, Walnut), MDF, Bamboo, and high-density foam .

Why Choose Superstar CNC?

• Purpose-Built for Relief: This is not a generic router with extra spindles bolted on. The CX-1315 is a uniquely designed machine specifically optimized for the speed, precision, and endurance demands of 3D relief carving in hardwoods .

• Economical Entry Point: Operating on 220V single-phase power with efficient 1.5KW spindles, the CX-1315 offers an extremely cost-effective path to quadrupling your relief output without the massive power requirements of larger machines .

• Factory-Direct Support: As the original manufacturer, we provide complete tooling guidance, English manuals, and video technical support to ensure your team is carving production-quality furniture from day one.

Frequently Asked Questions (FAQ)

Q: Can I run just one or two spindles if I have a wider piece to carve?

A: Yes. You can remove the cutting bits from unused spindles and adjust the active heads to accommodate wider workpieces. The control system will drive the gantry through the same toolpath regardless of how many spindles are actively cutting.

Q: Do all four spindles carve the exact same design?

A: Yes. You only program one 3D toolpath in your CAM software (like ArtCAM or Aspire). The machine's controller duplicates that single program to all four spindles simultaneously, producing four perfectly identical pieces.

Q: Is 1.5KW enough to carve dense mahogany?

A: Yes. While 1.5KW is smaller than a typical ATC spindle, 3D relief carving uses fine bits that remove small amounts of material per pass . The high RPM (24,000) and the ability to take multiple shallow passes make 1.5KW highly effective for even the hardest tropical woods.
