Product Overview

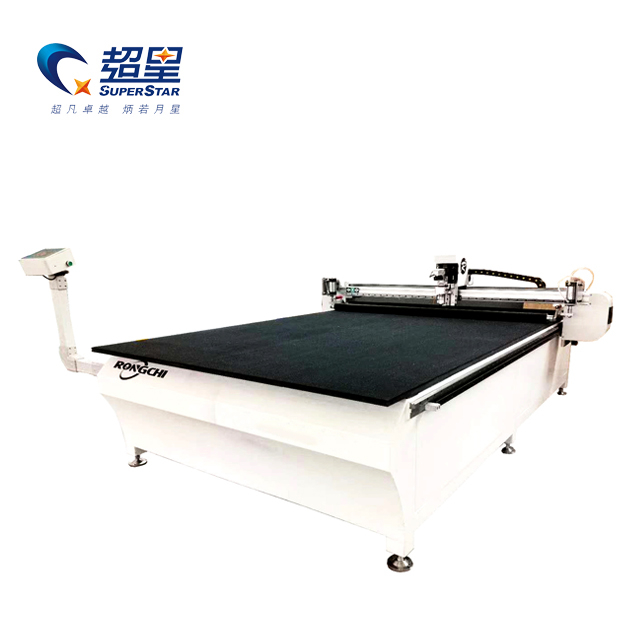

The Superstar CX Automatic Vibrating Knife Cutter (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) solves the biggest challenges in the flexible materials industry: expensive physical dies, slow manual cutting, and material waste.
Operating entirely digitally, this machine allows you to import DXF/PLT files directly from your design software. The system's intelligent nesting algorithm arranges parts to maximize yield, saving expensive raw hides and fabrics. The continuous auto-feeding conveyor belt ensures that even 50-meter rolls of material are processed flawlessly without operator intervention.
Core Advantages
Dieless Digital Production: Eliminate the cost and storage of physical cutting dies. You can switch from cutting a car floor mat to a sofa cushion instantly, making small-batch and custom orders highly profitable.
Zero Heat Distortion (No Burnt Edges): The mechanical oscillating blade cuts through materials by vibrating thousands of times per minute. There is no laser heat, meaning no toxic smoke, no yellowing on white fabrics, and perfectly soft edges on leather.
High-Speed Efficiency: Driven by premium Servo motors, the cutting speed reaches up to 1200mm/s. It can cut a complete set of car foot mats in under 90 seconds.
Automatic Conveyor Table: The industrial felt working table doubles as a conveyor belt. It automatically rolls the material forward after each section is cut, enabling non-stop processing of rolled goods.
Technical Parameters
Feature | Specification |
Model | CX Series Automatic Vibrating Knife Cutter (e.g., 1625) |
Effective Working Area | 1600mm × 2500mm (Customizable) |
Cutting Speed | 800 - 1200 mm/s (Depending on material) |
Cutter Head Type | High-Frequency Vibrating / Oscillating Blade |
Max. Cutting Thickness | Up to 50mm (Depending on material & blade) |
Table Structure | Auto-Feeding Conveyor Felt Table |
Material Fixation | Multi-zone Vacuum Adsorption |
Drive System | AC Servo Motors (Taiwan Delta/DORNA) |
Transmission | Linear Guide Rail & Gear Rack / Belt |
Working Voltage | AC 380V ±10% / 50HZ (Optional 220V) |
Working Power | ~9.0 KW |
Supported Software/Formats | DXF, PLT, AI (AutoCAD, CorelDraw compatible) |
Safety Measures | Intelligent collision detection, Emergency stop switches |
Detailed Configuration
The core cutting head provides fully penetrated cutting through tough materials like thick cowhide or multi-layered fabrics without dragging or distorting the material, ensuring perfect corners and intricate curves.
The aluminum honeycomb table beneath the felt is divided into controllable vacuum zones. This high-suction system locks soft, slippery materials firmly in place during rapid blade movements.
Equipped with sensitive anti-collision sensors around the gantry. If an operator gets too close to the moving cutting head, the machine pauses instantly, ensuring factory-floor safety.
Applicable Industries & Materials
This machine is a versatile workhorse for non-metallic flexible manufacturing:
Automotive Interiors: Car seat covers, custom floor mats (EVA/PVC), steering wheel wraps, and acoustic insulation.
Furniture & Upholstery: Genuine leather, PU leather, and woven fabrics for sofas, chairs, and cushions.
Footwear & Bags: Precision cutting of shoe uppers, luggage patterns, and handbag designs.
Garments & Textiles: Rapid sampling and short-run production of clothing.
Compatible Materials: Leather, PU, Fabric, Corrugated Cardboard, KT Board, EVA Foam, Sponge, and Rubber.
Why Choose Superstar CNC?
Material Yield Optimization: Our control system integrates seamlessly with auto-nesting software, which can save up to 10-15% of your expensive leather materials compared to manual layout.
Direct Manufacturer Support: Manufactured in-house by Jinan Jinshengxing Machinery, ensuring strict quality control, reliable CE-certified electrical components, and direct factory pricing.
Global After-Sales: We provide comprehensive video tutorials on how to set blade depths for various materials and offer prompt remote technical support.
Frequently Asked Questions (FAQ)
Q: Can this machine mark patterns or punch holes?
A: Yes, the tool head is modular. In addition to the vibrating knife, we can configure it with marking pens (for drawing stitching lines) and punching tools (for breathable holes in leather).
Q: Does it require an air compressor?
A: Yes, a standard air compressor is required to operate the pneumatic lifting of the tool head and the automated feeding mechanism.
Q: How do I load heavy rolls of leather or fabric?
A: The machine is equipped with a rear unrolling stand. You place the roll on the stand, feed the leading edge onto the conveyor felt, and the machine's auto-feeding system handles the rest.
Digitize Your Cutting Room Today
Stop wasting expensive materials and struggling with slow manual labor. Automate your production with the Superstar CX Automatic Vibrating Knife Cutter.
[Contact Us for a Free Material Test & Quote]
