The Superstar CX-1107CCD (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) bridges the gap between slow manual cutting and expensive, large-format industrial plotters. It is specifically engineered for print shops and packaging designers who need fast, accurate, and clean cuts on printed media.
Traditional laser cutters often scorch the edges of coated paper and emit harmful fumes when cutting adhesives. The CX-1107CCD utilizes a high-frequency vibrating blade (EOT) that slices through medium-density materials purely mechanically, leaving flawless, unburnt edges. The integrated CCD camera automatically scans registration marks, ensuring perfectly aligned contour cuts every time.
Intelligent CCD Vision System: The integrated camera automatically identifies printed registration marks, compensating for any print distortion or material skewing. This guarantees precise contour cutting for labels, signs, and POS displays.

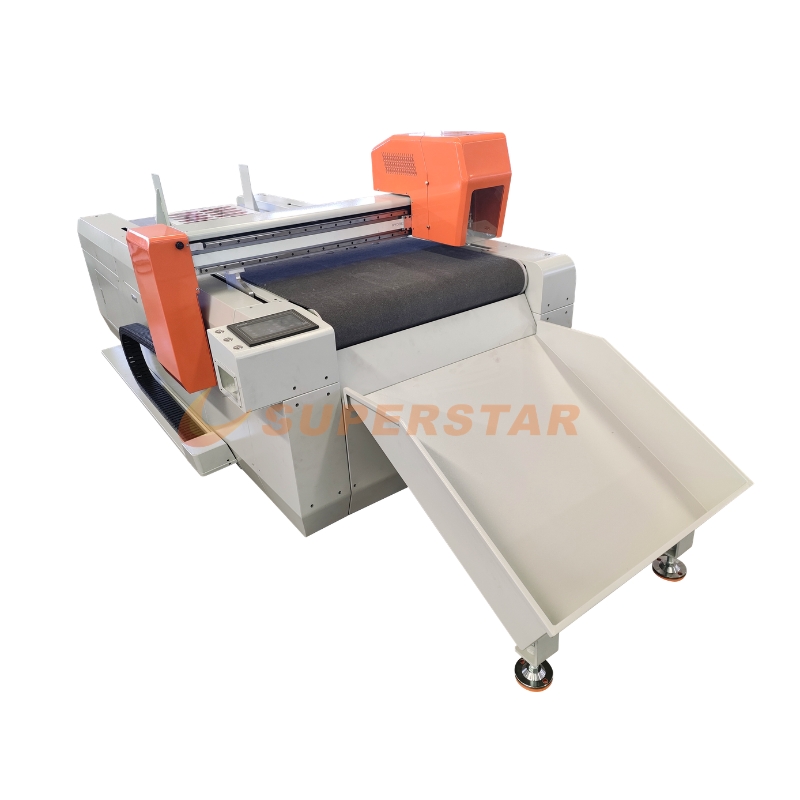

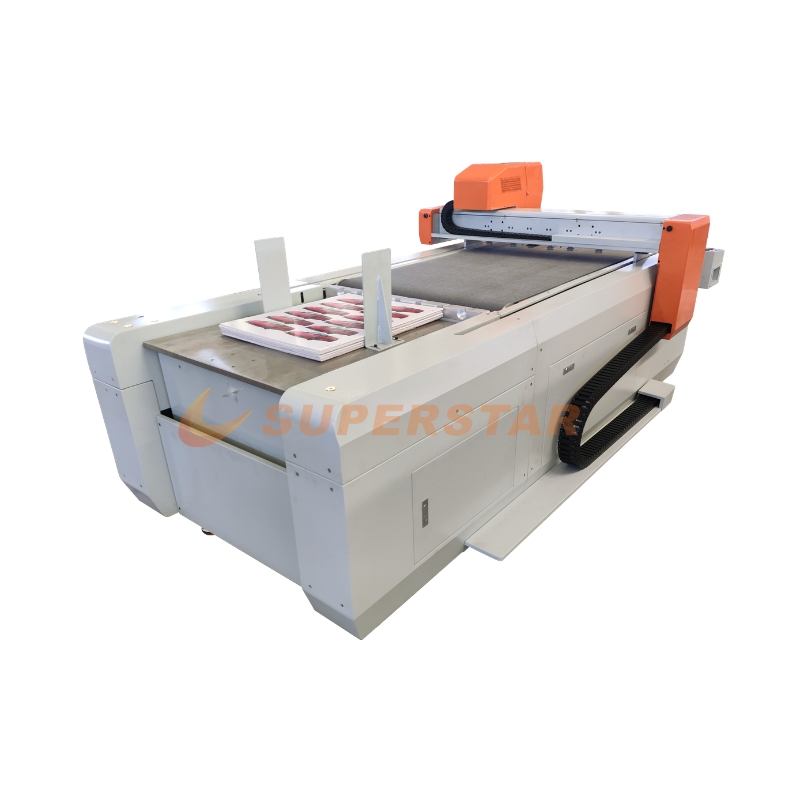

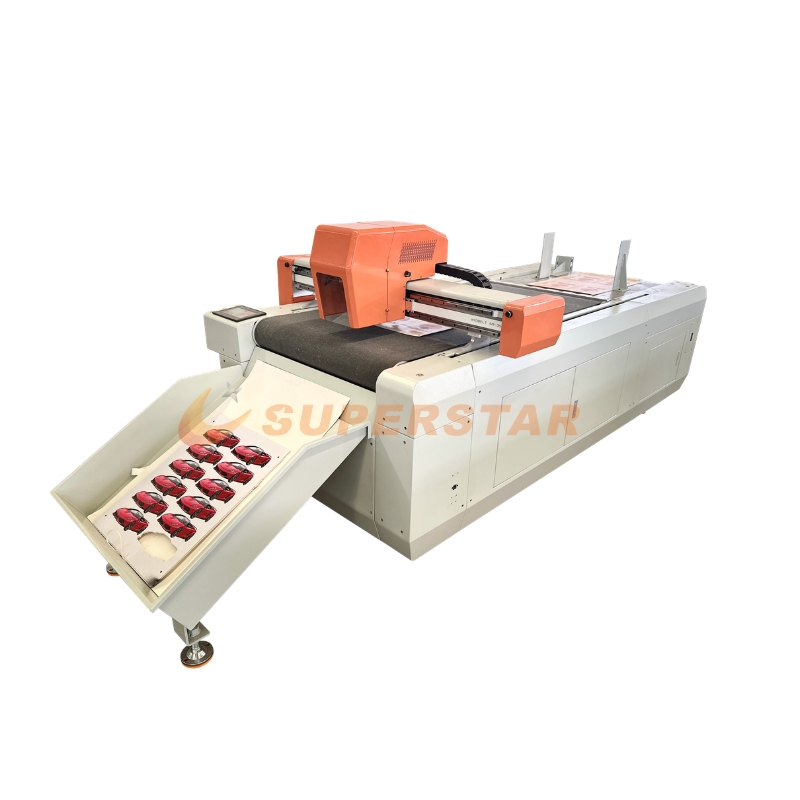

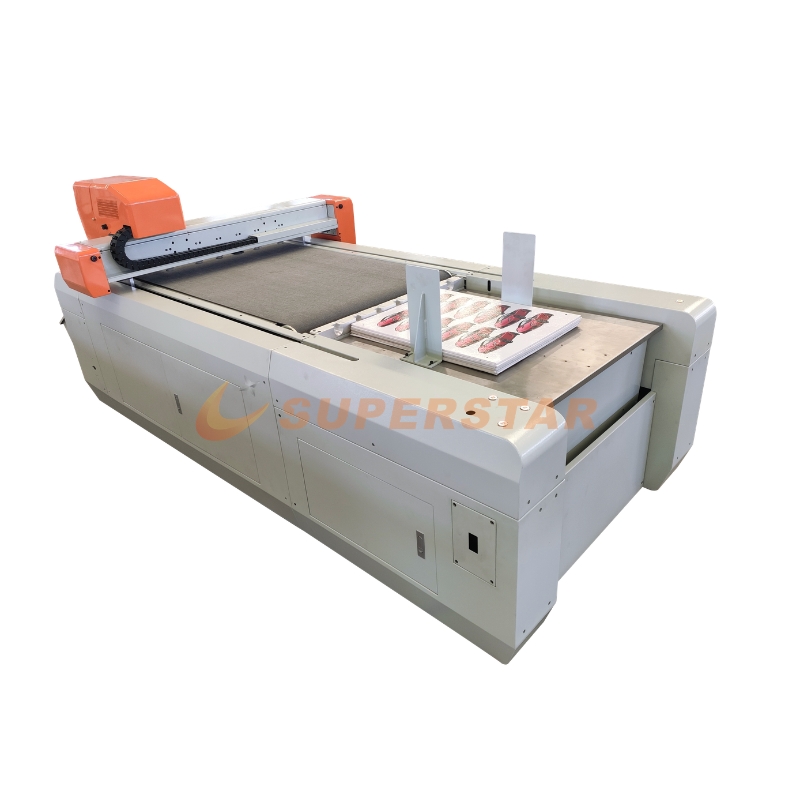

Automatic Rolling Table (Conveyor System): The 1100x700mm working area is equipped with a conveyor felt belt. This allows for the continuous feeding of roll materials (like adhesive vinyl) or the automated advancement of long sheet jobs, significantly increasing daily output.
Dual-Tool Configuration: Comes standard with an Oscillating Tool (EOT) for cutting and a Press Wheel (CT Roller) for creasing. You can cut the shape and crease the fold lines of a cardboard box in a single continuous operation.
High-Speed Servo Driven: Powered by DORNA Servo motors (including a massive 1000W Y-axis and A-axis) and a high-speed belt transmission, delivering rapid acceleration and smooth curves on intricate designs.
Feature | Specification |
Model | CX-1107CCD Vibrate Knife Cutter |
Table Working Size | 1100mm × 700mm |
Table Type | Automatic Rolling Table (Conveyor) |
Input Height Clearance | 20 mm |
Max. Cutting Thickness | 5 mm (Depending on material) |
Tool Structure | Oscillating Tool + Press Wheel + CCD Camera |
Motor Type | DORNA Servo Motors |
Servo Power Distribution | Y: 1000W / X: 400W / Z: 100W / A: 1000W |
Transmission System | High-Speed Belt Transmission |
Countertop Structure | Aluminum Table with Conveyor Felt |
Vacuum Pump | 2.2KW Air Pump |
Working Voltage | AC 220V / 50HZ |
Machine Dimensions | 3500mm (L) × 1430mm (W) × 1250mm (H) |
Package Size | 3000mm × 1600mm × 1550mm |
Gross Weight | 800 KGS |
EOT Brushless DC Oscillating Knife:
The Electronic Oscillating Tool (EOT) drives the blade up and down at high frequencies. This sawing action drastically reduces the drag force on the material, allowing the machine to cleanly cut through fibrous materials like corrugated board or sticky adhesive backing without tearing or shifting the material.
CT Pressure Roller (Creasing Tool):
Essential for packaging, the indentation tool presses fold lines into corrugated paper, white cardboard, and grey cardboard. This prevents the top layer of the paper from cracking when the box is folded into its 3D shape.
Aviation Aluminum Honeycomb Table:
Beneath the conveyor felt is a rigid aluminum honeycomb structure. This ensures the cutting surface remains perfectly flat, while the 2.2KW vacuum pump pulls air through the micro-holes to hold flexible materials securely in place during high-speed cutting.
This machine is the ultimate finishing tool for:
Advertising & Graphics: Contour cutting of printed adhesive vinyl, stickers, PVC foam board, and KT board.
Packaging Prototyping: Making custom corrugated cardboard boxes, folding cartons, and point-of-sale (POS) displays.
Print Finishing: Cutting coated paper, photo paper, and grey cardboard for custom invitations or book covers.
Other Materials: EVA foam (up to 5mm), rubber gaskets, and leather patches.
Eco-Friendly Alternative: No smoke, no laser burns, and no smell. It is completely safe for office or print-shop environments.
Heavy-Duty Build: Unlike lightweight desktop plotters, the CX-1107CCD weighs 800 KGS. This industrial mass absorbs vibration from the high-frequency knife, ensuring clean cuts and long machine life.
Global Export Quality: Manufactured by Jinan Jinshengxing Machinery, ensuring reliable DORNA electronics and standardized replacement blades available globally.
Q: Can this machine cut thick foam or wood?
A: This specific model is optimized for graphic arts and packaging, with a maximum cutting thickness of 5mm. It cannot cut wood or thick CNC materials. For thick foam (up to 50mm), we recommend our larger 1625 Oscillating Knife series.
Q: Do I need to manually feed the material for long banner cuts?
A: No. The Automatic Rolling Table acts as a conveyor. If your design is longer than the 700mm table, the machine will cut the first section, automatically roll the material forward, and continue cutting seamlessly.
Q: Does the CCD camera require special software?
A: The machine comes with dedicated digital cutting software that integrates the CCD camera. You simply print your design with standard registration marks (dots or crosses) from Adobe Illustrator or CorelDRAW, and the software handles the rest.
Q: What power supply is needed?
A: The machine operates on standard AC 220V / 50HZ (Single Phase), making it easy to install in standard commercial buildings without requiring industrial 3-phase power.
Stop cutting by hand or struggling with burnt laser edges. Upgrade to the Superstar CX-1107CCD for fast, clean, and automated graphic cutting.
