Superstar CX-1325 Automatic Woodworking & Rotary Engraving Machine

Product Overview

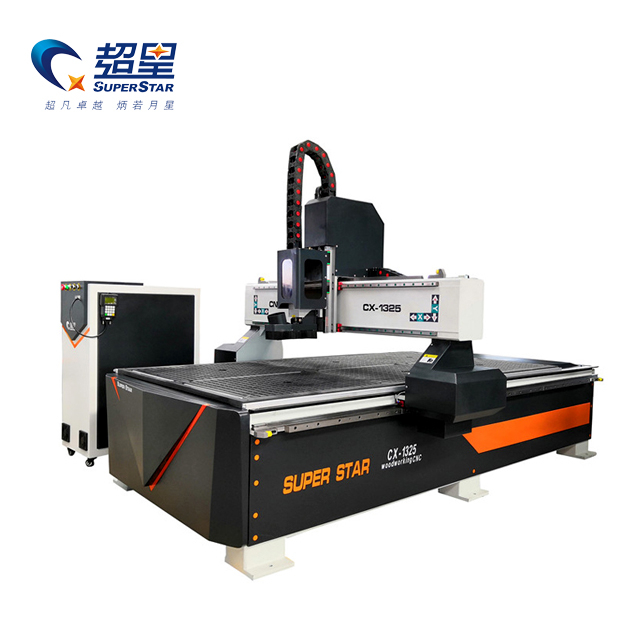

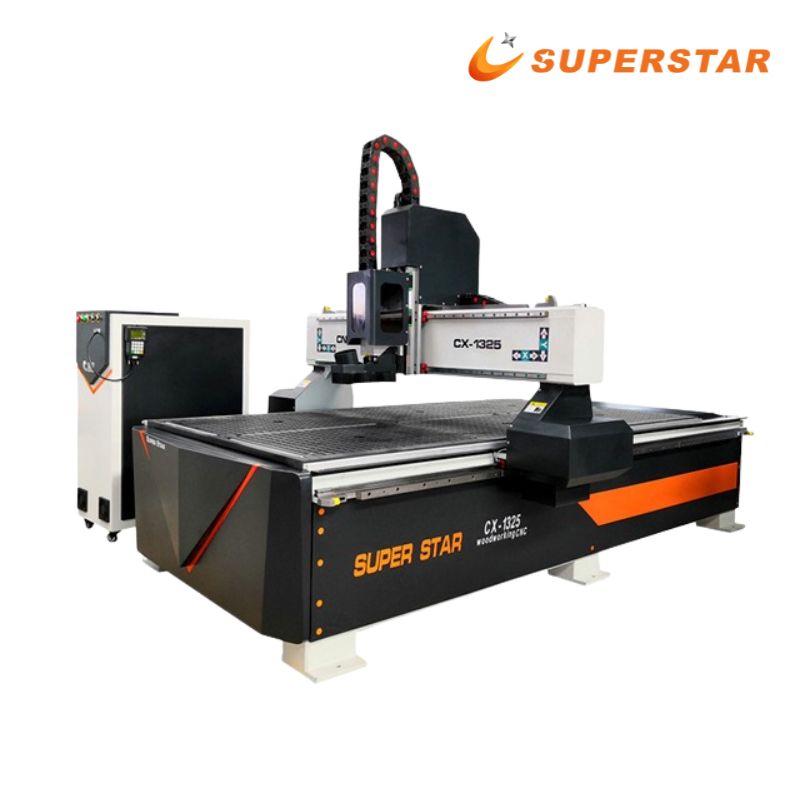

The Superstar CX-1325 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) transforms traditional woodworking by combining flat panel processing and rotary carving into one workstation.

While it excels at cutting cabinets and doors like a standard CNC, its true power lies in the 4th Axis Rotary Device. This attachment allows the machine to rotate a cylindrical workpiece while the spindle moves along the X and Z axes, creating complex 3D spirals, statues, and intricate furniture legs that are impossible on a 3-axis machine.

Core Advantages

• Dual-Processing Capability: Instantly switch between flat sheet cutting (2D/3D) and cylindrical rotary engraving (4-Axis) without complicated setup changes.

• Industrial Steel Gantry: The gantry is constructed from thickened steel tubes, precision-welded and stress-relieved to support the extra weight of the rotary device and ensure vibration-free carving at high speeds.

• High-Torque Drive System: Utilizing Leadshine Stepper or optional Yaskawa Servo motors to provide the holding torque needed for deep 3D relief carving in hardwoods like oak and mahogany.

• Intelligent "Breakpoint" Memory: The DSP control system automatically saves the machining point if power fails or a tool breaks, allowing you to resume the job exactly where it left off, saving valuable materials.

Technical Parameters

Detailed Configuration & Component Analysis

• Side-Mounted Rotary Device:

Unlike some machines that place the rotary axis on the table (reducing working area), the CX-1325 can be configured with a side-mounted rotary unit. This keeps the full 4x8ft bed clear for flat sheet processing at all times.

• 3.5KW+ Air Cooled Spindle:

We equip this machine with high-power industrial spindles (HQD or HSD brands) that maintain constant torque even at lower RPMs, which is critical when carving deep reliefs into dense hardwood.

• Heavy-Duty Z-Axis:

The Z-axis assembly is reinforced with a TBI ball screw and dual pneumatic counter-balance cylinders (on larger models) to ensure smooth vertical movement, preventing "stutter lines" on your 3D carvings.

Applicable Industries & Materials

• Furniture Manufacturing: Stair handrails, newel posts, sofa legs, dining table legs, and decorative pillars.

• Architectural Millwork: Corbels, molding, and 3D wall panels.

• Religious Artifacts: Carving statues, idols, and complex relief totems.

• Advertising: 3D foam sculpting for props and large-scale signage.

Why Choose Superstar CNC?

• Factory Direct Quality: Jinan Jinshengxing Machinery manufactures the frame, gantry, and critical assemblies in-house, ensuring stricter quality control than assemblers who buy parts.

• Free 4-Axis Training: 4-axis programming can be tricky. We provide specialized video tutorials on how to set the "origin" for rotary work and generate toolpaths in ArtCAM/Aspire.

• Global Export Standards: Our machines are CE certified and come with multi-language manuals, ready for use in Europe, the Americas, and Asia.

Frequently Asked Questions (FAQ)

Q: Can I remove the rotary attachment?

A: If the rotary is placed on top of the table, yes, it can be unclamped and removed. If it is side-mounted, it stays permanently attached but does not interfere with flat cutting.

Q: What software do I need for 4-axis carving?

A: You will need software that supports rotary wrapping or 4-axis toolpaths, such as Vectric Aspire, ArtCAM, or Powermill. We provide post-processors compatible with our controller.

Q: What is the maximum diameter I can turn?

A: Standard diameter is 200mm. However, we can customize the gantry height (Z-axis clearance) to allow for diameters up to 400mm or more upon request.

Q: Does it come with a dust collector?

A: The dust collector is an optional accessory. We highly recommend adding our double-bag dust collector to keep your workshop clean, especially when sanding or surfacing MDF.

Expand Your Capabilities with Rotary Carving

Don't limit your business to flat panels. Unlock the profitable world of 3D furniture components with the CX-1325. Contact Superstar CNC for a quote today.
