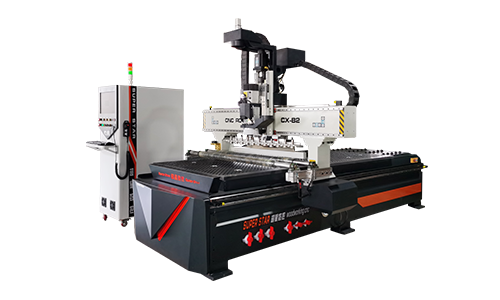

The ATC CNC Wood Router is the kind of ATC CNC router with automatic tools holder which is designed and fabricated by Superstar CNC, specially suitable for woodworking industry. The XYZ Axis of our CNC wood router is equipped with Japanese YASKAWA servo motor, Original servo drive, high quality screw transmission, original Taiwan HINWIN linear bearing guide and double row four ball slider, 9KW air cooling spindle and Taiwan LNC system. This ATC CNC wood Router for sale is widely used in furniture Industry. This ATC CNC router has the characteristics of unique design, compact structure, high precision, high speed. smooth operation and longer service life.
The software can be Alphacam, Artcam, Castmate and other CAD/CAM design software according your requirement. The ATC CNC wood router has vacuum system, dust collector, six-zone vacuum adsorption table for the density board and other soft material processing. The vacuum system can be sucked in the processing process of wood chips and debris to keep the table clean and indirect maintenance of the equipment.
Specifications of ATC CNC Router Woodworking Machine B2
WORKING AREA(X*Y*Z) | 1300mmx2500mm*200mm |
Bed size | 1300mmx2500mm |
Max working speed | 30m/min |
Repeat position | 0.05mm |
Countertop structure | Vacuum adsorption table |
Command code | G code |
XYZ Axis structure | Screw rail |
Input Power | 12KW |
Power | AC380V / 50Hz |
Spindle | HQD 9KW air cooling |
Spindle rotation speed | 18000rpm / min |
Drive motor | Japan Yaskawa servo motor |
Operating system | Taiwan LNC |
Vacuum dust collector power | 5.5KW Dust collector |
Vacuum pump power | 7.5KW air pump |

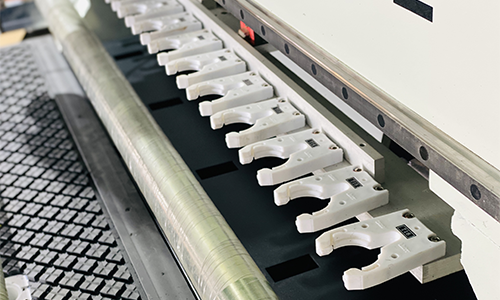

Tools holder | 12 Tools |
Our client Mr. Krzysztof is from Poland would like to make wood furniture at his local place. He has his own furniture factory and planned to enlarge his wood furniture industry. So he planned to purchased one ATC CNC Router. There were many sets of wood machine in his new plant. He was very interest with our ATC CNC Router design and function. It can be used for many wood doors and cabinets. According to his request, we signed the contract. And he learned how to operated this ATC CNC router by himself. It’s a very nice wood engraving machine as he said. Now the ATC CNC Router is in very good condition.
Superstar CNC is the leading ATC CNC Router designer, manufacturer and exporter since 2003. We have over 400 professional staffs and over 70,000 square meters factory. Our high quality innovative products include ATC CNC routers, CNC engraving machines and CNC carving machines, etc. OEM and ODM are available. Our annual CNC machine output is over 12,000 sets, which had been exported to over 136 countries. If you have any questions or inquiries, please fill in and submit the following form, we will reply as soon as possible.
