Every Detail Packed, Every Component Protected: How We Delivered A Customized Wood Carving Machine To Albania — July 2026

A Note Before We Begin

Most clients ask about machine specs. Some ask about price. Occasionally, a client asks about something that tells you immediately they have been burned before.

Our Albanian client asked about packaging.

Not as an afterthought. Not as a checkbox at the end of the conversation. They asked about it upfront, in detail, with specific requirements — because they had seen what happens when a machine travels thousands of kilometers in inadequate packaging, and they were not willing to go through that again.

We took that seriously. And in July 2026, we delivered a fully customized CX-1325 Wood Carving Machine to Albania packed to a standard that we are genuinely proud of.

Here is the full story.

1. The Client's Situation

The client operates a custom woodworking and decorative carving workshop in Albania. Their work spans arts and crafts, custom furniture components, architectural millwork, and advertising signage — the kind of varied, detail-oriented production that demands a machine with both precision and versatility.

When they contacted us, the product conversation was relatively straightforward. They knew the format they needed — a 1325-class CNC router — and they had a clear picture of their production requirements. What drove the deeper conversation was a single, firm requirement they stated early on:

"The packaging must be thorough. Nothing missing, nothing loose, nothing damaged. We have had problems before with shipments from other suppliers — parts missing from the crate, accessories not listed on the packing slip, components damaged in transit. We need a supplier who takes packaging as seriously as we take our work."

That statement set the tone for everything that followed. We did not treat it as a complaint about a previous supplier. We treated it as a specification — as precise and non-negotiable as any machine parameter.

2. The Machine: Customized to the Client's Production Needs

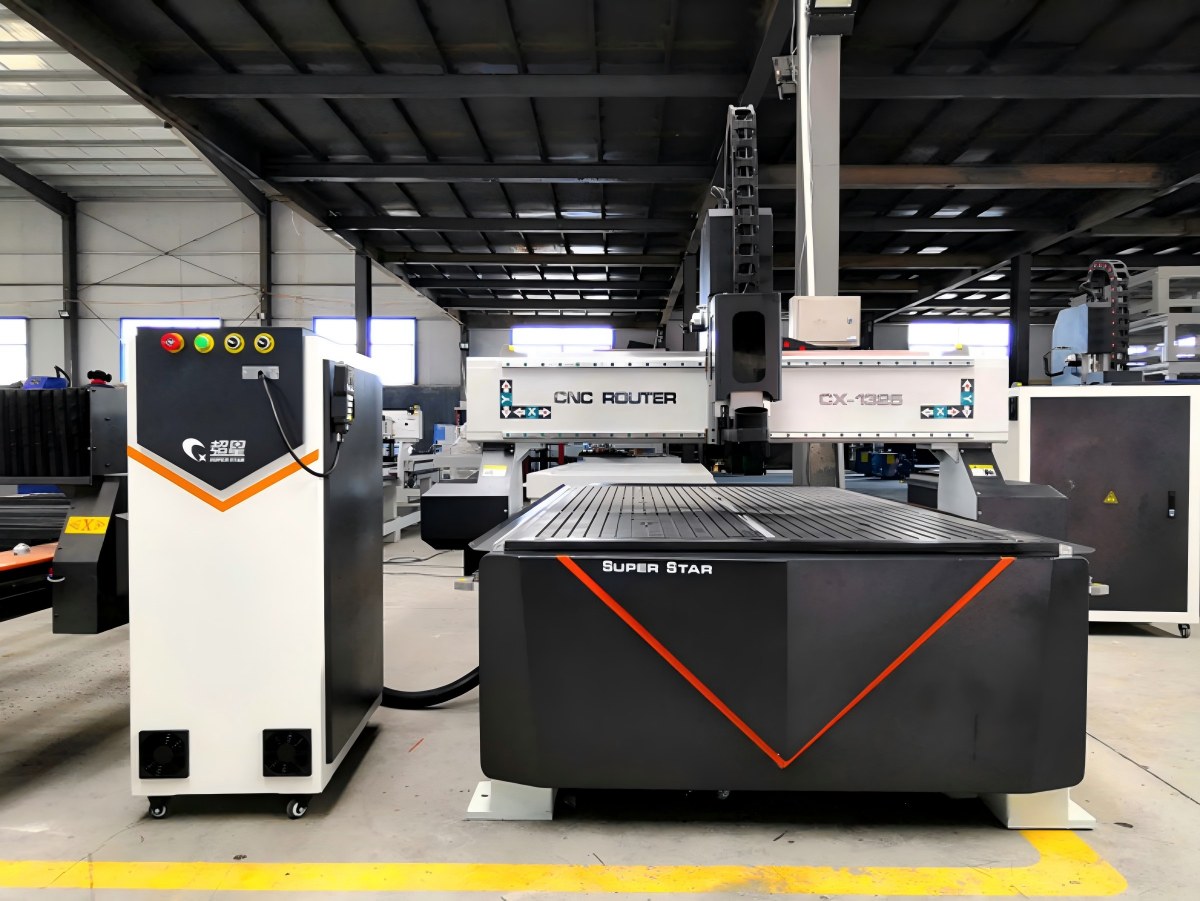

The Superstar CX-1325 Customized Wood Carving Machine is not a fixed-configuration product. It is built around a consultation — we work with each client to configure the spindle, drive system, control interface, and table structure to match their specific materials and production patterns.

For this Albanian client, the configuration was determined through a detailed needs assessment:

Spindle: 3KW Water-Cooled

The client's primary work involves long-cycle 3D relief carving on solid hardwood and MDF — exactly the application where a water-cooled spindle outperforms air-cooled alternatives. Water cooling maintains stable spindle temperature during 8–10 hour carving sessions, preventing thermal expansion that would otherwise introduce depth errors in intricate 3D work. The 3KW rating provides the torque needed for dense hardwoods without oversizing the machine for the client's actual material range.

Precision: ±0.05mm Positioning Accuracy

For decorative carving and custom furniture work, surface quality and dimensional accuracy are non-negotiable. The CX-1325 achieves ±0.05mm positioning accuracy through its combination of Taiwan TBI/HIWIN premium linear guide rails — wider contact surface, higher load capacity, smoother gantry movement — and precision ball screw Z-axis for exact depth control on every plunge.

Control System: NC Studio / DSP Optional

We discussed the client's workflow in detail before confirming the control system. The NC Studio PC-based system offers visual toolpath verification — ideal for complex 3D carving work where previewing the toolpath before cutting expensive hardwood is valuable. The DSP handheld offline option was also presented for operators who prefer shop-floor independence from a PC. The client's final selection was matched to their team's existing workflow.

Automatic Lubrication System

The CX-1325 for this client was configured with an automated lubrication system that periodically delivers oil to the guide rails and drive components on a timed cycle. For a workshop running long carving sessions, this eliminates a common maintenance failure point — operators forgetting manual lubrication — and directly extends the service life of the rails and rack.

Full Technical Specifications

What This Machine Handles

3. The Packaging: Where We Raised Our Standard

This is the section of the case study that the client cared about most — and so it is the section we have documented in the most detail.

When a client specifies that packaging is a hard requirement, the correct response is not to say "don't worry, our packaging is fine." The correct response is to show them exactly what you are going to do, and then do it.

Here is the packaging protocol we executed for this shipment:

Step 1 — Complete Pre-Pack Inventory Audit

Before a single item was wrapped, our logistics team conducted a full inventory audit against the packing list:

• Main machine body and gantry assembly

• Spindle motor and water cooling pump + tubing

• Control cabinet and DSP/NC Studio controller

• All axis drive motors and cabling harnesses

• Tool kit: router bits, wrenches, collets

• Consumables: spare fuses, lubrication oil, coolant

• Documentation: operation manual, wiring diagram, parameter sheet, software USB

• Spare parts package: spare spindle bearings, drive components

Every item was physically checked, counted, and matched against the packing list before packaging began. Nothing was assumed to be present — everything was confirmed.

Step 2 — Component-Level Protection

Each category of component received protection appropriate to its fragility and value:

• Guide rails and rack surfaces: Wrapped in VCI (Vapor Corrosion Inhibitor) anti-rust film, then covered with foam padding to prevent surface contact damage during transit

• Spindle motor: Individually boxed with dense foam surround, secured to prevent any rotational movement

• Control cabinet: Wrapped in anti-static film, then bubble wrap, then foam-lined internal box — protecting both the electronics and the display screen

• Water cooling pump and fittings: Drained, dried, individually bagged and labeled, packed in a dedicated accessory box

• Small parts and tooling: Each category in labeled zip-lock bags, grouped in a clearly marked accessory tray — no loose items anywhere in the crate

• Documentation and USB: Sealed in a waterproof plastic envelope, attached to the inside lid of the crate for immediate access upon opening

Step 3 — Machine Body Securing

The 1200kg machine body was:

• Lowered onto a reinforced hardwood export pallet, bolted through the machine base feet with steel bolts and locking washers

• Gantry travel locked with timber blocking on both ends of the X-axis travel to prevent gantry movement during transport

• Z-axis locked in raised position with a dedicated travel lock bracket

• All protruding components (cable carriers, limit switch brackets) padded with foam and wrapped

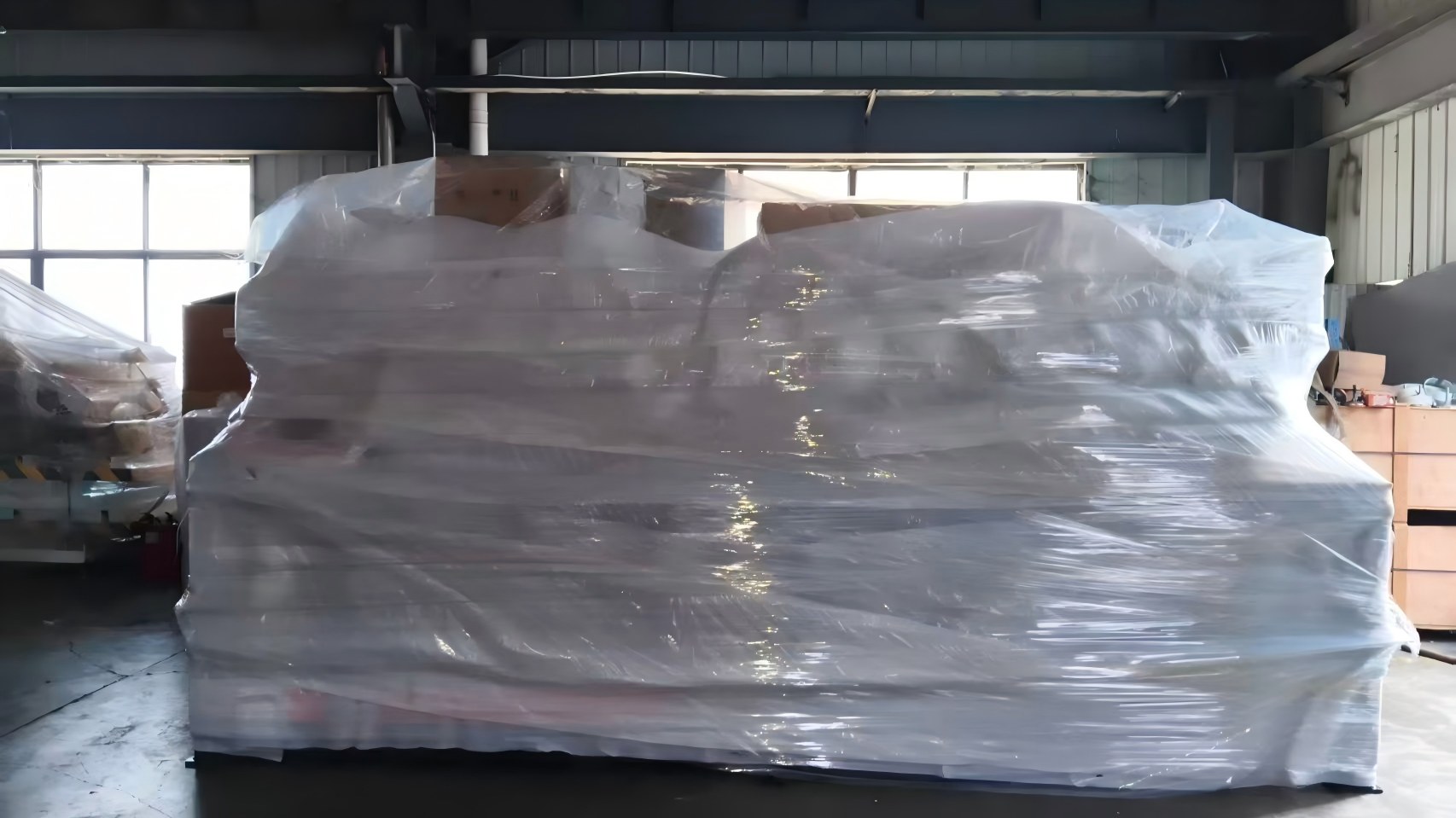

Step 4 — Crate Construction and Sealing

The outer crate was constructed from thick-wall timber with steel corner angle brackets at all eight corners — the highest-stress points during stacking and handling. Internal cross-bracing was added to the crate walls to resist lateral compression from adjacent cargo.

The crate was then:

• Sealed with steel banding straps (two horizontal, two vertical)

• Wrapped in moisture-proof stretch film

• Marked on all four sides and the top with: gross weight, net weight, center of gravity marker, lifting point indicators, "FRAGILE – CNC MACHINE", "THIS SIDE UP", and destination details in both English and Albanian

Step 5 — Photo-Documented Packing Record

Every stage of the packing process was photographed. The complete photo record — from bare machine to sealed crate — was compiled into a packing documentation file and sent to the client before the shipment departed.

The client could see, in sequence, exactly how every component was protected and exactly where every accessory was packed. No surprises. No missing items. No uncertainty.

Their response when they received the photo file: "This is exactly what we asked for. This is how it should be done."

4. Quality Inspection: Before the First Layer of Packaging

Exceptional packaging protects a machine that has already been verified to work correctly. Our pre-shipment QC inspection covered:

• Geometric calibration: Gantry squareness verified across full Y-axis travel; X/Y/Z axis perpendicularity confirmed

• Positioning accuracy test: Repeated positioning test patterns run on all three axes — results within ±0.05mm specification

• Spindle performance: Run-in at progressive speeds to 24,000 RPM; water cooling flow confirmed; no vibration or noise anomalies

• Automatic lubrication cycle test: Confirmed timed lubrication delivery to all rail and rack lubrication points

• Control system function test: Full toolpath loaded and executed via NC Studio / DSP; all axis movements, spindle control, and emergency stop verified

• Full material cutting test: Test carving executed on MDF — 2D engraving, 3D relief, and full-depth cutting — recorded on video and sent to client for approval

The client approved the test video before packaging began.

5. The Service Journey: Timeline

Days 1–3 Needs assessment: production applications, materials, spindle preference,

control system preference, table type confirmed

Packaging requirements documented as formal project specification

Days 4–5 CX-1325custom configuration proposed and approved

Days 6–7 Contract signed; customized production begins

Days 8–28 Machine manufactured to client's configuration

Automatic lubrication system installed and tested

Taiwan TBI/HIWIN rails fitted and aligned

Days 29–32 Pre-shipment QC inspection completed

Cutting test video produced and sent to client — approved

Days 33–37 Full packaging protocol executed (5-step process)

Packing photo documentation compiled and sent to client

Client confirms: "This is exactly what we asked for"

Days 38–40 Shipping documents prepared and dispatched:

Commercial Invoice, Packing List, Bill of Lading,

QC Report, Operation Manual, Wiring Diagram, Software USB

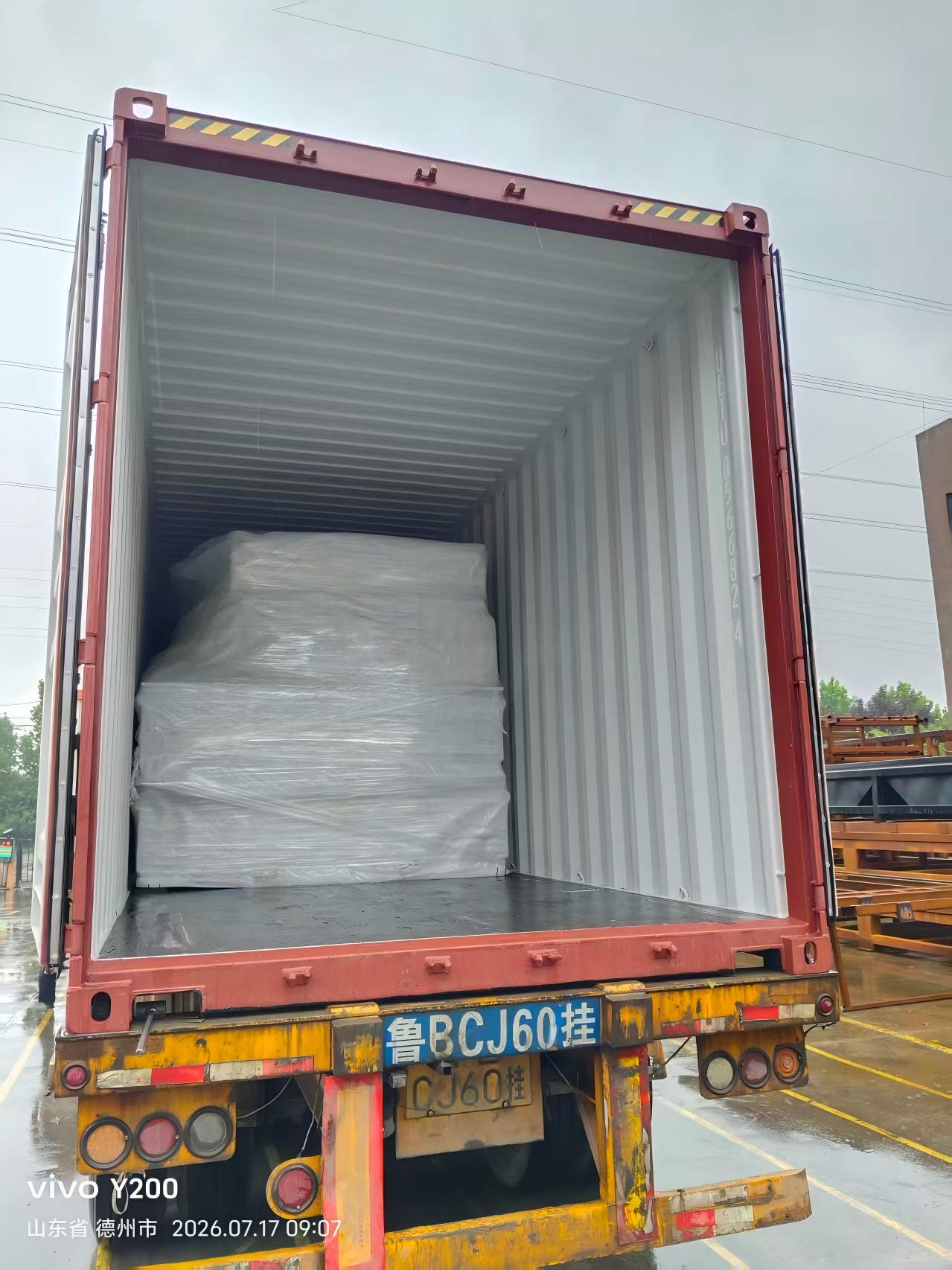

Day 41 Machine shipped to Albania

Days 42–55 Ocean freight + European overland transit

Post-arrival Remote video commissioning: installation, calibration,

first test cuts — client operational within 48 hours

6. The Value We Delivered

7. What This Case Means for Workshops Like Yours

✅ Packaging is a specification, not an afterthoughtIf you have ever received a machine with a missing accessory, a damaged component, or a loose part rattling around the crate — you know the cost of inadequate packaging. It is not just the repair or replacement cost. It is the downtime, the back-and-forth with the supplier, and the delayed production start. Tell us your packaging requirements upfront. We will document them and execute against them.

✅ Ask your supplier for a packing photo recordA supplier who is confident in their packaging will show you exactly how it was done — before the crate is sealed and the ship has sailed. If a supplier cannot or will not provide photographic documentation of the packing process, that tells you something important about their quality culture.

✅ Customization is not a premium — it is the right approachA standard machine configured for the average customer is not the same as a machine configured for your specific materials, your specific production cycles, and your specific workshop environment. The CX-1325 customization process costs no more than buying off the shelf — but it means you get exactly what your production needs, not what was easiest to build.

✅ Water-cooled spindles are the right choice for long carving cyclesIf your work involves extended 3D carving sessions on hardwood — hours at a time, not minutes — a water-cooled spindle is not optional. It is the difference between a spindle that maintains accuracy through a 10-hour carving job and one that thermally drifts and shortens its own service life.

✅ Taiwan guide rails are a long-term investmentThe difference between standard guide rails and Taiwan TBI/HIWIN rails shows up over time — in smoother gantry movement, in maintained positioning accuracy after years of use, and in the reduced frequency of rail replacement. For a machine you plan to run daily for five or ten years, the rail specification matters.

Final Thoughts

This Albania project was a reminder that the details of how we ship a machine matter just as much as the details of how we build it.

Our client did not just want a good CNC router. They wanted a supplier who would treat every component — every accessory, every cable, every piece of documentation — with the same care they bring to their own craft. That is a standard we understand, because it is the standard we apply to our own work.

We built the machine to their specification. We packed it to their standard. We documented every step. And when the crate arrived in Albania and was opened, everything was exactly where it should be — protected, labeled, and ready to work.

If you are looking for a CNC wood carving machine and you need a supplier who takes the details as seriously as you do — let's talk.
