Product Overview

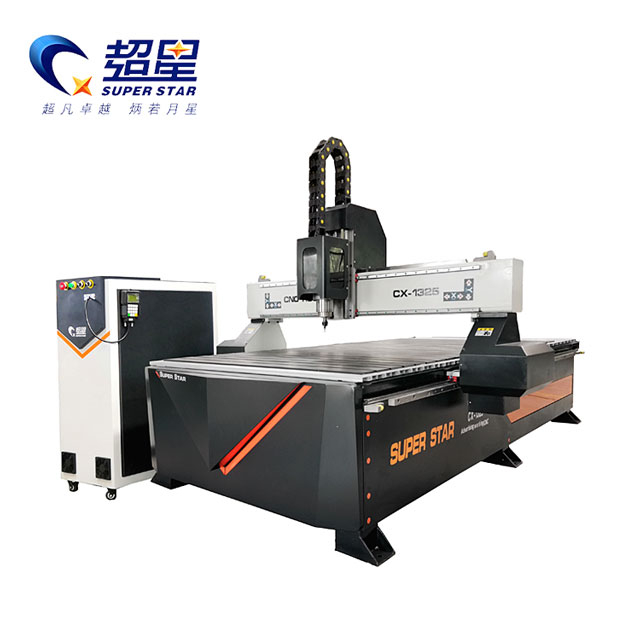

The Superstar CX-1325 CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the essential workhorse for both the advertising signage industry and standard woodworking . Designed to balance high-speed production with affordability, this 4x8 ft (1300x2500mm) machine easily handles full-sized sheets of MDF, acrylic, and plywood .
The core strength of the CX-1325 lies in its heavy-duty construction. The entire machine body is constructed from seamlessly welded steel that undergoes a strict high-temperature tempering and aging treatment . This guarantees absolute rigidity and ensures the machine will never deform or warp over time, providing a stable foundation for the high-speed spindle to execute perfectly clean, chatter-free cuts .
Core Advantages
Intuitive DSP Control System: Operates via the DSP A11 handheld controller . It features a split-keyboard operation that is separated from the main cabinet, making it incredibly simple, convenient, and easy to learn without requiring a dedicated PC .
High-Endurance Spindle: Equipped with a 3KW JST water-cooled spindle . Water cooling significantly extends the motor's power life and allows for long, continuous hours of high-speed (24,000 RPM) operation, producing flawlessly smooth carved surfaces .
Precision Linear Motion: The machine utilizes high-precision 20mm square linear guide rails. These widened rails ensure smooth gantry operation, higher load-bearing capacity, and a significantly longer service life compared to round rails .
Reliable Drive Mechanics: Powered by high-speed 450B stepper motors and JMK 860 drivers, ensuring exact positioning and rapid travel speeds across the X, Y, and Z axes .
Technical Parameters
Feature | Specification |
Model | CX-1325 |
X / Y / Z Working Area | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | JST 3KW Water Cooling |
Spindle Rotation Speed | 24,000 RPM / min |
Control System | DSP A11E |
Drive Motors | JMK 860 Driver & Step Motor 450B |
Transmission Structure | X/Y Rack Rail; Z Screw Rail |
Countertop Structure | Aluminum Table |
Linear Rail | 20mm Square Rail |
Inverter | 3 KW Inverter |
Input Power | 8 KW |
Power Supply | 220V / 50HZ |
Machine Weight | 800 KGS |
Machine Size (L×W×H) | 3000 mm × 2000 mm × 1800 mm |
Detailed Component Analysis
The machine features a durable Aluminum T-slot table . This provides an incredibly strong surface for mechanically clamping down a wide variety of materials—from thick, irregular hardwood blocks to thin acrylic sheets—ensuring they remain perfectly secure during high-torque cutting.
The X and Y axes utilize a robust rack and pinion transmission system . This setup provides faster travel speeds and better acceleration than ball-screw-only systems, significantly reducing the overall cycle time for large advertising and cabinetry jobs.
The Z-axis relies on a precision ball screw to manage the vertical plunge of the spindle . This guarantees exact depth control, which is critical when performing intricate 3D engraving or cutting precisely halfway through a material.
Applicable Industries & Materials
Advertising & Signage: Precision cutting, 2D hollowing, and 3D engraving of large-format signs and dimensional letters .
Woodworking & Carpentry: Manufacturing wooden doors, custom furniture, cabinets, and decorative wooden screens .
Mold Making: Routing 2D/3D shapes from wood and high-density foam .
Compatible Materials: Wood sheets, MDF, Hardwood, Acrylic sheets, PVC foam sheets, PCB sheets, ABS double-color sheets, etc. .
Why Choose Superstar CNC?
Cost-Effective Versatility: The CX-1325 is the perfect entry-to-mid-level industrial router. It offers the heavy-duty stability of a much more expensive machine while operating on standard 220V power , making it accessible to shops of all sizes.
Proven Longevity: With a machine weight of 800 KGS and a stress-relieved steel frame , this router is built to withstand years of continuous, daily operation without losing its structural calibration.
Frequently Asked Questions (FAQ)
Q: Does this machine require a computer to operate?
A: No. The machine uses the DSP A11 offline control system . You create your G-code design on your office computer, save it to a USB drive, and plug the USB directly into the machine's handheld controller.
Q: Can it cut through solid hardwood?
A: Yes. The 3KW water-cooled spindle provides excellent torque and high speeds (24,000 RPM) . When paired with the correct router bit, it easily cuts and 3D carves dense hardwoods like oak and mahogany.
Q: What software is compatible with this machine?
A: The machine accepts standard G-code . You can use any major CAD/CAM software to design your projects, including ArtCAM, Vectric Aspire, Type3, or Fusion 360.
