Product Overview

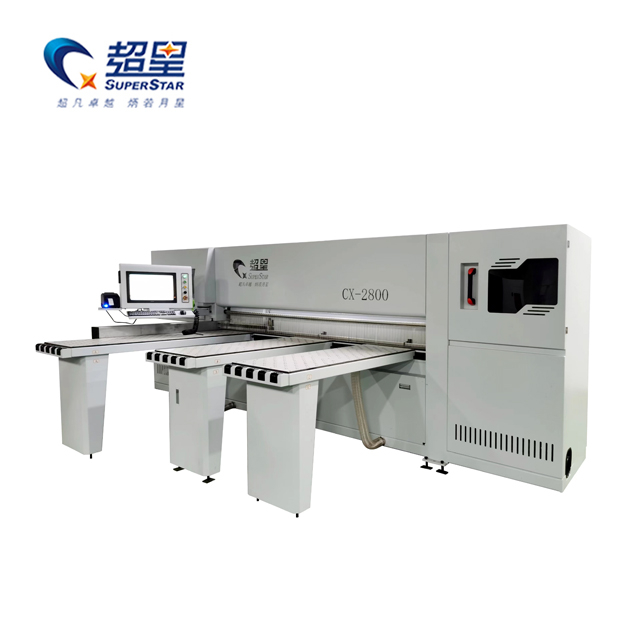

The Superstar CX-2800 Beam Saw (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is engineered for factories that demand absolute precision at high volumes . While traditional sliding table saws require intensive manual labor and are prone to human measurement errors, the CX-2800 automates the entire sizing process.
Powered by a massive 16.5KW main and sub-saw motor system, it powers through dense stacks of large core boards, artificial stones, and hardboards effortlessly . The heavy-duty rack and pinion driving system guarantees smooth carriage movement, while the integrated 2.2KW air float tables allow a single operator to maneuver heavy, oversized panels into position without friction or surface scratching .
Core Advantages
China-Initiated Two-Finger Gripper: Features a flexible two-finger structural design capable of securely gripping plywood strips as narrow as 20mm, drastically reducing material waste and optimizing offcut usage .
Delta Servo Precision: Driven by a 2.0KW imported Delta servo motor system that guarantees exact dimensional accuracy (±0.2mm) and completely eliminates artificial measuring errors .
Intelligent Fault Detection: Built with a sophisticated online fault detection device. The system actively monitors machine health, alerts operators to issues instantly, and supports remote maintenance diagnostics to prevent costly factory downtime .
User-Friendly Control: Features a simple, intuitive sawing control interface that rapidly translates cutting lists into optimized cutting patterns, making it highly accessible even for unskilled operators .
Technical Parameters
Feature | Specification |
Model | CX-2800 |
Total Installed Power | 22.5 KW |
Main / Sub-Saw Motor Power | 16.5 KW |
Maximum Cut Thickness | 90 mm |
Vertical Cut Capacity | 2600 mm / 3300 mm / 3800 mm |
Horizontal Cut Capacity | 2750 mm / 3300 mm / 3800 mm |
Saw Cut Speed | 100 m/min |
Positioning Accuracy | ± 0.2 mm |
Main Saw Blade Diameter | 350 mm / 380 mm (Outer) / 30 mm (Inner) |
Servo Motor Power | 2.0 KW (Delta) |
Air Float Table Fan | 2.2 KW High-Pressure Fan |
Working Air Pressure | 0.6 - 0.7 MPA |
Location Mode | Voluntary (Automatic Positioning) |

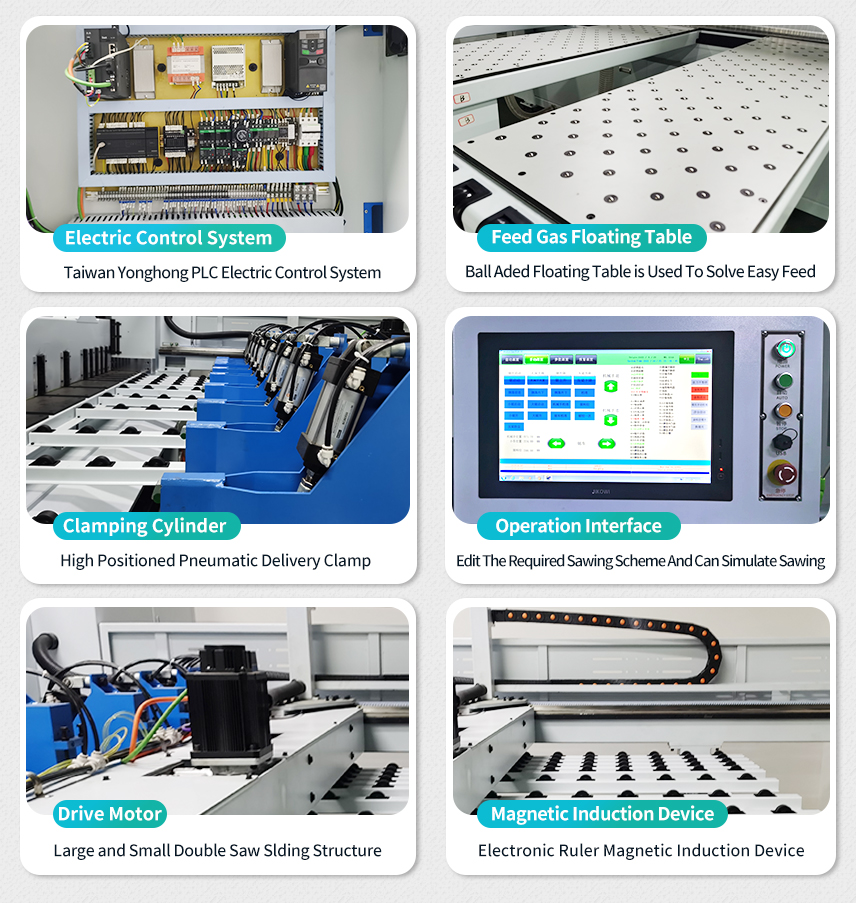

Detailed Component Analysis
The saw carriage utilizes a high-precision gear rack driving mechanism rather than a standard chain drive . This ensures zero backlash during high-speed travel (100m/min) and delivers an exceptionally clean, chip-free edge.
To protect delicate veneers and high-gloss laminates, the front loading tables emit a high-pressure cushion of air (via a 2.2KW fan), allowing heavy panel stacks to glide effortlessly into the clamping zone .
The dual saw setup (main saw and scoring saw) works in tandem to prevent tear-out on the bottom edge of laminated boards, a critical requirement for seamless edge-banding in subsequent production steps.
Applicable Industries & Materials
Target Industries: High-volume panel furniture manufacturing, custom cabinetry, architectural millwork, interior door production, and hardware/appliance packaging factories .

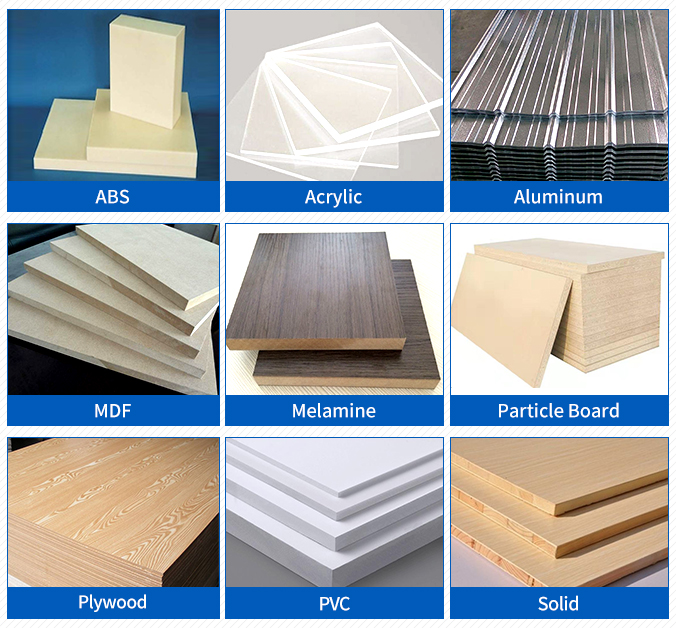

Compatible Wood Materials: MDF, Plywood, Large Core Board, Solid Wood, Particle Board, Laminate Flooring, and Gypsum Board .
Compatible Synthetics: Plexiglass, ABS, PVC, PS, PET, Artificial Stone, Aluminum-Plastic Board, Grating Plate, and Artificial Leather .
Why Choose Superstar CNC?
Maximum Yield Optimization: The ability to grip 20mm strips combined with intelligent optimization software ensures you get the most out of every sheet of MDF, directly impacting your bottom line .
Built for 24/7 Operations: With a total installed power of 22.5KW and a rigid, stress-relieved steel frame, this machine is designed for continuous, multi-shift factory operation .
Global Remote Support: Thanks to the integrated remote maintenance module, our engineering team can diagnose and troubleshoot software or electrical issues instantly, no matter where your factory is located in the world .
Frequently Asked Questions
Q: Can this machine cut multiple boards at the same time?
A: Yes. With a maximum cutting thickness capacity of 90mm, you can stack and cut 4 to 5 standard 18mm MDF panels simultaneously with absolute precision, multiplying your sizing output .
Q: Does the machine require highly skilled operators to program?
A: No. The machine is designed with a highly intuitive control system . The operator simply inputs the desired dimensions or uploads a cutting list, and the computer automatically calculates the carriage limits and positioning.
Q: Can it cut acrylic and plastic materials without melting the edge?
A: Yes. Because the saw carriage operates at a high speed of 100 m/min, the blade moves through synthetic materials like ABS, PVC, and Plexiglass rapidly enough to prevent the friction heat that causes edge melting .
