Product Overview

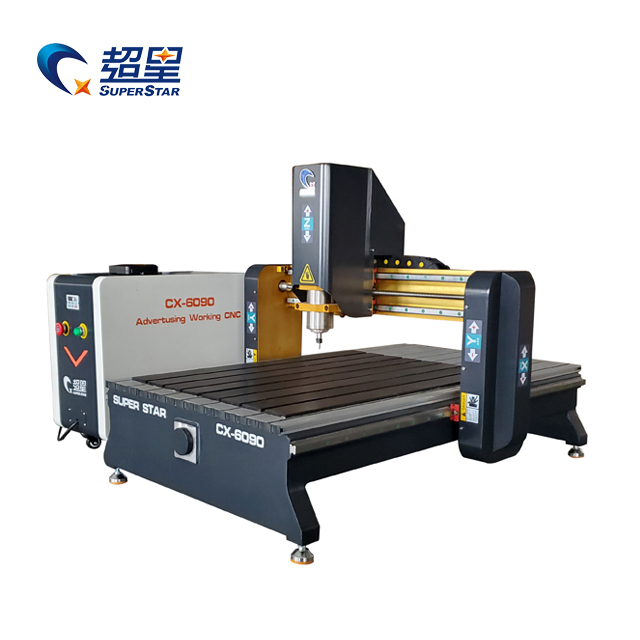

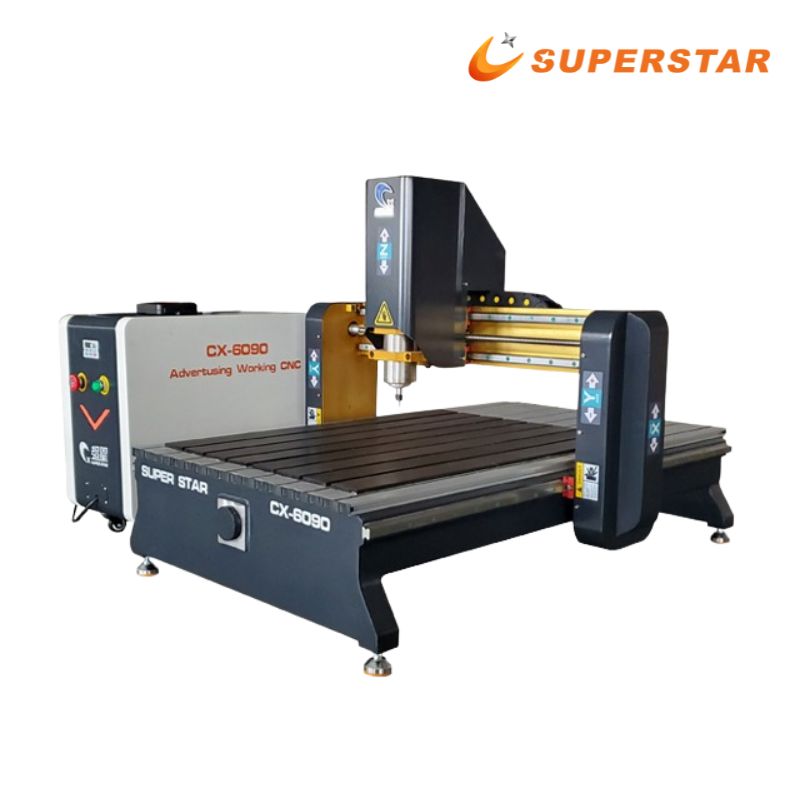

The Superstar 6090 Mini Wood Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the perfect solution for makers who need industrial-level precision but lack the floor space for a full 4x8 router.
Despite its "desktop" classification, the 6090 is built like a heavy-duty machine. Instead of lightweight aluminum extrusion frames found on cheap hobby routers, the 6090 utilizes a solid cast-iron machine body. This massive weight provides a stable, rigid foundation that completely eliminates vibrations during high-speed cutting. Combined with premium linear guide rails and ball screw transmission on all axes, the machine delivers flawless detail on small, intricate projects.
Core Advantages
Space-Saving Footprint: The 600mm x 900mm (approx. 24x36 inches) working area is large enough for most custom signage and craft projects, yet small enough to fit into a home garage, school classroom, or crowded fabrication shop.
Industrial Cast-Iron Frame: The cast-iron body ensures the machine remains stable and sturdy, allowing for high-torque cutting and high-speed travel without structural distortion.
High-Speed Processing: Equipped with a high-precision spindle capable of reaching 24,000 RPM, ensuring clean, chip-free edges when cutting acrylic, MDF, or soft metals.
Simple Automation: Designed for ease of use, it features a highly intuitive control system (such as DSP or Mach3) that makes automated processing simple for both beginners and experienced machinists.
Typical Technical Parameters
Feature | Specification |
Model | Superstar 6090 Small CNC Router |
Working Area (X × Y × Z) | 600 mm × 900 mm × 150 mm |
Spindle Power | 1.5 KW / 2.2 KW (Water-Cooled options) |
Spindle Speed | 1 – 24,000 RPM |
Control System | Mach3 / DSP Handheld Controller |
Drive Motors | Precision Stepper Motors |
Transmission (X/Y/Z) | Taiwan TBI Ball Screw on all axes |
Guide Rails | Hiwin / PMI Linear Guide Rails |
Working Table | Aluminum T-Slot Table with PVC Protection |
Machine Body | Solid Cast-Iron Frame |
Working Voltage | AC 220V / 50-60HZ / Single Phase |
Detailed Component Analysis
Unlike larger machines that use rack-and-pinion on the X and Y axes for speed, the 6090 uses precision ball screws on all three axes (X, Y, and Z). This configuration prioritizes extreme, micro-level accuracy over rapid travel speed, making it ideal for jewelry boxes, PCB milling, and fine 3D reliefs.
Typically configured with a water-cooled spindle, it provides excellent heat dissipation for long continuous runs (like deep 3D carving) and operates much quieter than standard routers, making it perfect for office or classroom environments. (An oil cooling system is also available for specialized metal processing).
The heavy-duty T-slot table allows operators to securely clamp down thick blocks of hardwood, brass, or small acrylic offcuts that a vacuum table would struggle to hold.
Applicable Industries & Materials
Arts & Crafts: 3D carving of wooden gifts, jewelry boxes, personalized decor, and boutique wooden toys.
Advertising & Signage: Precision engraving of small acrylic letters, PVC nameplates, and two-color ABS desk signs.
Prototyping & Education: Ideal for engineering prototypes, architectural models, and STEM education classrooms.
Compatible Materials: Solid Wood, MDF, Plywood, Bamboo, Acrylic, PVC, PCB boards, and soft metals (Aluminum, Brass, Copper).
Why Choose Superstar CNC?
Professional Grade Mini CNC: Don't confuse the 6090 with a belt-driven DIY hobby kit. This is a fully assembled, factory-calibrated industrial machine scaled down to a 2x3 footprint.
Plug-and-Play Power: Operating on standard 220V single-phase electricity, there is no need to wire your shop for expensive 3-phase industrial power to run this machine.
Global Export Quality: Successfully exported worldwide (including Australia and the USA), we provide comprehensive English manuals, video setup guides, and direct factory support to ensure you are cutting profitably on day one.
Frequently Asked Questions (FAQ)
Q: Can this machine cut aluminum or brass?
A: Yes. Because of the rigid cast-iron frame, the all-axis ball screw transmission, and high-torque spindle, the 6090 is highly capable of milling soft metals like aluminum, brass, and copper when equipped with the proper end-mills and an oil-cooling mist system.
Q: Is it difficult to learn how to operate?
A: Not at all. The 6090 is designed for simple operation. If using the DSP controller, you simply load your G-code via a USB stick and press start. If using Mach3, you manage the machine through a highly visual, easy-to-learn PC interface.
Q: Does it come assembled?
A: Yes, the Superstar 6090 ships fully assembled from our Jinan factory. You only need to unpack it, plug it in, install your software, and begin cutting.
Request a Factory-Direct Quote Today
