Product Overview

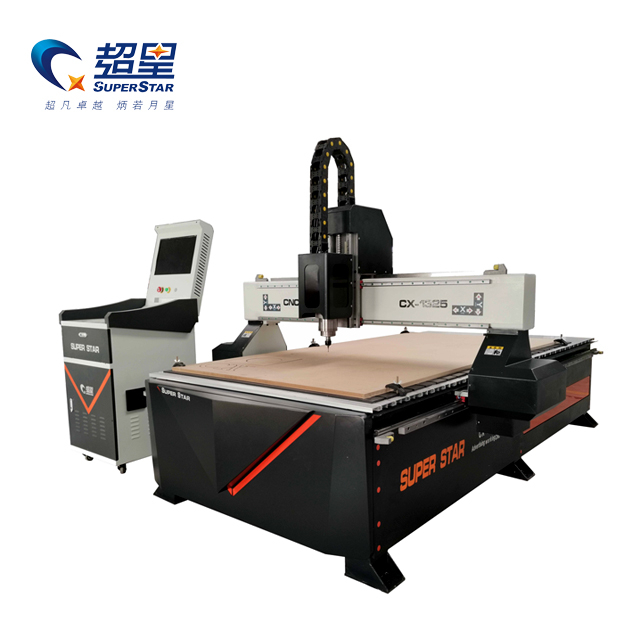

The Superstar CX-1325 Customized Wood Carving Machine (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is designed around the philosophy that no two woodworking shops are exactly alike. While the standard 1300x2500mm (4x8 ft) working area provides the ideal footprint for most sheet materials, the internal components of this machine can be entirely customized to suit your specific production goals.
The foundation remains constant: a thick-walled, seamlessly welded steel bed that has undergone high-temperature aging and tempering. This guarantees absolute structural rigidity and prevents any deformation under heavy cutting loads. From this solid base, our engineers work with you to customize the spindle, motors, and table structure, ensuring you don't overpay for features you don't need, nor fall short on the power required for your specific crafts.
Core Advantages
Fully Customizable Configuration: Choose between water-cooled or air-cooled spindles, Stepper or Servo drive motors, and Aluminum T-Slot or Vacuum Adsorption tables based entirely on the materials you process most frequently.
Precision Linear Motion: Equipped with premium Taiwan linear guide rails (TBI/HIWIN). These widened rails offer a massive contact surface, delivering exceptional load-bearing capacity and ultra-smooth gantry movement for glass-like edge finishes.
Flexible Control Options: Available with the PC-based NC Studio system (excellent for visual toolpath verification) or the handheld DSP controller (perfect for offline operation without exposing a computer to shop dust).
High-Speed Transmission: Utilizes a robust rack and pinion drive on the X and Y axes, providing rapid travel speeds and faster acceleration than ball-screw-only systems.
Typical Technical Parameters (Customizable)
Feature | Specification |
Model | CX-1325 Customized CNC |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 3.0 KW Water Cooling (Customizable up to 6KW) |
Spindle Speed | 0 – 24,000 RPM |
Control System | NC Studio / DSP Handheld (Optional) |
Drive Motors | Stepper / Servo Motors (Optional) |
Transmission | Rack & Pinion (X/Y), Ball Screw (Z) |
Guide Rails | Taiwan TBI / HIWIN Linear Guide |
Positioning Accuracy | ± 0.05 mm |
Working Table | Aluminum T-Slot / Vacuum (Optional) |
Working Voltage | AC 220V or 380V (Depending on configuration) |
Machine Weight | Approx. 1200 KGS |
Detailed Component Analysis
Provides massive torque for deep 3D relief carving while maintaining low temperatures during long runs. This prevents the "melting" or "rewelding" of plastic chips when cutting acrylic and ensures the motor will not burn out during 10-hour wood carving cycles.
The Z-axis relies on a precision Taiwan ball screw to manage the vertical plunge of the spindle. This guarantees exact depth control, which is absolutely critical when performing intricate 2D hollowing, V-grooving, or 3D relief carving on expensive hardwoods.
Typically configured with an automated lubrication system that periodically delivers oil to the guide rails and drive components, minimizing operator maintenance and drastically extending the machine's service life.
Applicable Industries & Materials
Arts & Crafts: 3D carving of custom wooden gifts, jewelry boxes, intricate wooden screens, and personalized decor.
Advertising & Signage: Precision cutting and engraving of large-format acrylic letters, PVC signboards, and exhibition displays.
Custom Furniture: Routing, sizing, and grooving for boutique cabinets, custom doors, and bespoke architectural millwork.
Compatible Materials: Solid Hardwood, MDF, Plywood, Bamboo, Acrylic, PVC, ABS, and high-density foam.
Why Choose Superstar CNC?
Built to Your Specs: As the original Jinan manufacturer, we don't just sell off-the-shelf machines. We consult with you to build a machine that perfectly balances your production needs with your capital budget.
Factory-Direct Value: We manufacture the frame and assemble the electronics in-house, cutting out the middleman to offer you premium industrial components at highly competitive prices.
Global Export Quality: With exports to over 114 countries, every machine undergoes rigorous video outgoing-inspections and is backed by dedicated English-speaking technical support.
Frequently Asked Questions (FAQ)
Q: Should I choose a Vacuum Table or an Aluminum T-Slot table?
A: If you primarily cut full 4x8 sheets of MDF or plywood for cabinets, a Vacuum table is best as it holds the flat sheets instantly without clamps. If you carve thick, irregular blocks of wood for arts and crafts, or cut small individual pieces of acrylic, an Aluminum T-Slot table is better because it allows for secure mechanical clamping.
Q: Can I upgrade the spindle power later?
A: It is much more cost-effective to customize the spindle power during the initial build. If you plan to cut very thick, dense hardwoods frequently, we recommend customizing the machine with a 4.5KW or 6KW spindle right from the factory.
Q: What software is compatible with this machine?
A: The machine accepts standard G-code. You can use any major CAD/CAM software to design your projects, including ArtCAM, Type3, Vectric Aspire, or Fusion 360.
