Product Overview

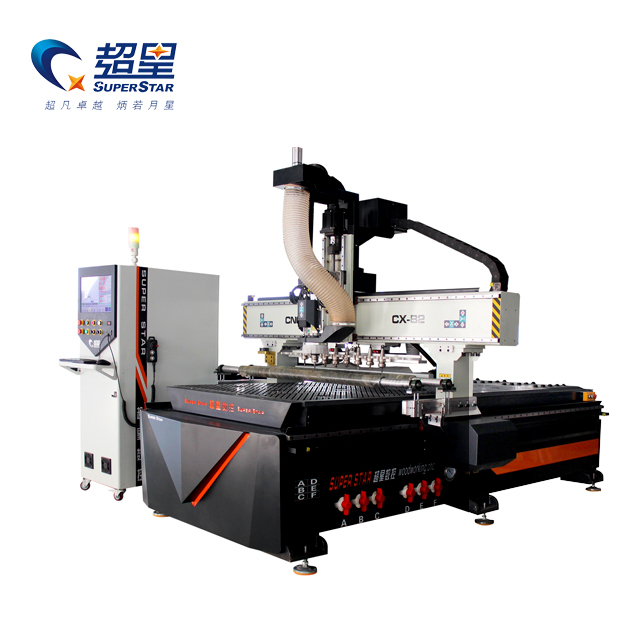

The Superstar 1325 ATC CNC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the essential workhorse for modern woodworking factories. Standard single-spindle routers severely limit production speed by forcing the operator to stop the machine to manually swap drill bits, V-groove bits, and profile cutters. The 1325 ATC completely automates this workflow.
Featuring a highly popular 1300mm x 2500mm (4x8 ft) working area, it perfectly accommodates standard-sized plywood and MDF sheets. The foundation of the machine is a heavy-duty, seamless welded steel bed that has undergone high-temperature aging. This guarantees that the frame remains perfectly square and rigid, absorbing the intense vibrations generated by the 9KW spindle to ensure your cuts remain clean, accurate, and completely free of chatter marks.
Core Advantages
Automatic Tool Changer (ATC): The machine is equipped with a high-speed tool magazine (Linear or Disc-type). The spindle automatically drops and retrieves tools based on the G-code instructions, allowing for multi-step jobs (like drilling hinge holes and cutting out complex door shapes) in a single, uninterrupted cycle.
9KW High-Frequency Spindle: The powerful 9KW air-cooled ATC spindle provides immense low-end torque for aggressive material removal on dense hardwoods, while maintaining speeds up to 18,000 RPM for glass-smooth finishes on delicate laminates and acrylics.
Taiwan Syntec Control System: This industrial-grade controller provides a highly stable, user-friendly interface. It easily processes complex nesting software files, optimizing tool paths to minimize material waste and prevent out-of-bounds mechanical crashes.
High-Adhesion Vacuum Table: Features a multi-zone vacuum adsorption table that pulls flat panels tight against the bed, eliminating the need for mechanical clamps. This guarantees that small offcuts will not shift during high-speed routing.
Technical Parameters
Feature | Specification |
Model | 1325 ATC CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 9KW Air-Cooled ATC Spindle |
Spindle Speed | Up to 18,000 RPM |
Control System | Taiwan Syntec Control System |
Drive Motors | High-Power Servo Drive and Motor |
Transmission (X/Y) | Helical Gear Rack |
Transmission (Z) | Precision Ball Screw |
Guide Rails | Taiwan Square Linear Rails |
Machine Accuracy | ± 0.05 mm |
Working Table | Multi-Zone Vacuum Adsorption Table |
Working Voltage | AC 380V / 50-60Hz / 3-Phase |
Detailed Component Analysis
Unlike stepper motors, the integrated servo motors feature a closed-loop feedback system. This means the controller always knows the exact position of the gantry, preventing lost steps during aggressive cutting and ensuring the machine stops with exact ±0.05mm precision.
The X and Y axes utilize precision helical gear racks rather than straight racks. The angled teeth ensure continuous multi-tooth engagement, dramatically reducing operational noise and delivering smoother, chatter-free edges on curved cuts.
The 9KW spindle is air-cooled, meaning there is no need to manage external water chillers or worry about freezing pipes during winter months, significantly reducing daily machine maintenance.
Applicable Industries & Materials
Custom Panel Furniture: High-volume nesting, grooving, and cutting of wardrobes, kitchen cabinets, and office desks.
Wooden Door Production: Deep 3D relief carving and precision milling of lock mortises and hinge plates on solid wood doors.
Architectural Millwork: Manufacturing decorative screens, acoustic wall panels, and exhibition displays.
Compatible Materials: MDF, Plywood, Solid Wood, Particleboard, Melamine, Acrylic, PVC, and composite plastics.
Why Choose Superstar CNC?
Global Export Quality: As a factory-direct manufacturer, we build machines that meet strict international standards. We regularly export this exact 1325 ATC model to high-demand markets like Australia and Indonesia.
Built for Longevity: The combination of a heavily tempered steel frame, Taiwan square guide rails, and premium electrical components ensures your machine will run reliably 24/7.
Comprehensive Support: We provide complete English manuals, video installation guides, and direct remote technical support from our Jinan engineering team to ensure your factory stays productive.
Frequently Asked Questions (FAQ)
Q: Does the vacuum table require me to use physical clamps?
A: No. The powerful vacuum adsorption table pulls flat boards (like MDF and plywood) securely against the work surface. This eliminates the need for mechanical edge clamps, allowing the spindle to process the entire board without obstruction.
Q: Can this machine perform 3D relief carving?
A: Yes. The Taiwan Syntec control system smoothly interpolates the X, Y, and Z axes simultaneously. Combined with the correct V-bit or ball-nose tool, the machine excels at carving deep, intricate 3D reliefs on solid wood doors and panels.
Q: What air pressure is required for the tool changer?
A: The pneumatic system that operates the spindle drawbar (to grab and release the tools) typically requires a stable supply of clean, dry air at 6-8 bar (90+ PSI).
