Product Overview

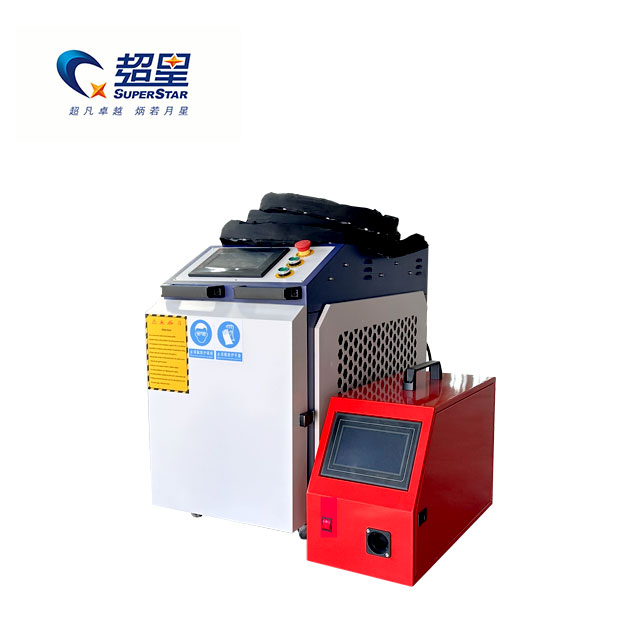

The Superstar 1500W Handheld Fiber Laser Welder (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is a game-changing tool for the metal fabrication industry. Traditional welding requires highly skilled operators and extensive post-weld grinding. This fiber laser system simplifies the process, allowing even novice operators to achieve professional, deep-penetration welds with minimal heat-affected zones.
Whether you are joining thin stainless steel for commercial kitchenware or assembling heavy carbon steel brackets, this machine delivers consistent, high-strength welds while drastically reducing labor costs and production time.
Core Advantages (The "Why Us")
High-Speed Productivity: Welds 2 to 3 times faster than traditional argon arc (TIG) or MIG welding, significantly boosting factory output.
Zero Post-Processing: The continuous laser output creates smooth, beautiful, and oxidation-free weld seams, eliminating the need for time-consuming secondary grinding or polishing.
Ultra-Lightweight Ergonomics: The Chaoqiang handheld welding head weighs less than 1kg, preventing operator fatigue during long shifts and allowing for flexible, multi-angle welding.
3-in-1 Multifunctionality: The intelligent laser head supports welding, cutting thin materials, and weld-seam cleaning (rust/paint removal) all through a single system.
Technical Parameters
Feature | Specification |
Model | 1500W (Series: CX-1500, CX-2000) |
Laser Source | Raycus |
Laser Head | Chaoqiang 3 in 1 |
Laser Wavelength | 1070 nm |
Maximum Laser Power | 1500W |
Light Output Mode | Continuous |
Fiber Length | 10m |
Fiber Bending Radius | 200mm |
Power Consumption | ≤ 5 kW |
Overall Power Stability | ±1% |
Electricity Demand | 220V / 50/60Hz (Single Phase) |
Cooling Method | Integrated Water Cooling |
Laser Water Temp Range | 25 - 28℃ |
Operating Temp Range | 10 — 40℃ |
Welding Head Weight | ≤ 1 kg |
Aiming & Positioning | Red light indication |
Package Size | L950 × W530 × H670 mm |
Detailed Configuration (Component Analysis)
Equipped with an industry-leading Raycus generator known for its ±1% overall power stability. This ensures the laser energy remains perfectly consistent, preventing burn-throughs on thin metals and ensuring complete penetration on thicker joints.
This advanced optical head is engineered for versatility. The built-in red light indicator ensures exact beam positioning before the trigger is pulled, guaranteeing accuracy even on complex corners or tight seams.
The extra-long, highly flexible 10m fiber cable allows the operator to weld large or heavy workpieces (like architectural frames or large storage tanks) without having to move the main machine chassis.
Applicable Industries & Materials
Sheet Metal Fabrication: Electrical cabinets, elevator enclosures, and HVAC ducting.
Commercial Kitchen & Bath: Seamless welding of stainless steel sinks, countertops, and range hoods.
Automotive & Machinery: High-strength, low-distortion welding for automotive panels and custom brackets.

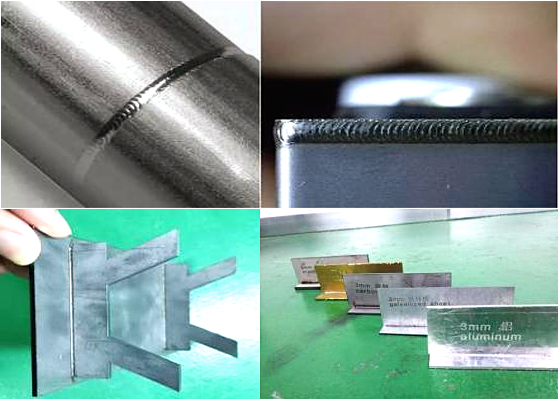

Compatible Materials: Stainless steel, carbon steel, aluminum alloys, galvanized sheet, brass, and copper.
Why Choose Superstar CNC?
Proven Manufacturing Reliability: Backed by over two decades of expertise at Jinan Jinshengxing Machinery, our welders undergo strict quality control and continuous 24-hour burn-in testing before shipment.
Plug & Play Simplicity: The machine is shipped as a complete, integrated unit. Just plug it into a 220V outlet, connect your shielding gas, and start welding.
Global Technical Support: We provide comprehensive English manuals and video tutorials on adjusting laser parameters for different metals, ensuring your team is up and running immediately.
Frequently Asked Questions (FAQ)
Q: Do I need to use shielding gas?
A: Yes. Nitrogen or Argon is required to protect the molten pool from oxidation, ensuring a bright, clean, and strong weld seam.
Q: Does this machine require welding wire?
A: The machine can perform autogenous welding (melting the two base metals together without wire) for tight-fitting joints. For joints with larger gaps, we integrate an automatic wire feeder system to supply filler metal as you weld.
Q: Is it safe for the operator?
A: Yes, but standard laser safety protocols must be followed. The machine features a safety interlock loop that only allows the laser to fire when the nozzle is touching the grounded metal workpiece. Operators must also wear the provided specialized laser safety goggles.
Revolutionize Your Welding Process
Cut your labor costs and eliminate grinding time. Contact Superstar CNC today for a factory-direct quote on the 1500W Handheld Fiber Laser Welder.
