Product Overview

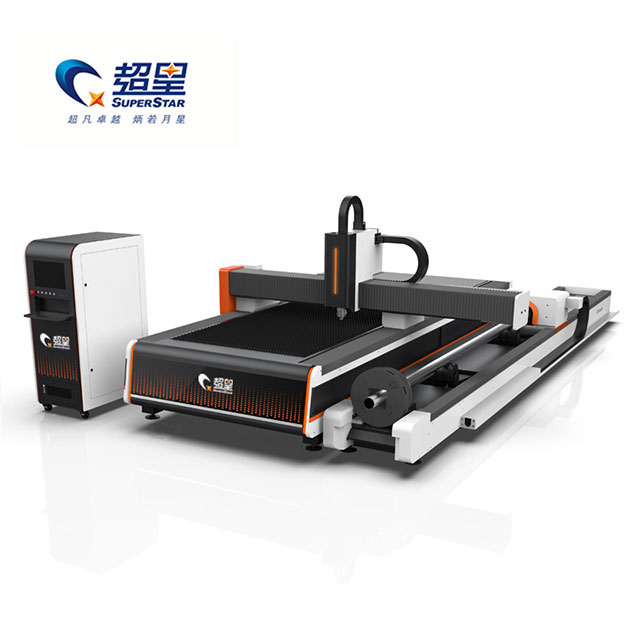

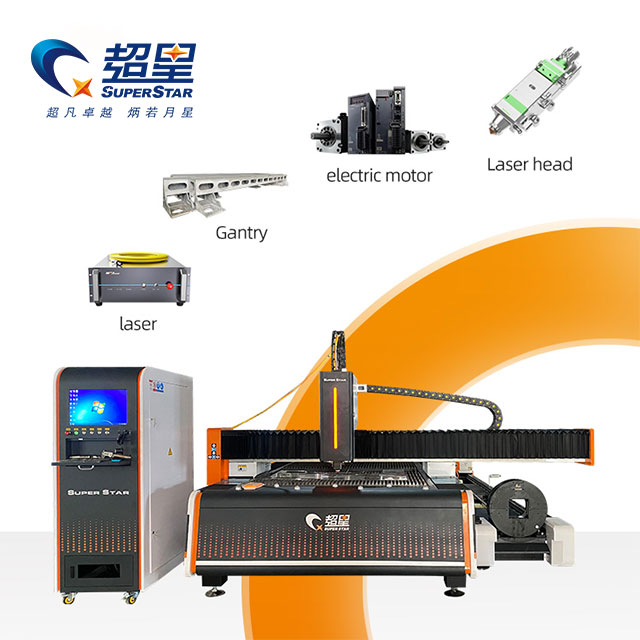

The Superstar CX-3015HR (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) solves the spatial and financial challenges of modern metal fabrication. Instead of purchasing two separate machines for flat plates and cylindrical tubes, this 2-in-1 hybrid system offers full capabilities for both.
Built on an industrial heavy-duty steel structure processed by an NC five-sided machining center, the machine guarantees absolute accuracy and long-term stability. Whether you are slicing galvanized steel plates for HVAC systems or cutting complex intersecting holes in brass pipes for furniture, the CX-3015HR delivers unmatched versatility, energy savings, and cost reduction.
Core Advantages
Dual-Processing Efficiency: Cut flat metal sheets and rotary metal tubes on the same machine. This dual-functionality significantly saves workshop space and reduces capital equipment investment.
Premium Motion Control: Equipped with an imported Japan FUJI servo drive system and an imported decelerator. This ensures lightning-fast running speeds, rapid acceleration, and strong stability on heavy materials.
Intelligent Auto-Focus: Features the advanced Raytools BM111 automatic cutting head. It dynamically adjusts the focal point to prevent piercing explosions and ensure perfectly smooth edges on varying material thicknesses.
Industrial Durability: Utilizing France Schneider electrical appliances, Germany IGUS cables, and a high-precision Germany 1.5M grinding rack, this machine is engineered to run continuously with minimal maintenance.
Technical Parameters
Feature | Specification |
Model | CX-3015HR |
Cutting Area (Plate) | 1500mm × 3000mm |
Cutting Area (Rotary Tube) | Diameter 220mm × Length 6000mm |
Laser Power | 3000W MAX |
Servo Motor | Japan FUJI (X/Y Axis 850W, Z 400W, Rotary Y Axis 1.3KW, A Axis 1.8KW) |
Controller System | Cypcut 3000S |
Laser Cutting Head | Raytools BM111 Automatic Head |
X, Y Guide Rail | Taiwan KINGTEK 25/30 |
Rack | Germany 1.5M |
Operating System | Windows 98 / XP / Vista compatible |
Interface | LCD screen with USB interface |
Supported Format | BMP, HPGL (PLT), DXF, G-CODE, DST, AI |
Working Voltage | AC 380V / 50HZ (3-Phase) |
Water Chiller | HL 3000 |

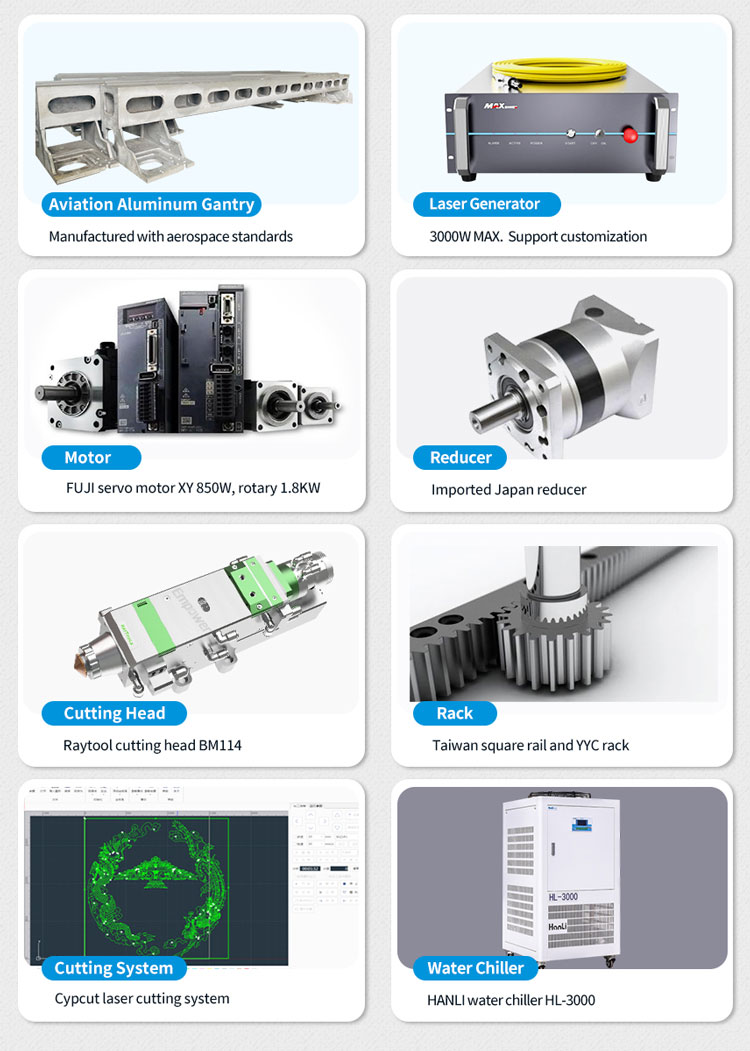

Detailed Configuration
A professional, industry-leading laser cutting control system. It offers complete functions with simple operation, including advanced nesting software for flat sheets and dedicated tube-cutting algorithms that compensate for bent or warped pipes.
High-precision linear guide rails (size 25/30) ensure the massive gantry moves smoothly and accurately over long distances, guaranteeing the long-time processing accuracy of the equipment.
The side-mounted or integrated rotary chuck system securely grips tubes up to 6 meters long and 220mm in diameter, automatically rotating them to execute complex 3D profiles, bevels, and cut-offs.
Applicable Industries & Materials
Target Industries: Agricultural machinery, automotive fabrication, metal furniture, structural engineering, fitness equipment, and architectural handrails.

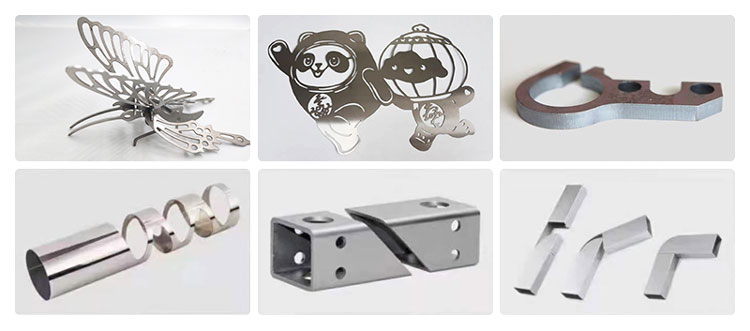

Compatible Materials: Highly suitable for fast cutting of stainless steel, carbon steel, galvanized steel, electrolytic plate, brass plate, aluminum plate, and other metal alloys (both in sheet and tube form).
Why Choose Superstar CNC?
Direct Manufacturer Value: As an original factory based in Jinan, Jinshengxing Machinery bypasses trading company markups to offer premium dual-purpose lasers at a highly competitive ROI.
Strict Quality Control: The heavy-duty machine bed is precision-milled using our in-house NC five-sided machining center, guaranteeing that the frame will never warp or deform under industrial use.
Global Export Readiness: We provide English software interfaces, worldwide standard voltage (380V), and robust remote technical support to ensure your machine operates seamlessly anywhere in the world.
Frequently Asked Questions
Q: Can this machine cut square or rectangular tubes?
A: Yes. The Cypcut 3000S system and the rotary chuck are fully capable of clamping and processing round, square, rectangular, and elliptical metal tubes.
Q: Does it require compressed air or specific gases?
A: Yes, fiber laser cutting requires assist gases to clear molten metal. Oxygen is typically used for carbon steel, Nitrogen for stainless steel/aluminum (to prevent oxidation), and high-pressure Air can be used to lower running costs on thinner sheets.
Q: Is the HL 3000 water chiller included?
A: Yes, the machine comes standard with the HL 3000 matched industrial water chiller to keep the 3000W fiber source and the Raytools cutting head at the optimal operating temperature.
Two Machines in One Small Footprint
Stop turning away tube-cutting jobs. Expand your factory's capabilities with the Superstar CX-3015HR Plate and Tube Fiber Laser Cutting Machine.
