Product Overview

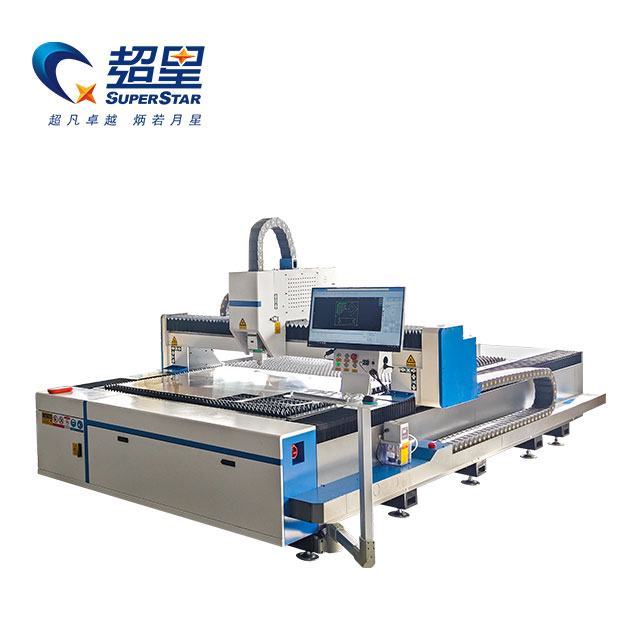

The Superstar CX-E3015 (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is specifically designed to maximize your factory's metal cutting efficiency. Moving away from traditional plasma or shearing methods, this fiber laser provides exceptionally narrow kerfs, minimal heat-affected zones, and perfectly smooth edges that require zero post-processing.
This model is built around a heavy-duty, stress-relieved frame and integrates premium control technology (Raytools X3S system) with highly responsive INOVANCE servos. The result is a machine that achieves rapid acceleration and high-speed cornering without sacrificing micrometer-level positioning accuracy.
Core Advantages
Intelligent Auto-Focus Cutting: The Raytools BM110 automatic cutting head dynamically adjusts its focal length based on material thickness. This prevents piercing explosions and ensures clean cuts on uneven or warped metal plates.
High-End Transmission System: Equipped with Taiwan KINGTEK guide rails, Taiwan YYC-M2 racks, and an Italian MOTOVARIO reducer. This combination ensures long-term wear resistance, zero-backlash motion, and ultra-smooth cutting edges.
Electric Lubrication System: Maintenance is simplified with an automated electric lubrication system that delivers the exact amount of oil needed to the rails and racks, preventing mechanical wear and extending the machine's lifespan.
Integrated Dust Collection: Features a specialized metal and high-temperature-resistant dust collector to extract harmful fumes and metallic dust from the cutting area, protecting operators and sensitive optical lenses.
Technical Parameters
Feature | Specification |
Model | CX-E3015 Metal Fiber Laser Cutting Machine |
Laser Power Options | 1500W / 2000W / 3000W (China) |
Control System | Raytools X3S (Shanghai) |
Cutting Head | RAYTOOLS BM110 Automatic Focus (Shanghai) |
Drive System | INOVANCE (Shenzhen) |
Guide Rails | KINGTEK (Taiwan) |
Gear Rack | YYC-M2 (Taiwan) |
Reducer | MOTOVARIO (Italy) |
Computer System | Industrial Control PC (Jinan) |
Water Cooler | 1500 / 2000 / 3000 matched chiller (Jinan) |
Power Distribution Cabinet | Internal (Superstar) |
Lubrication System | Electric Auto-Lubrication (China) |
Dust Collector | Metal + High Temperature Resistant Material |
Detailed Configuration
A highly intuitive, industrial-grade CNC controller designed specifically for laser cutting. It supports advanced nesting features to maximize sheet metal yield and easily imports standard DXF/DWG CAD files.
Recognized globally for industrial automation, the INOVANCE servo drives provide the rapid torque and precision control required to move the heavy gantry at high speeds while maintaining strict geometric tolerances on complex parts.
The machine includes a dedicated water chiller matched exactly to your chosen laser power (1500W-3000W). This dual-temperature system cools both the fiber source and the cutting head optics, guaranteeing stable 24/7 continuous operation.
Applicable Industries & Materials
The E-3015 is the premier cutting tool for sheet metal fabrication:
Industries Served: Advertisement marking (metal signage), sheet metal processing, electric power cabinets, hotel kitchen equipment, hardware products, electrical equipment, and precision machinery parts.
Compatible Materials: Carbon Steel, Stainless Steel, Aluminum Plates, Galvanized Iron, Brass, and Copper.
![Applicable Industries & Materials]()
Why Choose Superstar CNC?
Proven Export Quality: Since 2003, Jinan Jinshengxing Machinery has delivered high-precision industrial solutions to over 114 countries. We don't just assemble parts; we engineer complete manufacturing solutions.
Transparent Component Sourcing: We clearly list the origins of our components (Taiwan YYC, Italy Motovario, Raytools). You know exactly what tier of quality you are investing in.
Complete After-Sales Support: From remote software training on the Raytools X3S system to troubleshooting cutting parameters for specific metal thicknesses, our English-speaking engineering team ensures your machine never stops producing.
Frequently Asked Questions
Q: What thickness of steel can a 3000W laser cut?
A: A 3000W fiber laser can typically cut carbon steel up to 20mm and stainless steel up to 10mm with excellent edge quality. (Exact thickness depends on the assist gas used).
Q: Do I need an air compressor?
A: Yes. Fiber laser cutting requires an assist gas to blow away the molten metal. You can use Oxygen (for thick carbon steel), Nitrogen (for clean stainless/aluminum cuts), or high-pressure compressed air (for cost-effective thin sheet cutting).
Q: Is the E-3015 an open-bed or enclosed machine?
A: The standard E-3015 is an open-bed design, making it highly cost-effective and easy to load/unload with a forklift or crane. If your factory requires strict safety enclosures, please view our "Full Cover" laser series.
Precision Metal Cutting Made Affordable
Stop outsourcing your sheet metal work. Bring precision manufacturing in-house with the Superstar CX-E3015 Metal Fiber Laser Cutting Machine.
