Product Overview

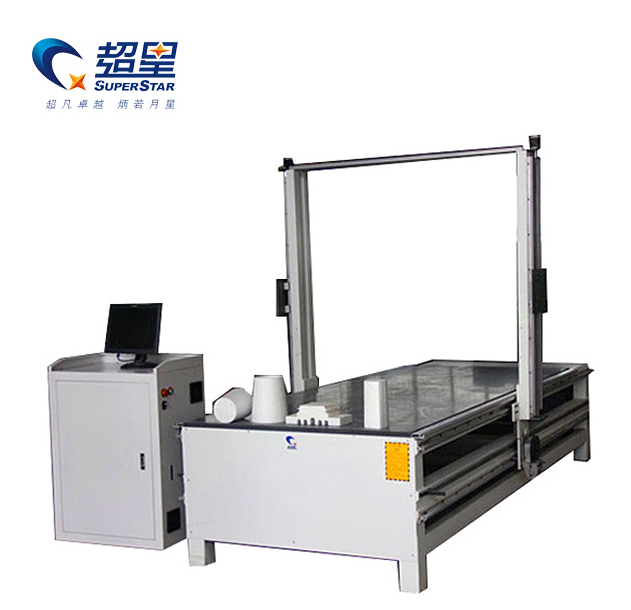

The Superstar CX-1325 Vertical Foam Cutter (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) provides a dust-free, highly precise method for shaping polystyrene foams. Because the hot wire vaporizes the foam instantly upon contact, there is no mechanical friction. This allows for incredibly intricate cuts without the material tearing or shifting.
The "Vertical" design is specifically engineered for workshops where floor space is at a premium. Operators can easily slide large EPS blocks into the vertical frame. Driven by industrial stepper/servo motors and a sophisticated PC-based controller, the machine executes smooth 2D profiles and complex 3D conical shapes with a glass-like finish.
Core Advantages
Space-Saving Vertical Frame: The upright 1300x2500mm design drastically reduces the machine's footprint compared to traditional horizontal foam cutters, making it ideal for urban workshops and signage studios.
Independent Axis Control for 3D Cuts: The left and right wire-carrier towers can move independently. This allows the wire to tilt, making it possible to cut tapered shapes, cones, and swept airplane wings.
Zero-Dust Operation: Traditional routing creates massive amounts of static foam dust. The hot wire melts the foam, resulting in a perfectly smooth, sealed edge and a completely clean working environment.
Adjustable Heat Regulation: Equipped with a professional voltage regulator. The operator can fine-tune the wire temperature to match the specific density of the foam and the cutting speed, preventing over-melting of the kerf.
Technical Parameters
(Note: Standard specifications for the CX-1325 Vertical series. Please adjust bracketed values to match your exact factory sheet).
Feature | Specification |
Model | CX-1325 Vertical Hot Wire Foam Cutter |
Working Area (X, Y) | 1300mm × 2500mm |
Wire Length (Z-Axis Depth) | 1300mm |
Machine Structure | Heavy-Duty Welded Square Steel Tube |
Cutting Tool | High-Tensile NiCr / Titanium Alloy Heating Wire |
Control System | PC-Based MACH3 / Specialized Foam CNC Controller |
Drive Motors | High-Precision Stepper Motors (Optional Servo) |
Transmission System | Linear Guide Rails + Precision Ball Screw / Rack |
Max. Cutting Speed | 2000 - 3000 mm/min |
Cutting Accuracy | ± 0.2 mm |
Heating Power | 1 KVA Voltage Regulator |
Supported Software | AutoCAD, CorelDraw, CaxaCAD (Generates G-Code) |
Working Voltage | AC 220V / 50HZ (Single Phase) |
Detailed Configuration
We use specialized alloy wires that maintain their tension even at high temperatures. The machine features an automatic tensioning spring system that keeps the wire perfectly straight as it heats and expands, ensuring accurate cuts from top to bottom.
The vertical and horizontal towers move on industrial-grade square linear guide rails. This prevents any "wobble" during operation, ensuring that the melted edge of the foam is completely uniform without ribbed lines.
The standalone control cabinet houses the computer and the voltage regulator. It keeps sensitive electronic components away from the immediate cutting area, extending their lifespan and making operation ergonomic.
Applicable Industries & Materials
Architecture & EIFS: Cutting exterior insulation, decorative window trims, pillars, and parapets.
Advertising & Signage: Crafting giant 3D letters, logos, and exhibition displays that are lightweight and easy to paint.
Theme Parks & Film: Rapid prototyping of large-scale props, theatrical stage sets, and artificial rocks.
Packaging: Creating custom, tight-fitting foam inserts for shipping fragile industrial equipment.
Compatible Materials: EPS (Expanded Polystyrene / Styrofoam), EPP, and XPS foams.
Why Choose Superstar CNC?
Factory-Direct Manufacturing: Built from the ground up by Jinan Jinshengxing Machinery, ensuring rigorous welding, milling, and assembly standards that trading companies cannot guarantee.
User-Friendly Software: The included software makes converting 2D DXF files into foam-cutting toolpaths incredibly simple, requiring minimal operator training.
Global Export Readiness: We provide English manuals, wiring suited for your country's power grid, and responsive remote technical support.
Frequently Asked Questions
Q: Can this machine cut thick, high-density foam?
A: Yes, but the cutting speed and wire temperature must be adjusted. Denser foams require a higher temperature and a slower feed rate to allow the wire to melt through the material without breaking.
Q: Does it produce toxic smoke?
A: Melting EPS does produce slight fumes. While not as hazardous as burning plastics, we highly recommend installing the machine in a well-ventilated area or using an overhead fume extraction hood.
Q: How do I create a 3D taper cut?
A: Using the specialized software, you input a "root" profile and a "tip" profile. The machine's independent axes will automatically move at different speeds to transition smoothly between the two shapes.
Maximize Space, Minimize Dust
Bring precision 3D foam cutting into your workshop without sacrificing floor space. Upgrade to the Superstar CX-1325 Vertical Hot Wire Cutter.
