Product Overview

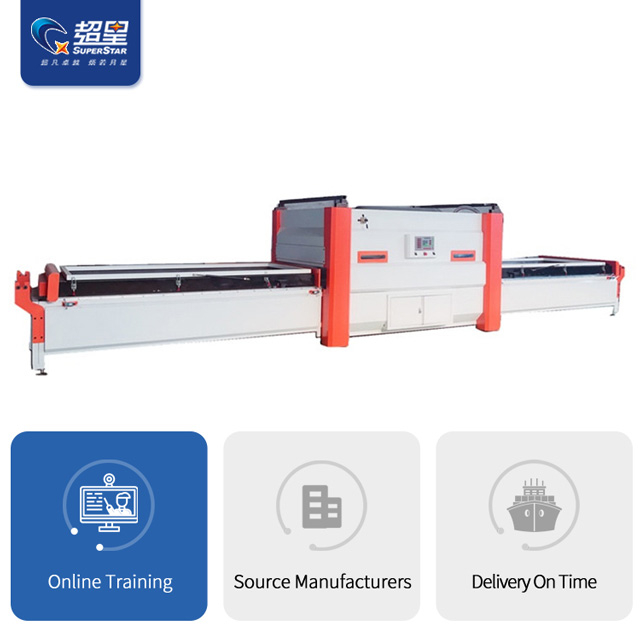

The Superstar CX-3000E (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the ultimate surface-finishing solution for modern cabinetry and panel furniture factories. After your CNC router carves 3D designs into MDF panels, the CX-3000E takes over to apply the final decorative layer.
By creating a complete vacuum seal and applying uniform heat, the machine stretches and presses PVC foil tightly over every contour, groove, and edge of the wood in a single pass. The integration of a smart PLC touch screen removes the guesswork from the operation, allowing users to save specific heating and vacuum parameters for different film thicknesses and colors, ensuring consistent, high-yield production.
Core Advantages
Intelligent PLC Touch Screen: Replaces outdated button panels with a digital interface. Operators can easily set, save, and recall precise heating times, temperatures, and vacuum pressure formulas for various materials (e.g., high-gloss PVC vs. matte wood grain).
Flawless 3D Wrapping: The high-capacity vacuum pump quickly evacuates air from the chamber (achieving negative pressure ≥-0.1Mpa), ensuring the film perfectly hugs sharp internal corners and deep routing profiles without "bridging" or tearing.
Uniform Heat Distribution: Utilizes premium aluminum strip or quartz infrared heating tubes. This guarantees an even temperature across the entire 3-meter working bed, preventing the "snowflake" effect or weak adhesion caused by cold spots.
High-Efficiency Workflow: The automated operating cycle handles the pre-heating, vacuum pressing, and cooling stages seamlessly, drastically reducing manual labor and cycle times compared to manual laminators.
Technical Parameters
Feature | Specification |
Model | CX-3000E |
Brand | Superstar CNC |
Max Working Area (L×W) | [e.g., 3000 mm × 1300 mm] |
Max Processing Height | [e.g., 60 mm - 80 mm] |
Control System | PLC Touch Screen (English/Chinese) |
Applicable PVC Thickness | 0.1 mm - 0.6 mm |
Max Heating Temperature | Up to [250°C - 300°C] |
Vacuum Pump Capacity | [e.g., 63 m³/hr or 100 m³/hr] |
Working Method | Automatic / Manual override |
Heating Method | Upper Heating (Infrared / Aluminum) |
Working Voltage | AC 380V / 50HZ / 3-Phase |
Detailed Configuration & Component Analysis
Equipped with an industrial-grade, oil-lubricated rotary vane vacuum pump. It provides rapid and stable air extraction, which is critical when laminating thick, high-gloss PVC films that require sudden, strong downward pressure before the material cools.
While primarily used for air-cutting PVC film, the machine frame is designed to accept a high-elasticity silicone membrane. This allows you to press natural wood veneers and thermal transfer films onto your routed panels.
The heating hood is constructed with high-density thermal insulation materials. This locks the heat inside the pressing area, reducing electricity consumption and keeping your factory floor cooler.
Applicable Industries & Materials

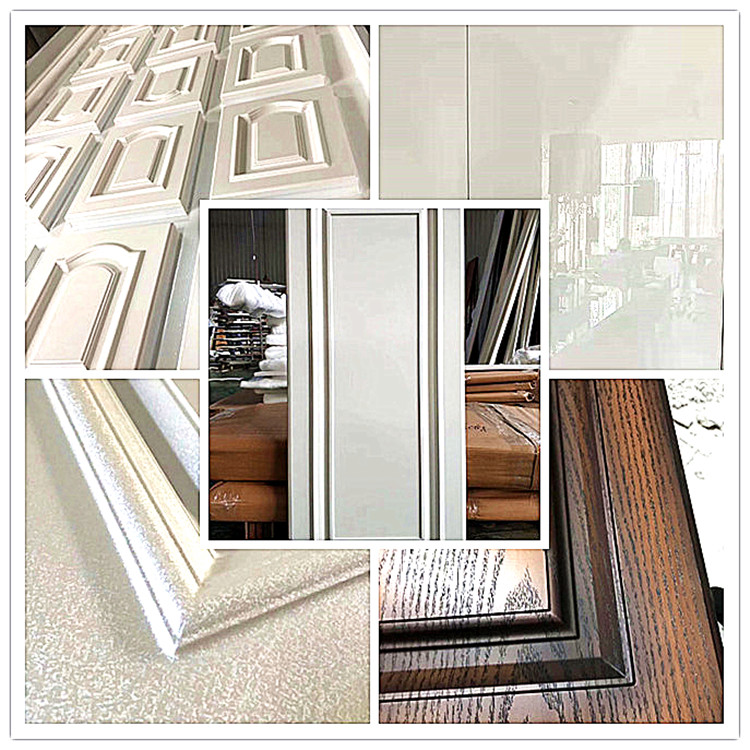

Kitchen & Bathroom Cabinetry: Wrapping 3D routed MDF shaker doors, drawer fronts, and vanity panels.
Interior Doors & Furniture: Manufacturing seamless wardrobe doors, sliding doors, and contoured office desktops.
Acoustic & Decorative Wall Panels: Laminating textured PVC or leather foils onto decorative interior wall claddings.
Compatible Films: PVC Foil, PET Foil, Natural Wood Veneer (with silicone membrane), and Heat Transfer Films.
Compatible Substrates: MDF, Plywood, Particleboard, and Solid Wood.
Why Choose Superstar CNC?
Seamless Production Line Integration: As a manufacturer of CNC Routers, Edge Banders, and Vacuum Presses, Jinshengxing Machinery ensures that your laminating machine perfectly matches the output speed and quality of your cutting equipment.
User-Friendly Operation: Our PLC systems are pre-programmed with intuitive interfaces, allowing new operators to learn the laminating process in hours, not weeks.
Reliable Export Quality: We utilize internationally recognized electrical components (e.g., CHNT, Schneider) to ensure your machine runs safely and continuously, backed by our global technical support network.
Frequently Asked Questions (FAQ)
Q: Can this machine handle high-gloss PVC film without scratching it?
A: Yes. High-gloss PVC is sensitive to temperature and pressure. The CX-3000E's precise PLC controller allows you to fine-tune the heating curve and vacuum speed, ensuring the film stretches smoothly without losing its mirror finish or developing texture marks.
Q: Do I need a silicone membrane to press PVC?
A: No, for standard PVC film lamination, the machine operates without a silicone membrane (the PVC itself acts as the membrane). The silicone membrane is only required when you are pressing breathable materials like natural wood veneer.
Q: How many cabinet doors can I press at once?
A: The [3000mm x 1300mm] bed size allows you to arrange multiple doors simultaneously. Depending on the size of the doors (leaving a standard 30mm-50mm gap between each for the film to stretch), you can easily press 10 to 15 standard kitchen cabinet doors in a single 3-5 minute cycle.
Master the Art of 3D Surface Finishing
Eliminate peeling edges and slow production times. Deliver perfectly wrapped, high-end cabinet doors with the Superstar CX-3000E PVC Laminating Machine.
Request a Factory-Direct Quote Today
