Product Overview

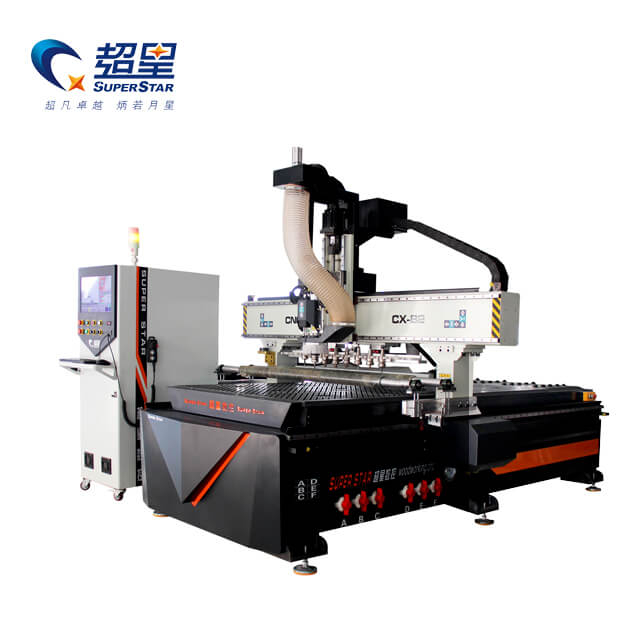

The Superstar CX-B2 Automatic ATC Router (manufactured by Jinan Jinshengxing Machinery Manufacture Co., Ltd.) is the workhorse of modern "whole house" custom furniture manufacturing. In traditional CNC routing, manual tool changes cause massive production bottlenecks. The CX-B2 eliminates this by integrating a high-speed automatic tool changer, allowing the machine to seamlessly transition between cutting boards, routing hinge pockets, and engraving 3D door profiles without stopping.
The foundation of the CX-B2 is its industrial-grade, seamless welded steel bed. Following welding, the entire frame undergoes a strict high-temperature tempering and aging treatment. This process relieves internal structural stress, ensuring the machine frame remains perfectly rigid and completely free of deformation over years of high-speed, continuous operation.
Core Advantages
V-Industrial LED Design: Features a newly designed aesthetic model that incorporates industrial LED lighting, providing clear visibility of the cutting area while presenting a sleek, modern addition to your factory floor.
Disc-Type Automatic Tool Changer: The ATC magazine travels with the gantry, allowing the 9KW HQD spindle to swap between multiple cutters, drills, and V-bits in seconds, regardless of its position on the table.
Taiwan Syntec Control System: This premium industrial controller provides an intuitive, highly stable interface. It easily processes complex nesting G-code from major design software, ensuring flawless execution of intricate cabinet and door designs.
High-Adhesion Vacuum Table: Equipped with a powerful vacuum pump, the multi-zone table provides extreme suction power, capable of holding down full-sized MDF sheets or aggressively gripping small, irregularly shaped offcuts without the need for mechanical clamps.
Technical Parameters
Feature | Specification |
Model | CX-B2 Automatic ATC CNC Router |
Working Area (X × Y × Z) | 1300 mm × 2500 mm × 200 mm |
Spindle Motor | 9KW HQD ATC Air Cooling Spindle |
Control System | Taiwan SYNTEC Control System |
Drive Motors | Yaskawa Servo Motor and Drivers |
Transmission (X/Y) | Helical Gear Rack |
Transmission (Z) | Precision Ball Screw |
Guide Rails | Taiwan Square Rails |
Repeating Location Accuracy | ± 0.05 mm |
Traveling Positioning Accuracy | ± 0.05 mm |
Max Rapid Travel Rate | 25,000 mm/min |
Max Working Speed | 30,000 mm/min |
Machine Table | Vacuum Table with Vacuum Pump |
Gross Weight (G.W.) | 1500 KGS |
Detailed Component Analysis
This high-frequency spindle provides massive low-end torque for aggressive roughing cuts on solid wood, while maintaining the high RPMs necessary for clean, chip-free edge profiling on melamine and delicate acrylics.
Imported Yaskawa servo motors provide higher precision, faster acceleration, and greater holding torque than standard stepper motors, ensuring the heavy gantry moves smoothly and stops with exact ±0.05mm precision.
The X and Y axes utilize a helical gear rack transmission. The angled teeth ensure continuous multi-tooth engagement, which dramatically reduces vibration, lowers operating noise, and delivers smoother curved cuts compared to standard straight racks.
Applicable Industries & Materials
Custom Furniture & Carpentry: High-volume nesting, sizing, and grooving for wardrobes, kitchen cabinets, sliding doors, and modular office furniture.
Wooden Door Manufacturing: Precision routing of 3D relief designs, raised panels, and hardware cutouts on solid wood, MDF, and composite doors.
Mold Making: Milling complex 2D and 3D shapes from wood, high-density foam, and resins.
Compatible Materials: MDF, Plywood, Particleboard, Solid Wood, Acrylic, PVC, and soft metals.
Why Choose Superstar CNC?
Factory-Direct Value: As the original manufacturer, we supply industrial-grade ATC machines featuring premium components (Syntec, Yaskawa, HQD) without the massive markup of European brands.
Built for Production: At 1,500 KG with a heavily tempered bed, the CX-B2 is engineered to withstand the rigorous demands of 24/7, multi-shift factory environments.
Frequently Asked Questions (FAQ)
Q: Can this machine cut both full sheets and small pieces of wood?
A: Yes. The specialized vacuum table provides immense absorption power. You can easily secure a standard 4x8 ft panel, and the vacuum zones will also tightly grip smaller, cut-out pieces, preventing them from shifting during the routing process.
Q: Why use Yaskawa Servo motors instead of stepper motors?
A: Yaskawa servo motors form a "closed-loop" system. They constantly report their exact position back to the Syntec controller. If a heavy cut slows the gantry down, the motor instantly compensates, guaranteeing you never "lose steps" or ruin a piece of material, which can happen with cheaper stepper motors.
